Chapter 2
2-39
2.4.1.2 Overview
0023-2522
iPF760 / iPF750
The printer electrical system consists of the main controller PCB and power supply PCB which are mounted on the rear side of the printer, the carriage PCB and
printhead which are mounted in the carriage, and other electrical components such as the operation panel, sensors, and motors.
The main controller PCB manages the image data processing and the entire electrical system, and controls relay PCBs and driver functions.

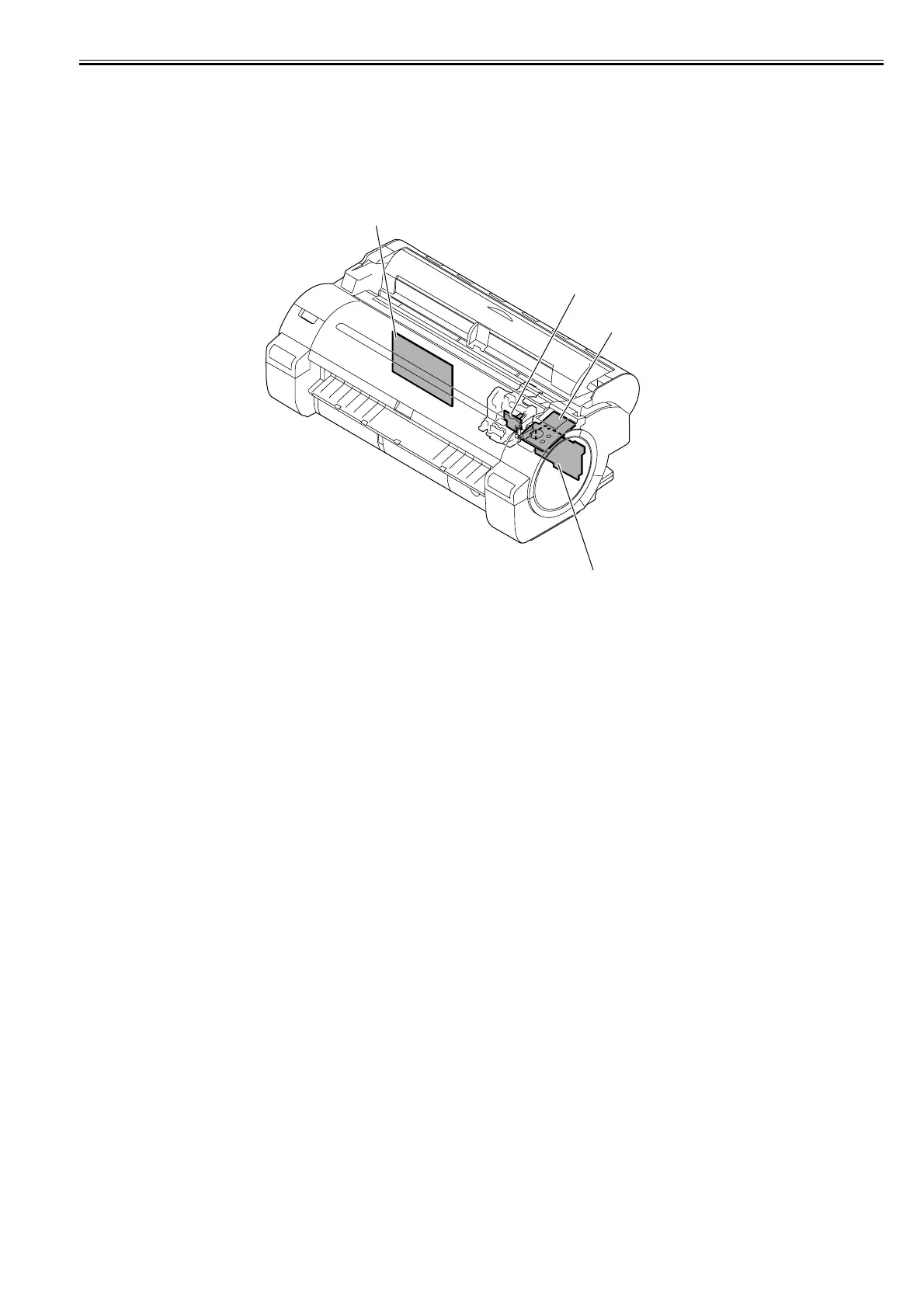

F-2-30
Power Supply
Main Controller PCB
Operation Panel PCB
Carriage PCB
To Next Page
