Chapter 1
1-66
1.7.1.3 Electric Parts
0023-1464
iPF765 / iPF755
The electric parts of the printer are activated when the printer is connected to the AC power supply.
At the rear and left/right side of the printer are the main controller, power supply, HDD, and interface connector. The carriage PCB is incorporated in the carriage
unit, and the operation panel is on the upper right top cover.
When serving the printer with the cover removed, be extremely careful to avoid electric shock and shorting electrical devices.

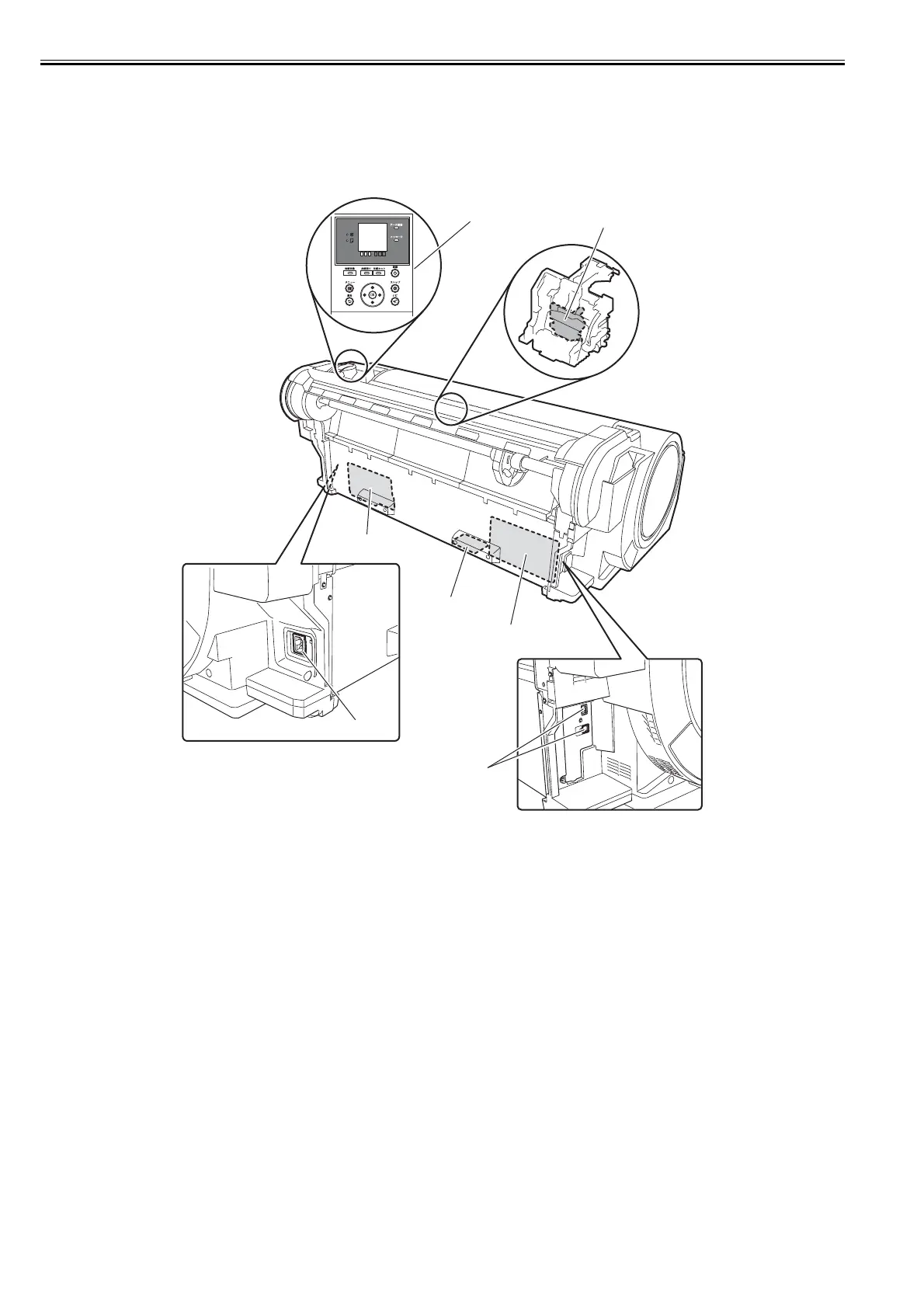

F-1-42
Carriage PCB
Operation Panel
Power Supply PCB
AC Inlet
Hard Disk Drive
Main Controller PCB
Interface Connector
