4.3.9 Purge Unit
0023-3215
iPF750 / iPF755
a) Purge Unit

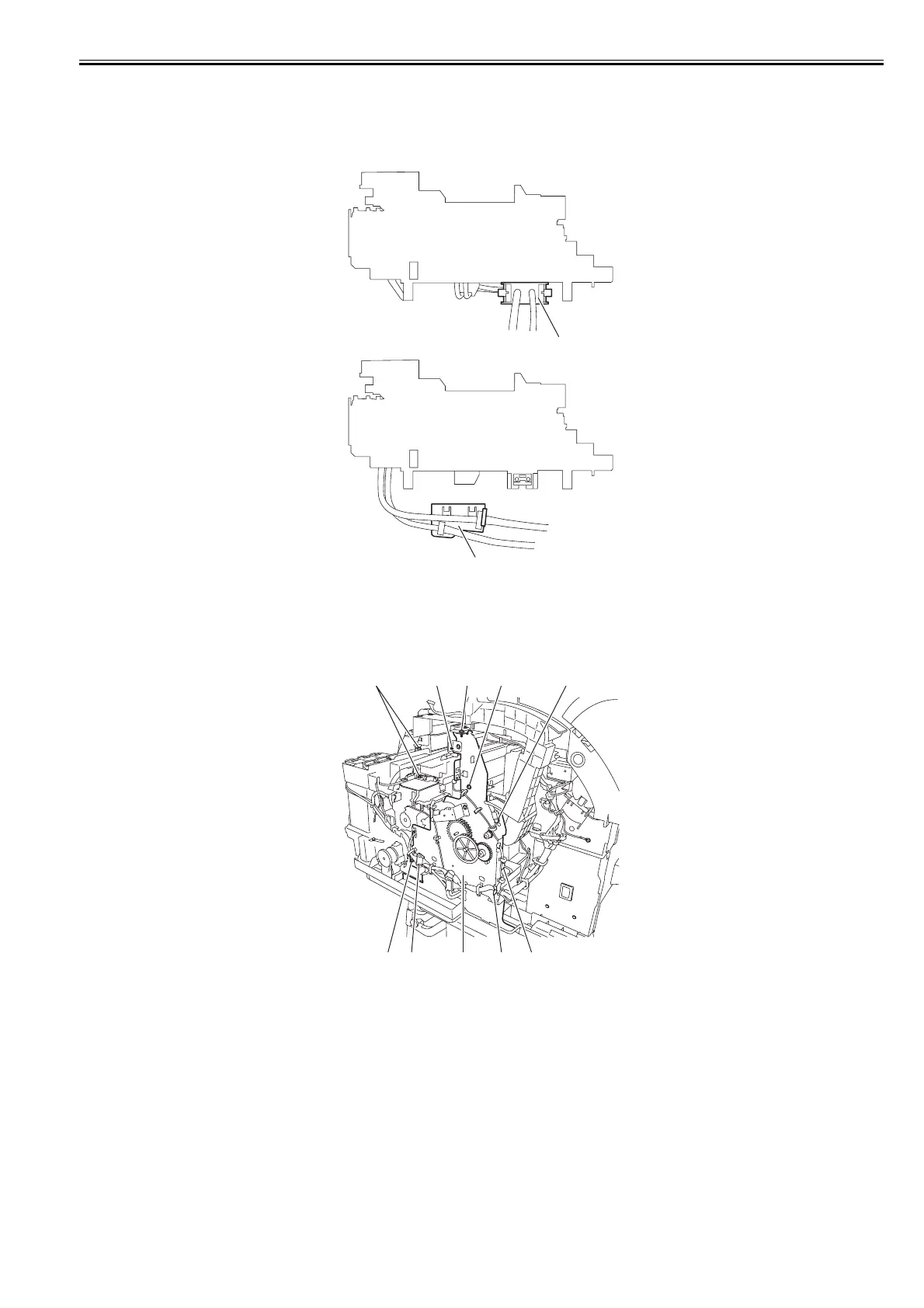

According to the shape of the joint that shown in the following figure, refer to each procedure.
F-4-58
Removing the Purge Unit (when the joint [A] has been attached.)
1) Turn off the power, and then move the carriage onto the platen. Refer to "Disassembly/Reassembly > Points to Note on Disassembly and Reassembly > Opening
the Cap/Moving the Wiper Unit".
2) Remove the right cover.
3) Remove five screws [1] and disconnect five connectors [2], and then remove the cable from the cable guide to remove the right side plate unit [3].
F-4-59
[B]
[A]
[2] [1] [1] [1] [2]
[1] [2] [3] [1] [2]
To Next Page
