1.5.4 Rear
0020-5451
iPF810

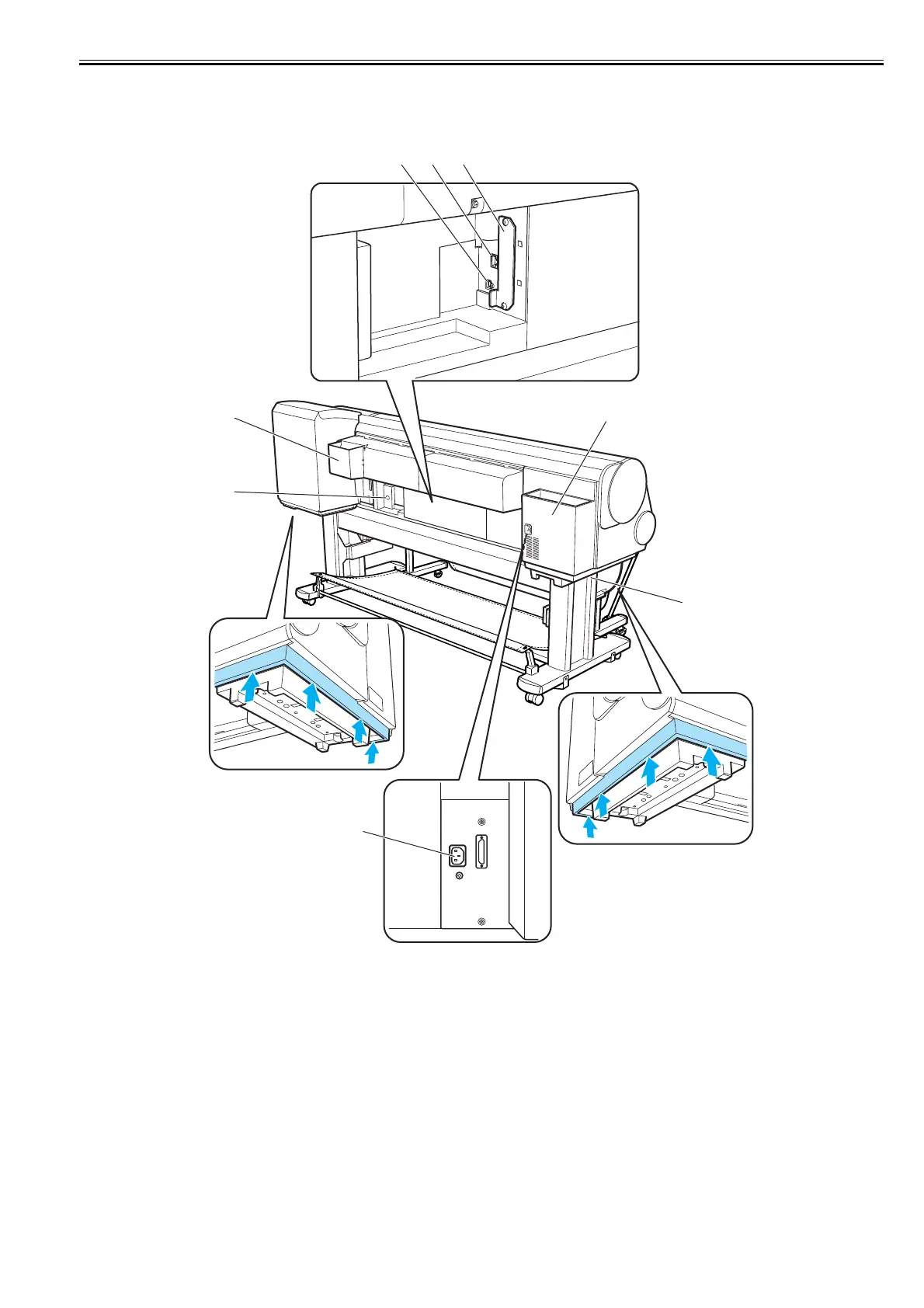

F-1-24
[1] Expansion board slot
Mount an IEEE1394 (FireWire) Expansion board (option) into this slot.
[2] Ethernet connector
Insert an Ethernet cable into this connector. A lamp will turn on if the Ethernet cable is connected properly and the printer is ready to communicate.
[3] USB port
Insert a USB cable into this port. Hi-Speed USB-ready.
[4] Manual pocket
Have the printer manual stowed in this pocket.
[5] Media take-up unit connector
Insert the cable a media take-up unit (option) into this connector.
[6] Power Supply Connector
Connect the power cord to this connector.
[7] Carrying handle
The carrying handle is located on both left and right sides of the bottom. Allow a team of six persons to carry the printer.
[8] Accessory pocket
Have assembly tools, roller holder attachments and so on stowed in this pocket.
[3]
[2]
[1]
[4]
[5]
[6]
[7]
[8]
