Canon iPF800 Series - Page 87

Chapter 1
1-73

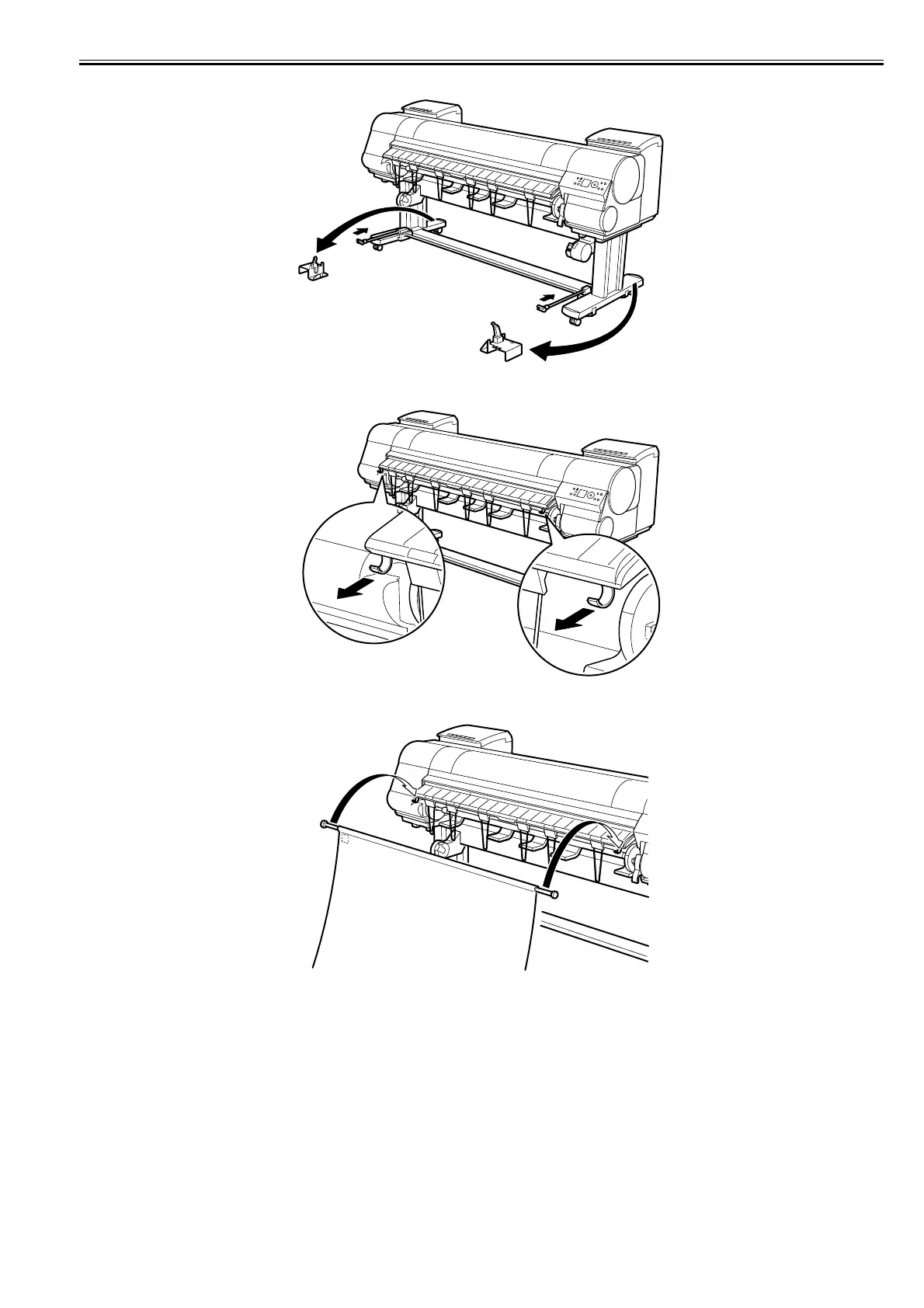

3) Store the left and right Basket Rods. Next, remove the Rod Holder Adapter, leaving the Rod Holder attached, and put it in front of the printer.
F-1-33
4) Pull out the Basket Hooks from the left and right side of the Ejection Guide.
F-1-34
5) Attach the Basket Rod to the Basket Hooks so that the white tag of the Basket Cloth is on the left side.
F-1-35
