Chapter 2
2-4
2.1.3 Before Starting the Work (230V CENV)
0017-7151
iR2025 / iR2030
1-1 Points to Make Before Installation
Be sure to go through the following before starting the work:
1) If you are installing the machine after moving it from a cold to warm location, be sure to leave the machine unpacked for at least 2 hours so that the machine is
fully used to the site temperature, thus avoiding image faults caused by condensation. (The term "condensation" refers to the formation of droplets of water on
the surface of a metal object brought in from a cold to warm place, i.e., as the result of the rapid cooling of the moisture (vapor) around the object.)
2) The machine weighs a maximum of about 50 kg. Be sure to work in a group of 2 persons when lifting it.

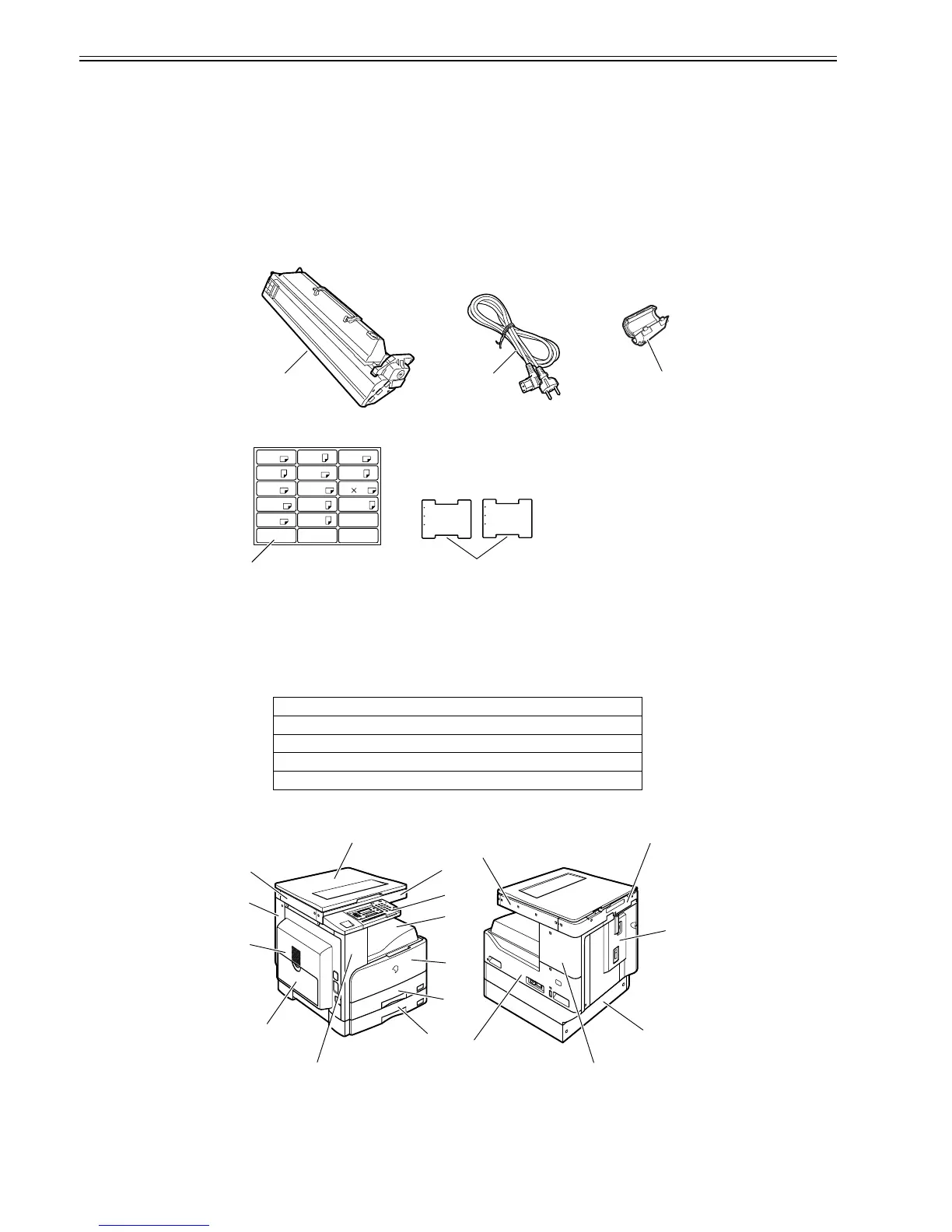

1-2 Checking the Contents
Check to be sure that none of the following contents is missing:
F-2-5
Check the documentation and CD against the following table:
1-3 Names of Parts
F-2-6
[1] Drum unit ---1 [4] Cassette size label ---2
[2] Power cable ---1 [5] Caution sheet ---2
[3] Ferrite core ---1
Operators manual: User's Guide
Operators manual: Network Quick Start Guide
Drum Unit Replacing Guide
Operators manual CD-ROM
Driver/Utility CD-ROM (UFR)
[1] Copyboard cover*1 [10] Left door
[2] Reader front cover [11] Left cover (rear)
[1] [2]
[5]
Bitte stellen Sie den Hebel zum
Erkennen des Papierformats auf
das neue Format ein.
Set the size detector lever to the
new paper size.
Placer I’indicateur de format sur
le nouveau format.
FU5-xxxx
Bitte stellen Sie den Hebel zum
Erkennen des Papierformats auf
das neue Format ein.
Set the size detector lever to the
new paper size.
Placer I’indicateur de format sur
le nouveau format.
FU5-xxxx
A3
A5
B5
8K
LTR
A4
B5
11 17
STMT
A4
B4
16K
LTR
LGL
[4]
[3]
[1]
[2]
[7]
[8] [17]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[18]
[3]
[4]
[5]
[6]
To Next Page
