PREPARATION

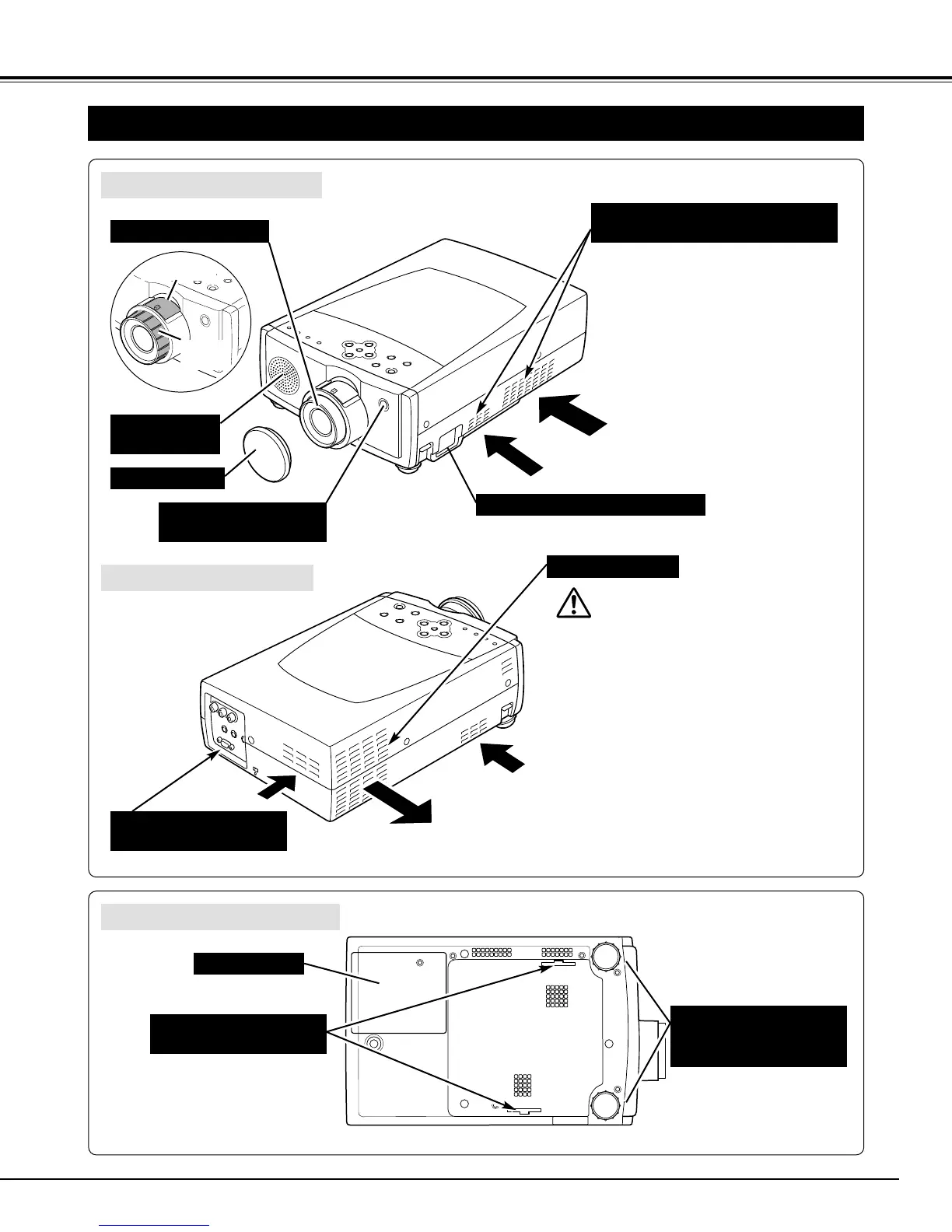

NAME OF EACH PART OF THE PROJECTOR
These Air Intake Vents
should not be blocked.
BOTTOM OF THE CABINET
BACK OF THE CABINET
POWER CORD CONNECTOR
FRONT OF THE CABINET
LAMP COVER
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
PROJECTION LENS
SPEAKER
(Monaural)
INFRARED
REMOTE RECEIVER
LENS COVER
This projector is equipped with cooling
fans for protection from overheating.
Pay attention to the following to ensure
proper ventilation and avoid a possible
risk of fire and malfunction.
● Do not cover the vent slot.
● Keep sides and rear clear of any
obstructions. Obstructions may block
cooling air.
AIR INTAKE VENTS
(Both sides and Rear)
TERMINALS
AND CONNECTORS
AIR INTAKE VENTS
AND AIR FILTERS
ZOOM RING
FOCUS
RING
HOT AIR EXHAUSTED !
Air blown from the exhaust vent is hot.
When using or installing the projector, the
following precautions should be taken.
● Do not put a flammable object near this vent.
● Keep the side grills at least 3’ (1m) away
from any object, especially heat-sensitive
object.
● Do not touch this area, especially screws
and metallic parts. This area will become
hot while the projector is used.
This projector detects the internal
temperature and automatically controls the
operating power of the Cooling Fans.
EXHAUST VENT
