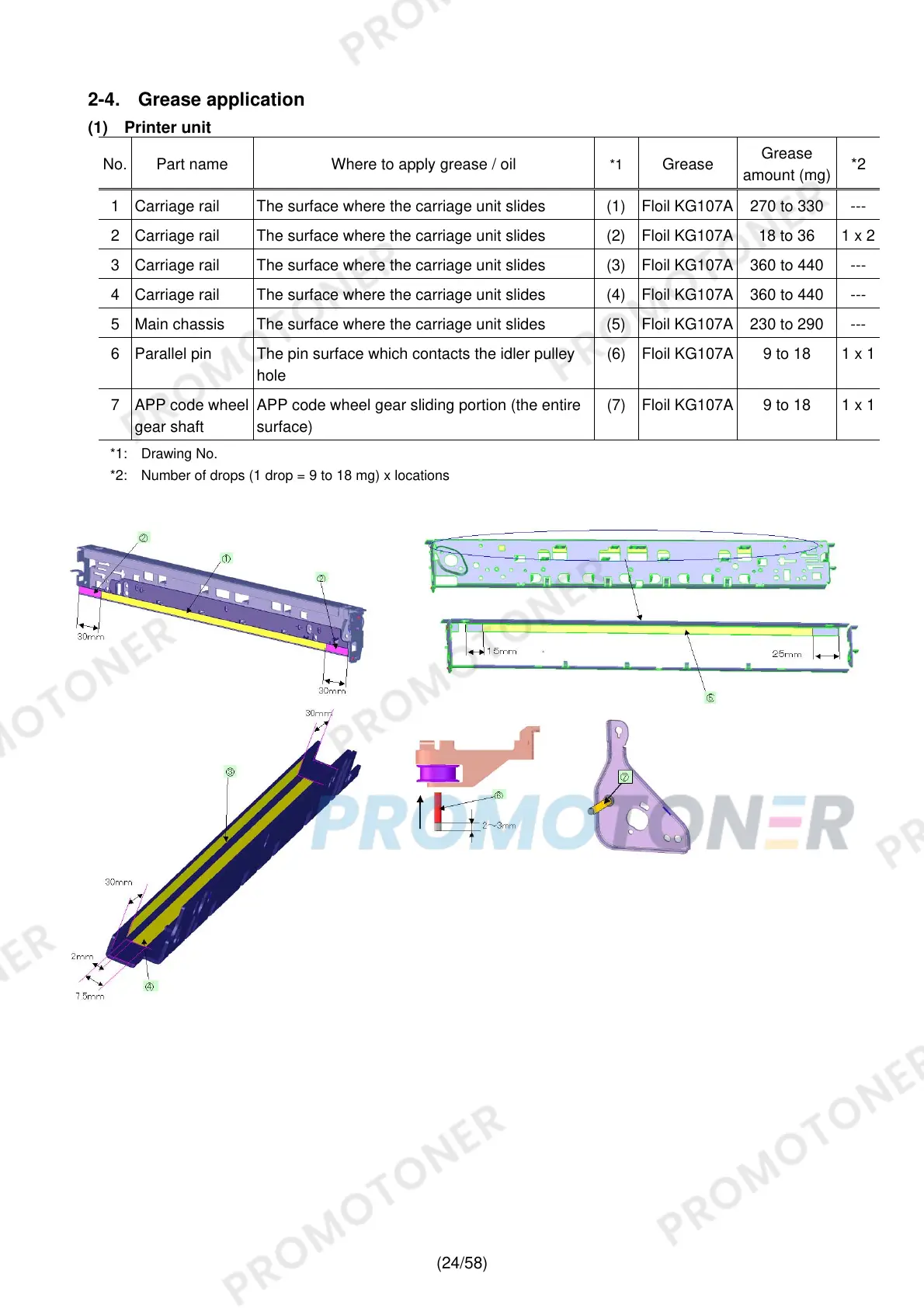

2-4. Grease application
(1) Printer unit
No. Part name Where to apply grease / oil
*1
Grease
Grease
amount (mg)
*2
1 Carriage rail The surface where the carriage unit slides (1) Floil KG107A 270 to 330 ---
2 Carriage rail The surface where the carriage unit slides (2) Floil KG107A 18 to 36 1 x 2
3 Carriage rail The surface where the carriage unit slides (3) Floil KG107A 360 to 440 ---
4 Carriage rail The surface where the carriage unit slides (4) Floil KG107A 360 to 440 ---
5 Main chassis The surface where the carriage unit slides (5) Floil KG107A 230 to 290 ---
6 Parallel pin The pin surface which contacts the idler pulley
hole
(6) Floil KG107A 9 to 18 1 x 1
7
A
PP code wheel
gear shaft
APP code wheel gear sliding portion (the entire
surface)
(7) Floil KG107A 9 to 18 1 x 1
*1: Drawing No.
*2: Number of drops (1 drop = 9 to 18 mg) x locations

