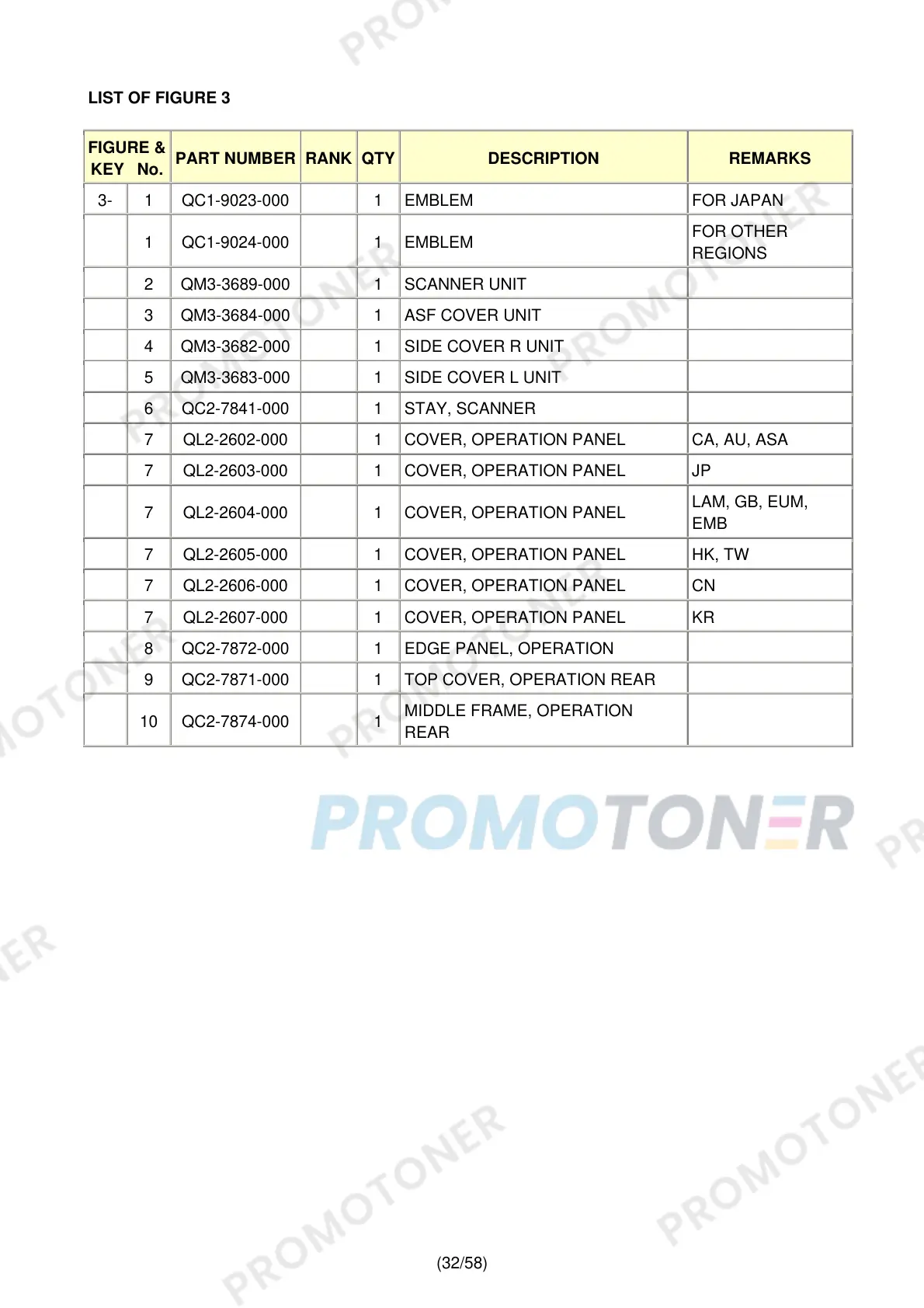

LIST OF FIGURE 3
FIGURE &
KEY No.
PART NUMBER RANK QTY DESCRIPTION REMARKS
3- 1 QC1-9023-000 1 EMBLEM FOR JAPAN
1 QC1-9024-000 1 EMBLEM
FOR OTHER
REGIONS
2 QM3-3689-000 1 SCANNER UNIT
3 QM3-3684-000 1 ASF COVER UNIT
4 QM3-3682-000 1 SIDE COVER R UNIT
5 QM3-3683-000 1 SIDE COVER L UNIT
6 QC2-7841-000 1 STAY, SCANNER
7 QL2-2602-000 1 COVER, OPERATION PANEL CA, AU, ASA
7 QL2-2603-000 1 COVER, OPERATION PANEL JP
7 QL2-2604-000 1 COVER, OPERATION PANEL
LAM, GB, EUM,
EMB
7 QL2-2605-000 1 COVER, OPERATION PANEL HK, TW
7 QL2-2606-000 1 COVER, OPERATION PANEL CN
7 QL2-2607-000 1 COVER, OPERATION PANEL KR
8 QC2-7872-000 1 EDGE PANEL, OPERATION
9 QC2-7871-000 1 TOP COVER, OPERATION REAR
10 QC2-7874-000 1
MIDDLE FRAME, OPERATION
REAR
