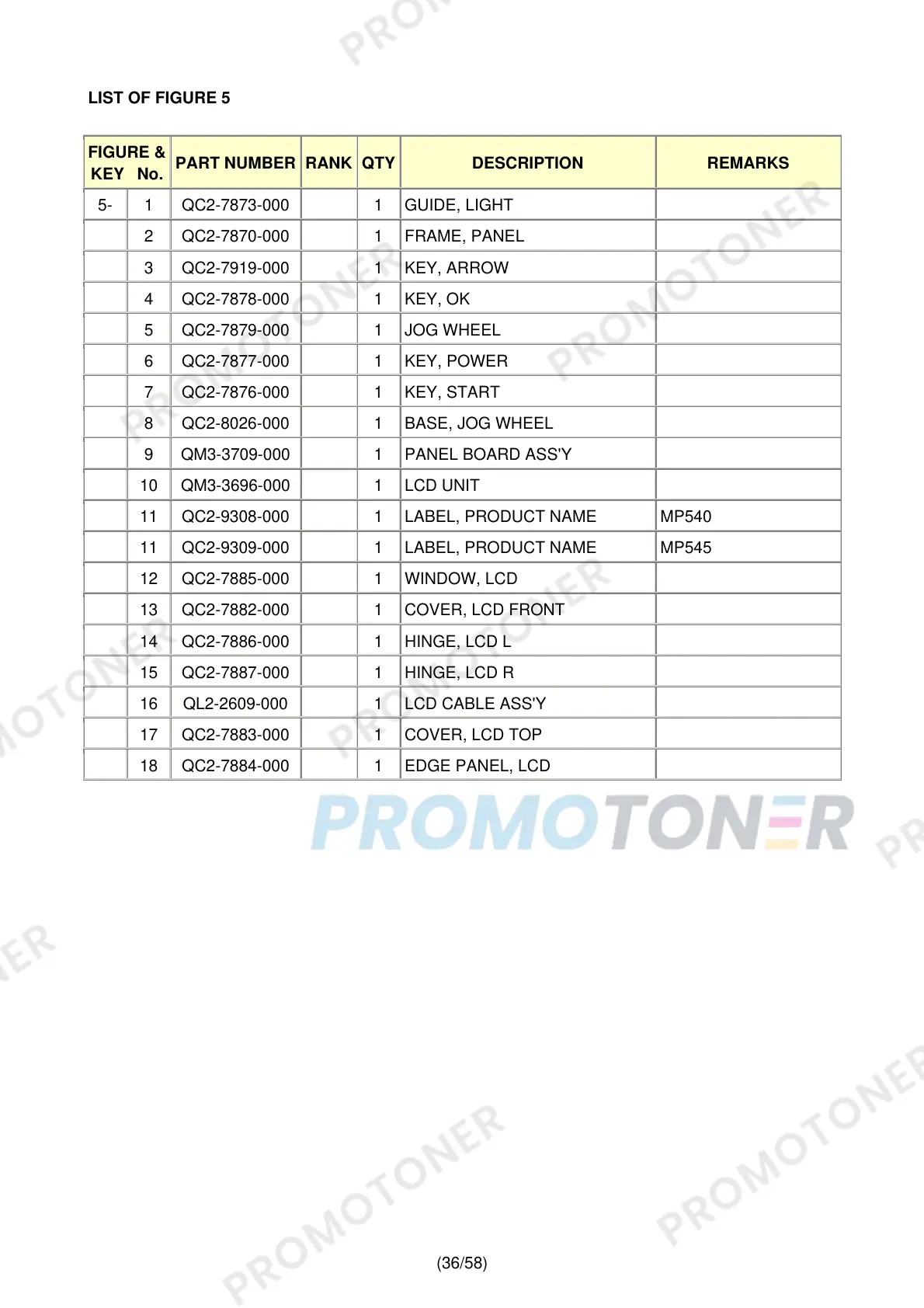

LIST OF FIGURE 5
FIGURE &
KEY No.
PART NUMBER RANK QTY DESCRIPTION REMARKS
5- 1 QC2-7873-000 1 GUIDE, LIGHT
2 QC2-7870-000 1 FRAME, PANEL
3 QC2-7919-000 1 KEY, ARROW
4 QC2-7878-000 1 KEY, OK
5 QC2-7879-000 1 JOG WHEEL
6 QC2-7877-000 1 KEY, POWER
7 QC2-7876-000 1 KEY, START
8 QC2-8026-000 1 BASE, JOG WHEEL
9 QM3-3709-000 1 PANEL BOARD ASS'Y
10 QM3-3696-000 1 LCD UNIT
11 QC2-9308-000 1 LABEL, PRODUCT NAME MP540
11 QC2-9309-000 1 LABEL, PRODUCT NAME MP545
12 QC2-7885-000 1 WINDOW, LCD
13 QC2-7882-000 1 COVER, LCD FRONT
14 QC2-7886-000 1 HINGE, LCD L
15 QC2-7887-000 1 HINGE, LCD R
16 QL2-2609-000 1 LCD CABLE ASS'Y
17 QC2-7883-000 1 COVER, LCD TOP
18 QC2-7884-000 1 EDGE PANEL, LCD
