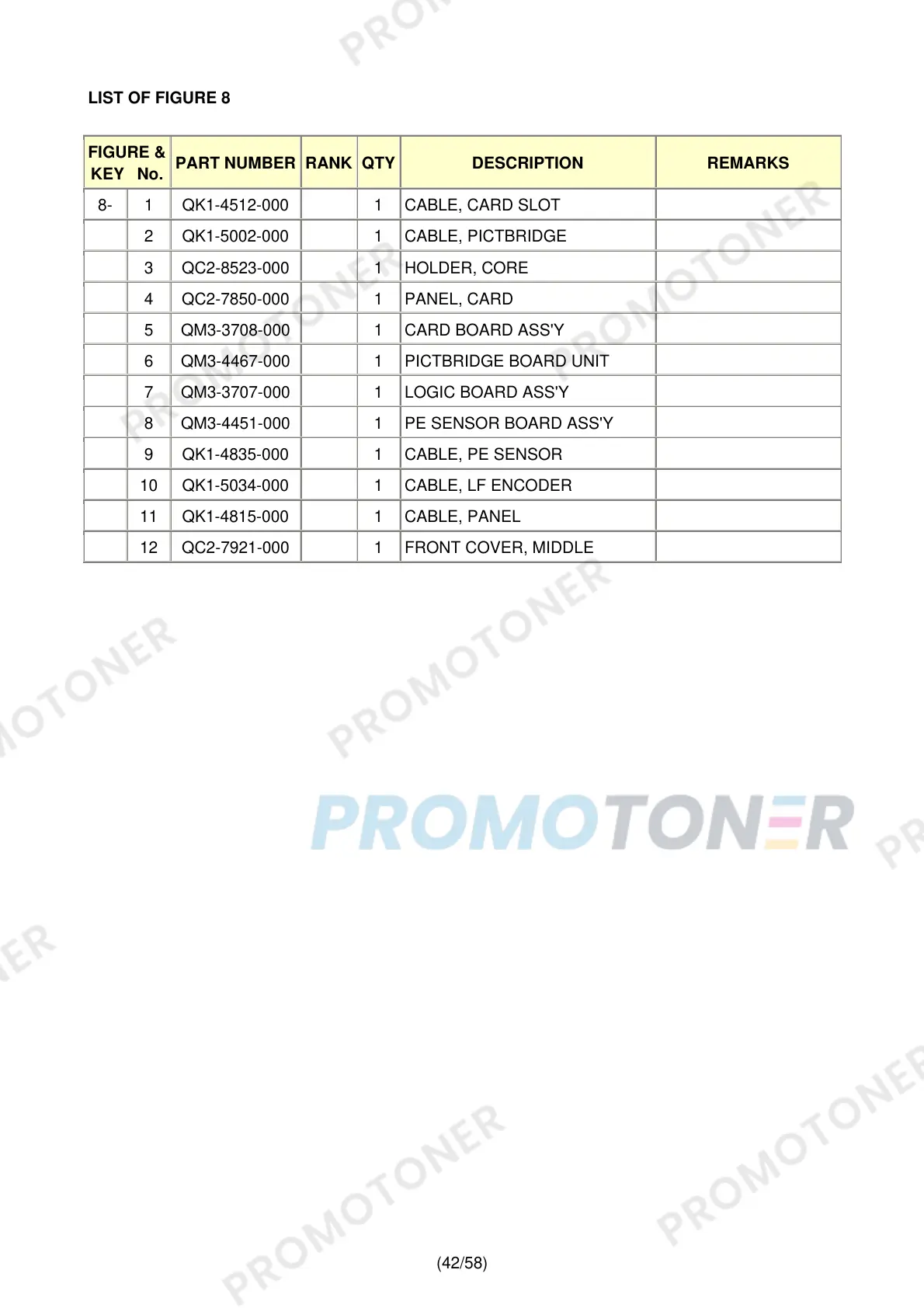

LIST OF FIGURE 8
FIGURE &
KEY No.
PART NUMBER RANK QTY DESCRIPTION REMARKS
8- 1 QK1-4512-000 1 CABLE, CARD SLOT
2 QK1-5002-000 1 CABLE, PICTBRIDGE
3 QC2-8523-000 1 HOLDER, CORE
4 QC2-7850-000 1 PANEL, CARD
5 QM3-3708-000 1 CARD BOARD ASS'Y
6 QM3-4467-000 1 PICTBRIDGE BOARD UNIT
7 QM3-3707-000 1 LOGIC BOARD ASS'Y
8 QM3-4451-000 1 PE SENSOR BOARD ASS'Y
9 QK1-4835-000 1 CABLE, PE SENSOR
10 QK1-5034-000 1 CABLE, LF ENCODER
11 QK1-4815-000 1 CABLE, PANEL
12 QC2-7921-000 1 FRONT COVER, MIDDLE
