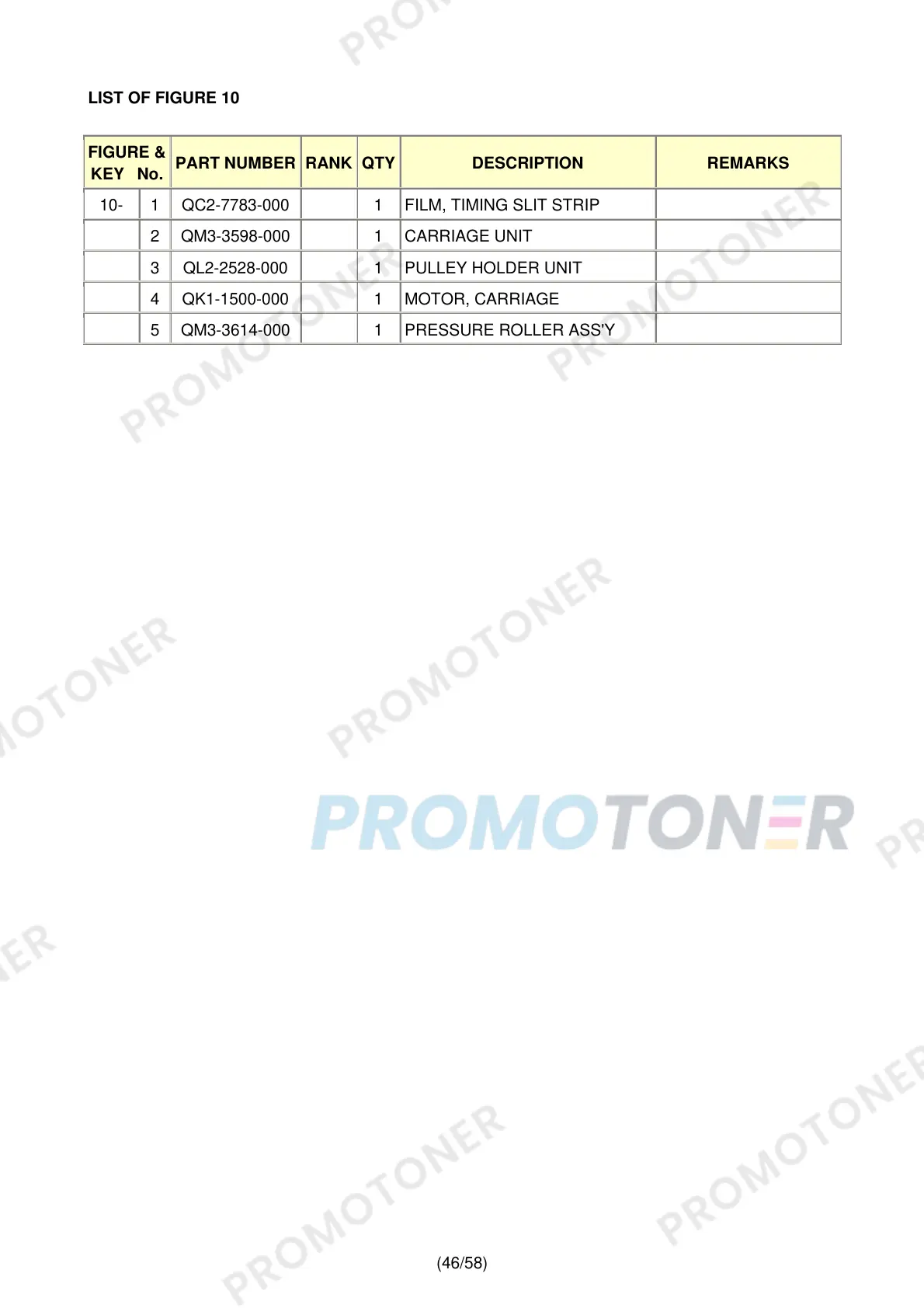

LIST OF FIGURE 10
FIGURE &
KEY No.
PART NUMBER RANK QTY DESCRIPTION REMARKS
10- 1 QC2-7783-000 1 FILM, TIMING SLIT STRIP
2 QM3-3598-000 1 CARRIAGE UNIT
3 QL2-2528-000 1 PULLEY HOLDER UNIT
4 QK1-1500-000 1 MOTOR, CARRIAGE
5 QM3-3614-000 1 PRESSURE ROLLER ASS'Y
