Canon MP970 - Page 24

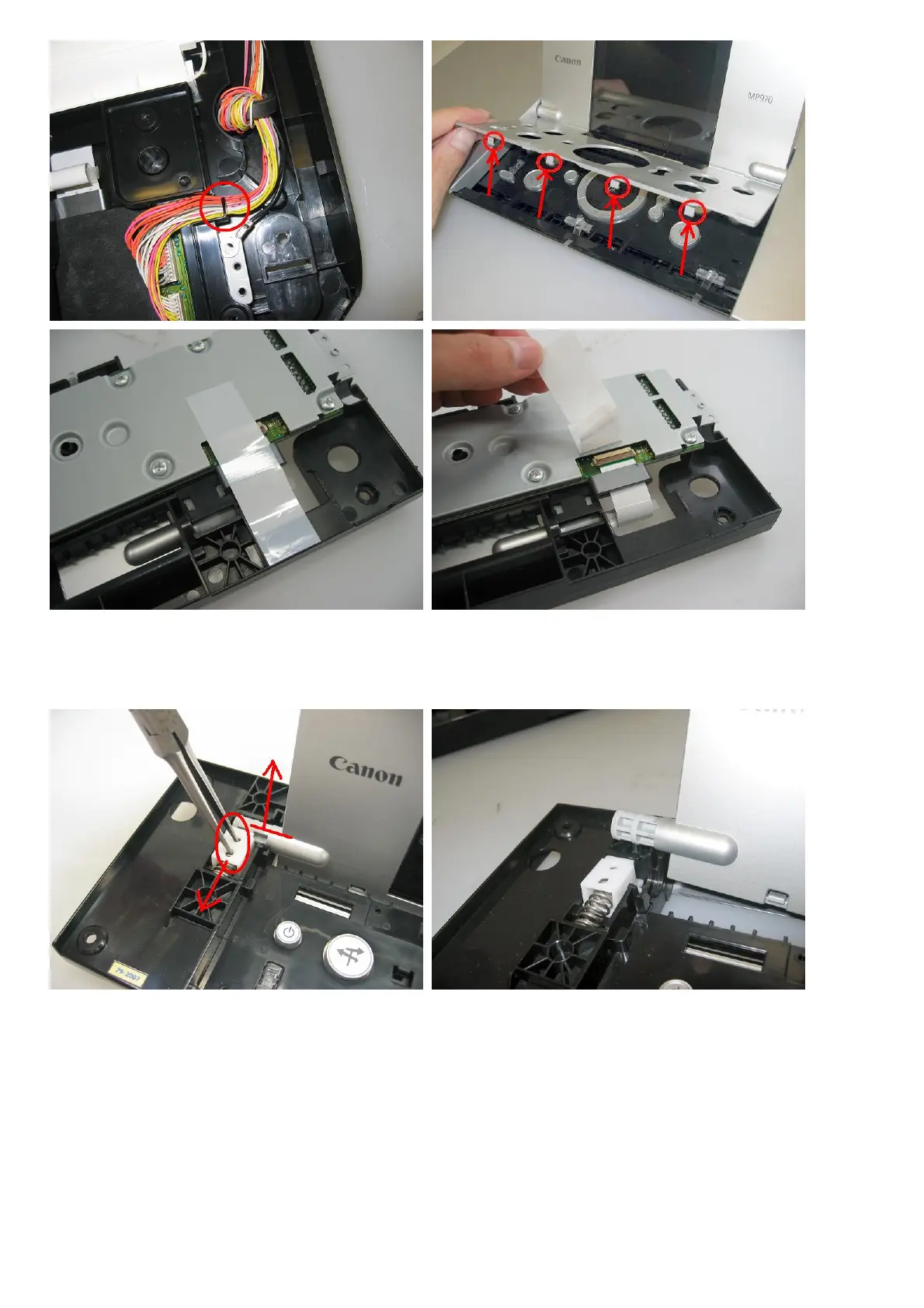

3) Remove the LCD and panel board from the panel frame.
<Hold the LCD hinge by inserting the both noses of a long-nose plier into the holes in the hinge. Then, slide the
hinge against the spring to remove the LCD from the panel frame.>
<Remove the panel chassis, and panel board (8 screws).>
22 / 45
