PC-D320/PC-D340/FAX-L400 Chapter 3: Assembly and Disassembly
3-15

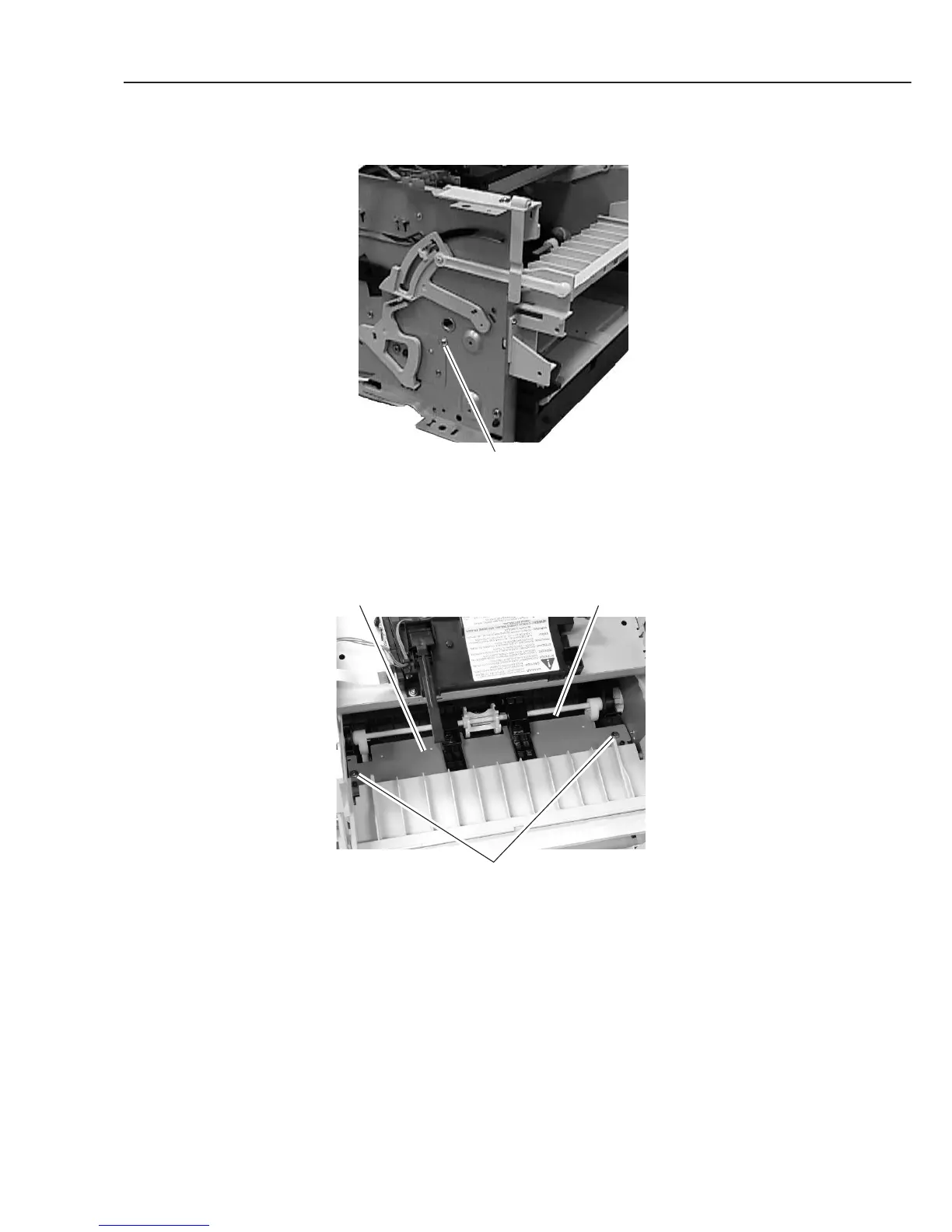

(15) Remove the screw (l).
Figure 3-18 Recording Section 8
(16) Remove the 2 screws (m), and detach the front stay ass’y and the manual paper feed
guide plate.
Figure 3-19 Recording Section 9
l
m
Front stay ass'y Manual paper feed guide plate
To Next Page
