Canon PowerShot SD1200 IS User Manual

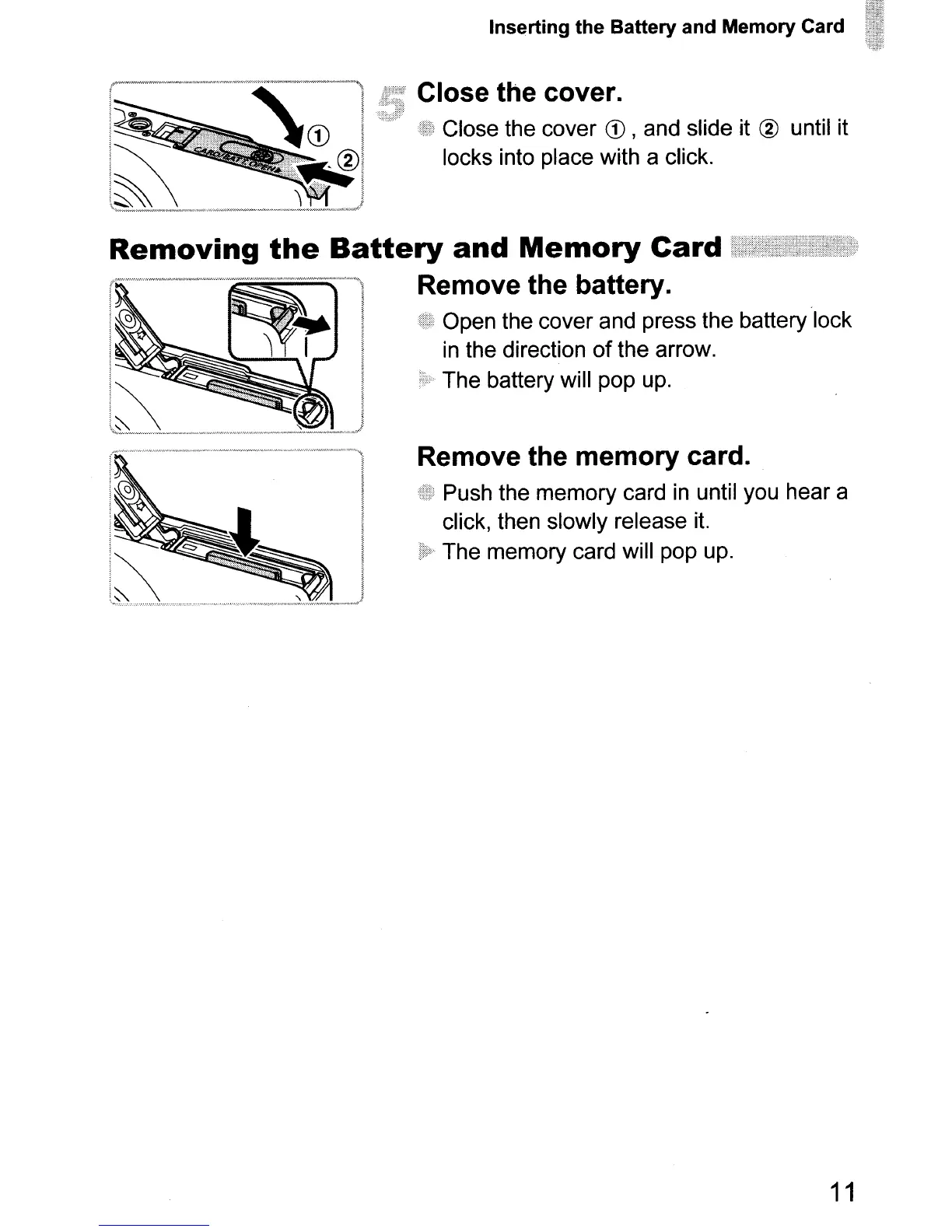

Inserting the Battery and Memory Card
Close the cover.
Close the cover CD, and slide it ® until it
locks into place with a click.
Removing the Battery and Memory Card
Remove the battery.
Open the cover and press the battery lock
in the direction of the arrow.
The battery will pop up.
Remove the memory card.
Push the memory card in until you hear a
click, then sloWly release
it.
The memory card will pop up.
11

Canon PowerShot SD1200 IS Specifications

General

Megapixel	10 MP
Camera type	Compact camera
Sensor type	CCD
Image stabilizer	Yes
Image sensor size	1/2.3 \
Maximum image resolution	3648 x 2736 pixels
Digital zoom	4 x
Optical zoom	3 x
Combined zoom	12 x
Focal length range	6.2 - 18.6 mm
Digital SLR	No
Dimensions (WxDxH)	88.5 x 21.8 x 54.8 mm
Aperture range (F-F)	2.8 - 4.9
Camera shutter speed	15 - 1/1500 s
Effective sensor resolution	10000000 pixels
Focal length (35mm film equivalent)	35 - 105 mm
Focus	TTL
Focus adjustment	Auto
Normal focusing range	0.3 - ∞ m
Macro focusing range (tele)	0.3 - 0.5 m
Macro focusing range (wide)	0.03 - 0.5 m
Flash modes	auto, Flash off, Red-eye reduction, Slow synchronization
Flash range (tele)	0.3 - 2.4 m
Flash range (wide)	0.3 - 4.2 m
Flash recharging time	10 s
Compatible memory cards	mmc, sd, sdhc
Motion JPEG frame rate	30 fps
Video formats supported	AVI
Maximum video resolution	640 x 480 pixels
Display diagonal	2.5 \
Display resolution (numeric)	230000 pixels
USB version	2.0
Product color	Orange
Scene modes	beach, Children, Fireworks, Night, party (indoor), Portrait, Sunset, Underwater
Image editing	resizing, rotating
Photo effects	black&white, Neutral, Sepia, Vivid
White balance	auto, Cloudy, custom modes, daylight, Fluorescent, Tungsten
Camera playback	movie, single image, slide show
Battery type	NB-6L
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	AV, USB
Light metering	Centre-weighted, Spot

Weight and Dimensions

Depth	21.8 mm
Width	88.5 mm
Height	54.8 mm
Weight	120 g
