Canon VIXIA HF R400 User Manual

- Changing the shooting mode.

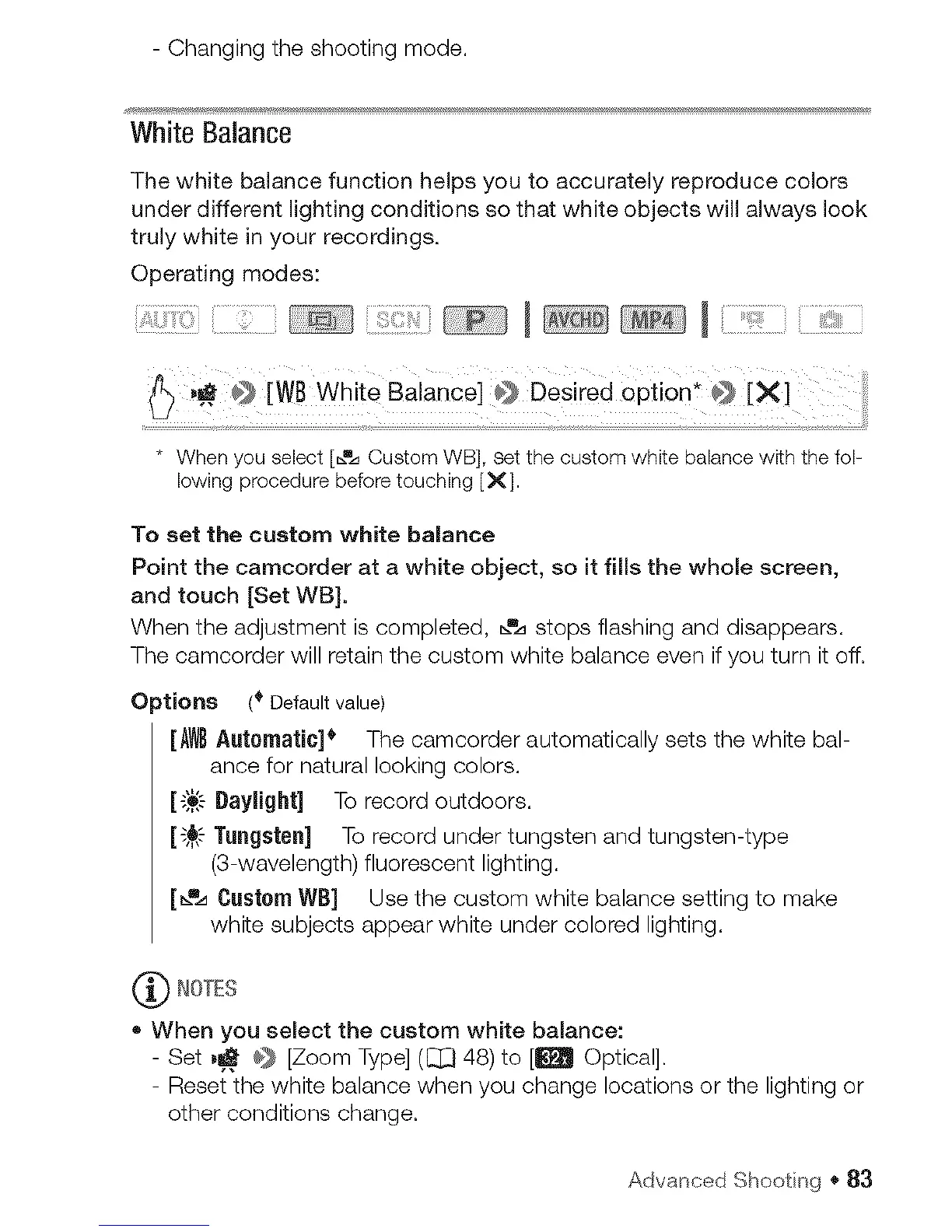

WhiteBalance
The whke balance function helps you to accurately reproduce colors
under different lighting conditions so that wMte objects will always look
truly whke in your recordings.
Operating modes:
1
* When you select [_a_ Custom WB], set the custom white balance with the foF
lowing procedure before touching [X].
To set the custom white balance
Point the camcorder at a white object, so it fills the whole screen,
and touch [Set WB].
When the adjustment is completed, _.%stops flashing and disappears.
The camcorder will retain the custom white balance even if you turn it off.
Options (_ Default value)
[AWBAutomaUc]* The camcorder automatically sets the white bal-
ance for natural looking colors,
['_.'- Daylight] To record outdoors,
[',,6,-'-Tungsten] To record under tungsten and tungsten-type
(3-wavelength) fluorescent lighting,
[_._.aCustom WB] Use the custom white balance setting to make
white subjects appear white under colored lighting,
(_ NOTES
• When you select the custom white balance:
- Set %d #_ [Zoom Type] (CJ_48) to [_ Optical].
- Reset the white balance when you change locations or the lighting or
other conditions change.
Advanced Shoot ng * 83

Canon VIXIA HF R400 Specifications

General

Sensor type	CMOS
Total megapixels	3.28 MP
Optical sensor size	1/4.85 \
Effective megapixels (image)	2.07 MP
Digital zoom	1060 x
Optical zoom	32 x
Image stabilizer	Yes
Focal length range	2.8 - 89.6 mm
Interchangeable lens	No
Maximum aperture number	4.5
Minimum aperture number	1.8
Focal length (35mm film equivalent)	32.5 - 1723 mm
Memory slots	1
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	32 GB
Internal storage capacity	- GB
Focus adjustment	Auto
Normal focusing range	0.01 - 1 m
Light exposure modes	Manual
Shutter speed (photo)	0.002 s
Shutter speed (video)	0.0005 s
Display diagonal	3 \
Display resolution (numeric)	230000 pixels
Viewfinder type	Not available
Camcorder type	Handheld camcorder
Image processor	DIGIC DV IV
Minimum illumination	0.4 lx
Product color	Black
Capture modes	FXP, LP, MXP
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Video formats supported	AVCHD, MP4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC
Still image resolution(s)	1920 x 1080
Audio system	Dolby Digital
PCM digital audio	16-bit/48 kHz
Audio formats supported	AAC, AC3, LC-AAC, MP4
Microphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Battery type	BP-718
Battery voltage	3.6 V
Battery capacity	1900 mAh
Battery life (max)	- h
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	-5 - 45 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	0 - 60 %

Weight and Dimensions

Depth	116 mm
Width	53 mm
Height	57 mm
Weight	285 g
