Instruction manual C2101BG 11
Please keep this instruction manual for future reference
589mm
50mm
mi n 5 50mm
56 0mm
50 mm
54 0mm
593mm
578mm
55 5mm
25mm
5m m
59 5mm
20 mm
11 6mm
INSTALLATION
IMPORTANT:
Isolate your oven from the electrical supply before performing installation or maintenance.
Installation should be carried out according to the instructions by a professionally qualied
person only.
The manufacturer declines all responsibility for any damage to persons, animals or materials due
to incorrect installation.

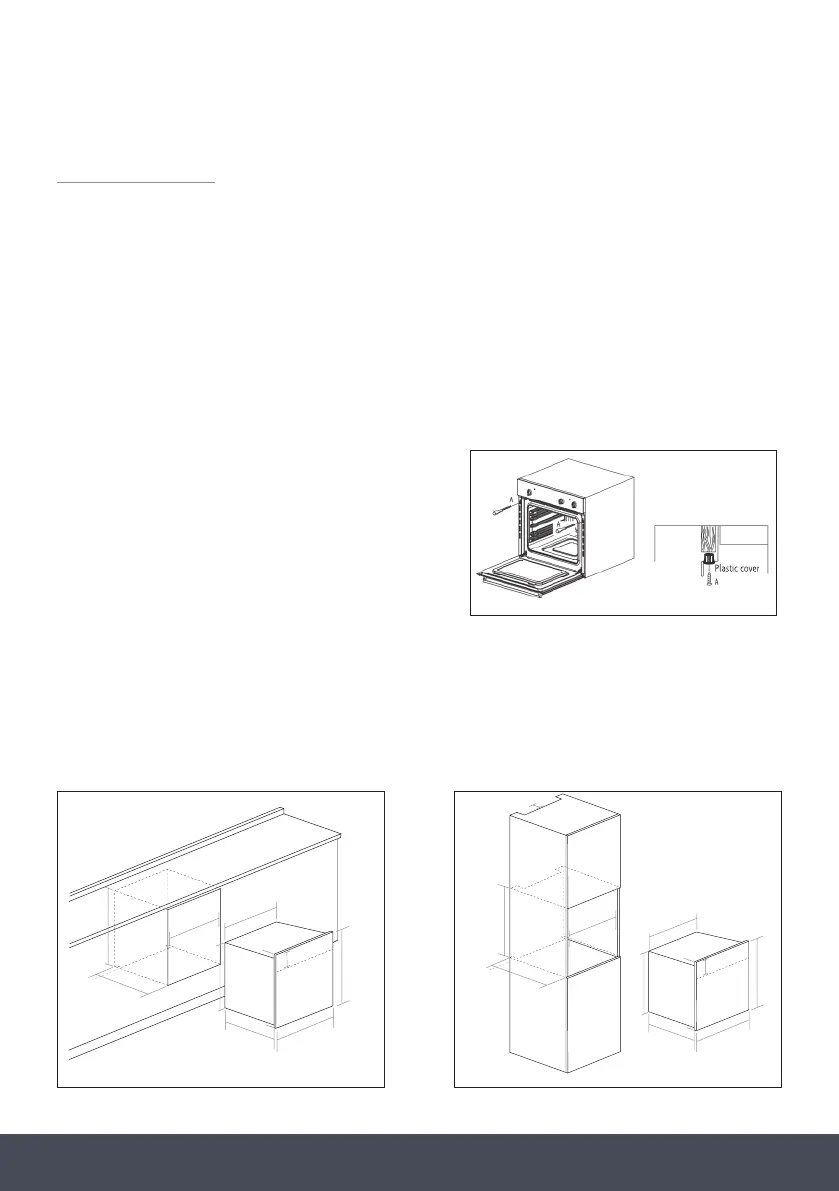

FITTING THE APPLIANCE
Fit the appliance into its surround (beneath a
worktop or above another appliance in a tall housing)
by inserting screws and plastic covers into the 2 holes
(A - g.3) that can be seen in the frame of the oven
when the door is open.
For the most efcient air circulation, the oven
should be tted according to the dimensions
shown in g. 1 & 2.
The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which
the oven is tted should have a gap of at least 50mm at the rear for ventilation (g.4 & g.5).
54 0mm
593mm
578mm
589mm
mi n 550mm
56 0mm
55 5mm
25mm
5m m
59 5mm
50 mm
20 mm
11 6mm
Fig. 1
Fig. 2
Fig. 3
