Instruction manual C2101BG20 Please keep this instruction manual for future reference

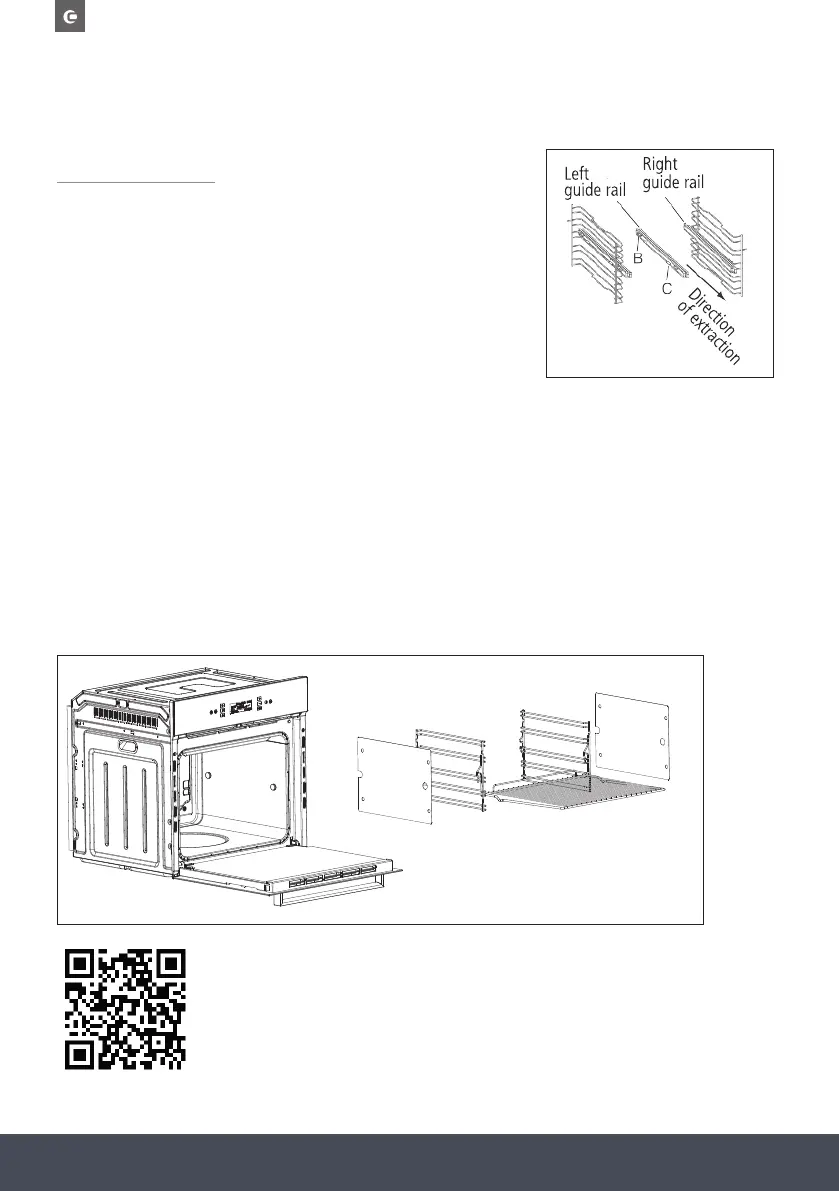

Fig 1.
To assemble the telescopic runners:
› Remove the side racks.
› Choose which shelf to use with the telescopic runner.
Pay attention to the direction in which the runner is to
be extracted, position joint ‘B’ and joint ‘C’ on the frame
(see Fig.1).
› Finally, re-t the side racks as per below.
SIDE RACKS AND CATALYTIC LINERS
To install, align the 2 holes in the catalytic liners with the 2 steel clips in the side of the oven
cavity. Once aligned, attach side racks by pushing these onto the furthest steel clip and then
clicking the other end onto the closest steel clip.
This will secure the catalytic liners to the sides of the oven. To remove, unclip the side racks from
the side of the oven, and remove the catalytic liners.
1
- Finally, re-fit the side rack
Fig.1
SSiiddee rraacckkss aanndd CCaattaallyyttiicc lliinneerrss
To install, align the 2 holes in the catalytic liners with the 2 steel clips in the side of
the oven cavity. Once aligned, attach side racks by pushing these onto the furthest
steel clip and then clicking the other end onto the closest steel clip.
This will secure the catalytic liners to the sides of the oven. To remove, unclip the side
racks from the side of the oven, and remove the catalytic liners.
Visit our Caple website to view a 'How to video' on this. w
wwwww..ccaappllee..ccoo..uukk
Scan the QR Code to access
the ‘How to video’.
TELESCOPIC RUNNERS
