Instruction manual Di65348 Please keep this instruction manual for future reference
FURNITURE DOOR INSTALLATION

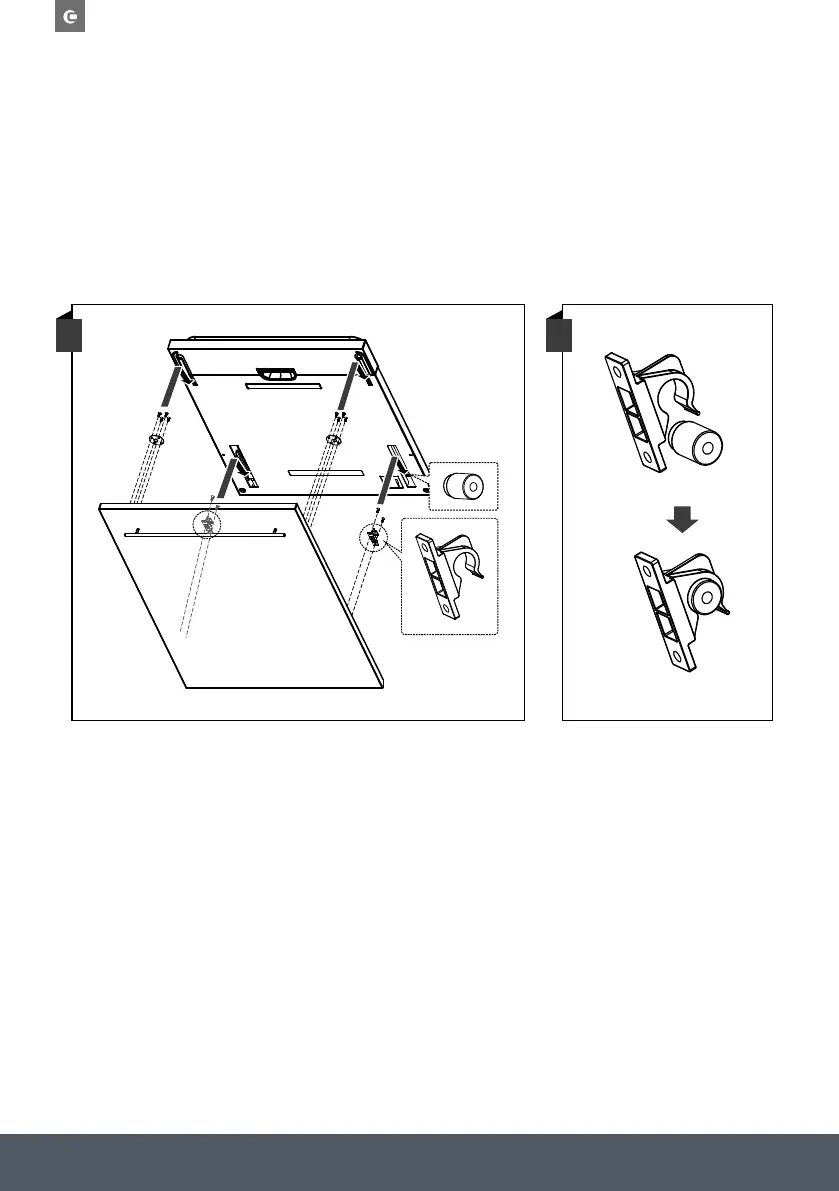

Install the hook on the furniture door panel (see figure A) and put the hook into the slot of the
outer door of dishwasher (see figure B). After positioning the panel, press the top of the aesthetic
wooden panel to make sure that the plastic hooks are fastened.
NOTE:
The furniture door weight should be 4-10KG with a Sliding Door and 5-7KG without a sliding door.
Step 2. Aesthetic panel's dimensions and installation
2. If dishwasher is in stalled at the corner of the cabinet,
there should be some space when the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
24
The aesthetic wooden panel could be processed according to the
installation drawings.
The aesthetic wooden panel could be processed according to the
installation drawings.
Install the hook on the aesthetic wooden panel (see figure 4A) and put the hook
into the slot of the outer door of dishwasher (see figure 4B). After positioning of
the panel , press top of the aesthetic wooden panel to make sure that the plastic
hook are fastened.
BAA
