Illustrations of cabinet dimensions and installation position of the dishwasher.
Preparations should be made before moving the dishwasher to the installation place.
1. Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
2. If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated
in figure 2) when the door is opened.
Figure 1

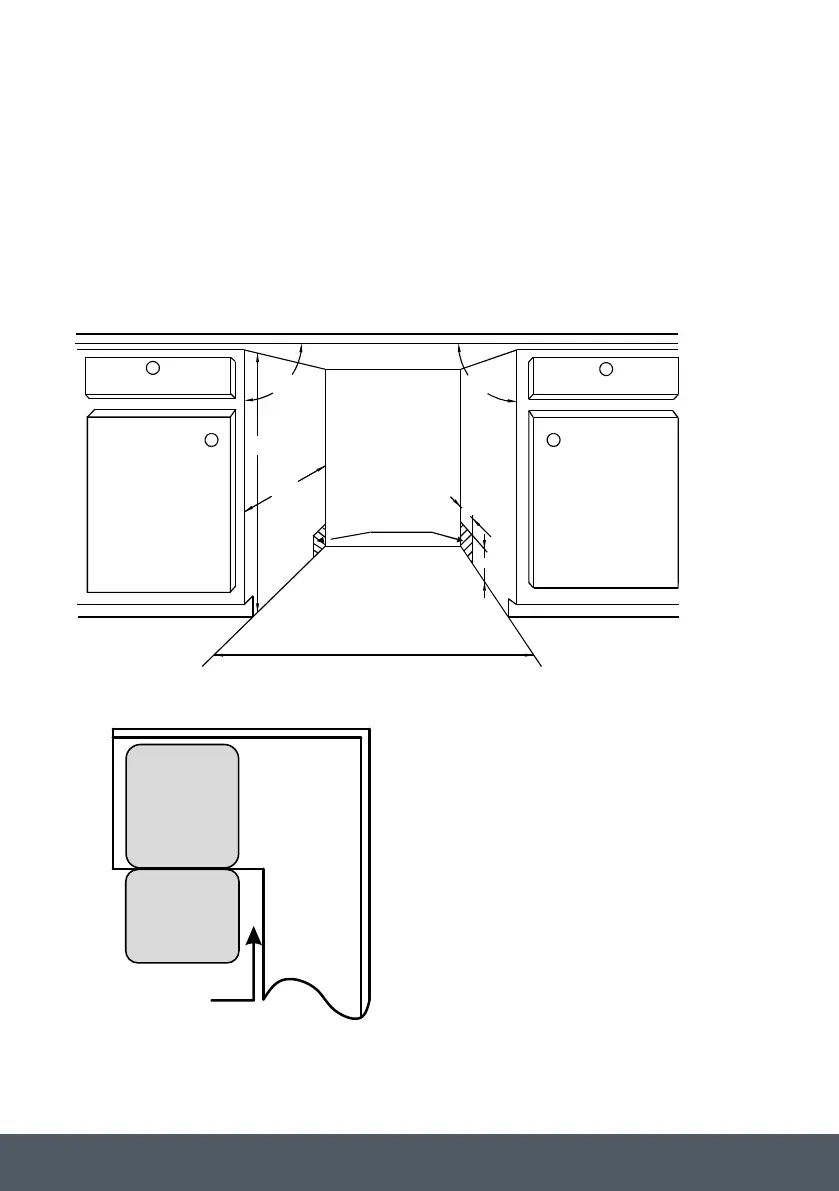

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the
outer door aligned to cabinet.
Figure 2
Minimum space when the door is opened.
Please carefully read the installation instruction.
Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the door is opened.
2
1
Minimum space when
the door is opened
【】Figure2
Cabinet dimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1 The aesthetic door panel could be processed according to the Figure 3.
The aesthetic door panel should
be processed in accordance
with the illustrated dimensions
【】Figure3
●
Aesthetic door panel dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)
19
90°
90°
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain
and water supply
line entrances
(Unit: mm)
dp8
439
416 0.2±
390 0.2±
287.5 0 .2±
286
38
8- 2
dp8
4- 2
dp8
2- 2
20 MAX（）
5
600mm
POSITION THE APPLIANCE
Position the appliance in the desired location. The back should rest against the wall behind it,
and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water
supply and drain hoses that can be positioned either to the right or the left sides to facilitate
proper installation.
Step 2. Aesthetic panel's dimensions and installation
2. If dishwasher is in stalled at the corner of the cabinet,
there should be some space when the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
opposite cabinet side.
24
The aesthetic wooden panel could be processed according to the
installation drawings.
The aesthetic wooden panel could be processed according to the
installation drawings.
Install the hook on the aesthetic wooden panel (see figure 4A) and put the hook
into the slot of the outer door of dishwasher (see figure 4B). After positioning of
the panel , press top of the aesthetic wooden panel to make sure that the plastic
hook are fastened.
BAA
NOTE:
Depending on where your electrical outlet is, you may need to
cut a hole in the opposite cabinet side.
Step 2. Aesthetic panel's dimensions and installation
2. If dishwasher is in stalled at the corner of the cabinet,
there should be some space when the door is opened.
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
NOTE:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
24
The aesthetic wooden panel could be processed according to the
installation drawings.
The aesthetic wooden panel could be processed according to the
installation drawings.
Install the hook on the aesthetic wooden panel (see figure 4A) and put the hook
into the slot of the outer door of dishwasher (see figure 4B). After positioning of
the panel , press top of the aesthetic wooden panel to make sure that the plastic
NOTE:
Depending on where your electrical
outlet is, you may need to cut a hole
in the opposite cabinet side.
