6 Instruction manual PH500H Please keep this instruction manual for future reference
FITTING INSTRUCTIONS
The following items should be included in the box:
1 x Heater unit
2 x flexible hose with isolation valves
1 x Stainless steel fascia grille with fixing screw pack
1 x Instruction manual
STEP 1 LOCATION
Select a location in a cavity beneath a kitchen cupboard ensuring the area is clean and level.
Care should be taken not to store perishable goods in the cupboard directly above the heater.
NOTE
This plinth heater must not be fitted in a bathroom or other high humidity area.
STEP 2 CENTRAL HEATING WATER SUPPLY
Supply should be through a 2 x 15mm pipe pumped central heating system. The connection
points to the central heating pipework should always be to the side of the plinth heater and in
a position so when the heater is fully fitted the flexible hoses will not be kinked and the hoses
will have as large a radius as possible.
STEP 3 PREPARATION
This product is normally fitted directly onto the floor. Once the position has been decided, mark
out and cut the plinth to the dimensions as shown below. Please take care to make the cut out
sizes as accurate as possible as the grill is 100m high.
It is recommended that there is a gap of 20mm between the top of the plinth and the shelf of
the cupboard above to ensure adequate airflow.

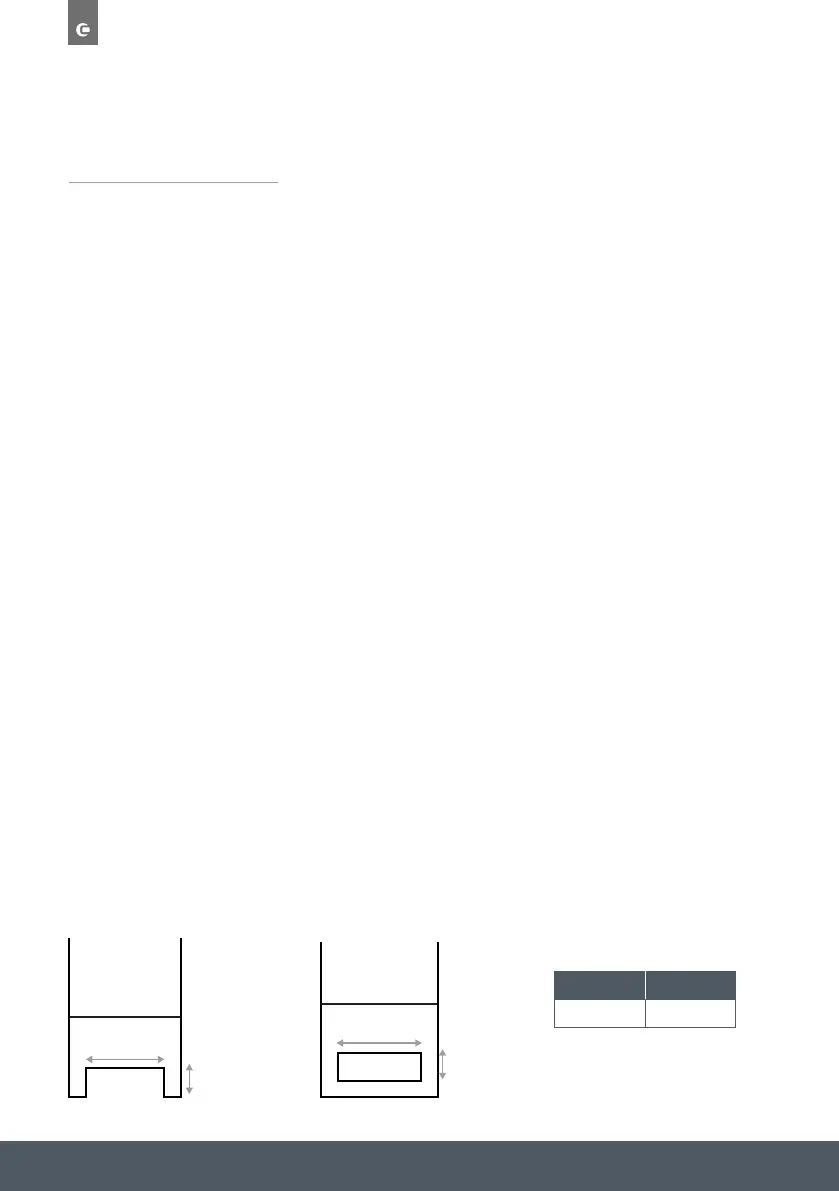

Floor mounting Plinth mounting
A = Width of cut out
B = Height of cut out
A B
360mm
96mm
A
A
B
B
