18 Instruction manual Ri7320 Please keep this instruction manual for future reference

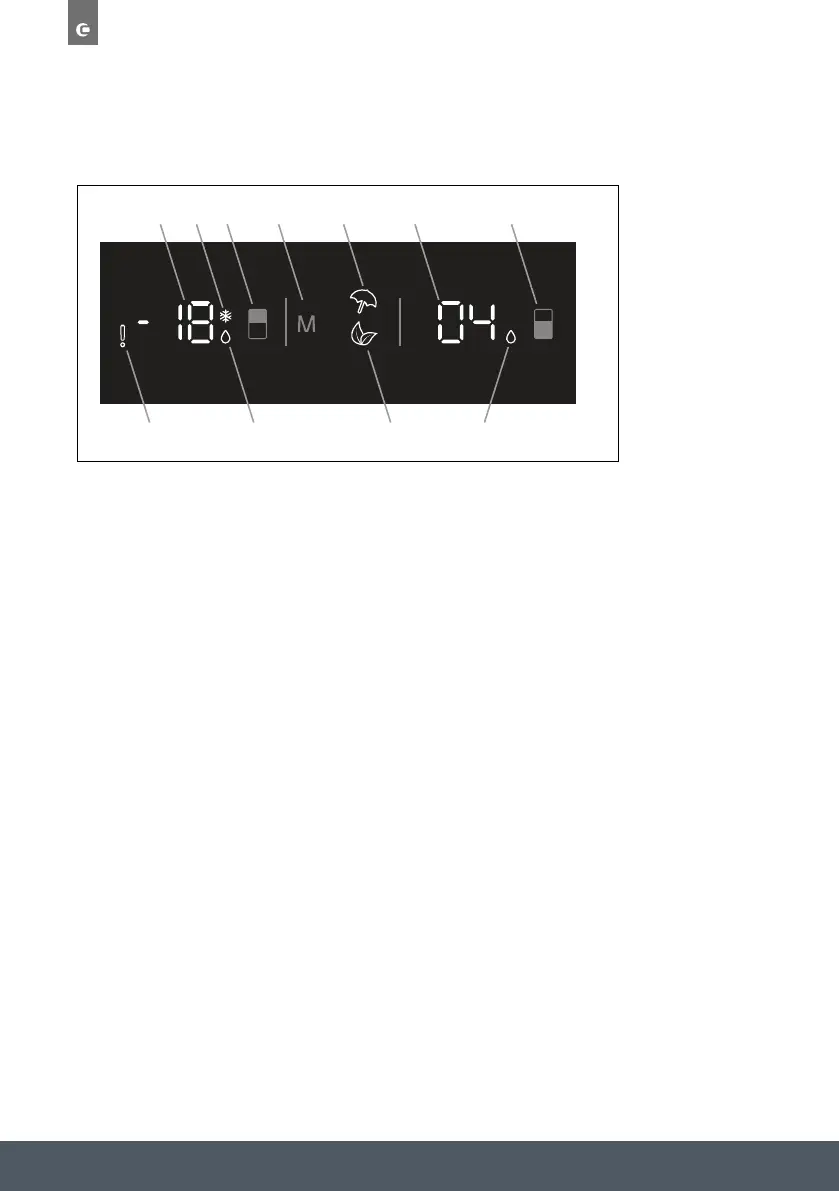

DISPLAY AND CONTROL PANEL
1. Freezer temperature setting.
2. Fridge temperature setting.
3. Mode Button. Enables the Economy and Holiday modes to be activated if desired.
4. Freezer Temperature Set Button. Set to -16, -18, -20, -22, -24°C and Super Freeze.
5. Fridge Temperature Set Button. Set to 8, 6, 5, 4, 2°C and Super Cool.
6. Super Freeze mode Indicator.
7. Super Cool mode Indicator.
8. Holiday mode Indicator.
9. Eco mode Indicator.
10. Alarm Indicator. Lights when there is an error with the appliance
(see Troubleshooting Section).
123456
77
8
910
