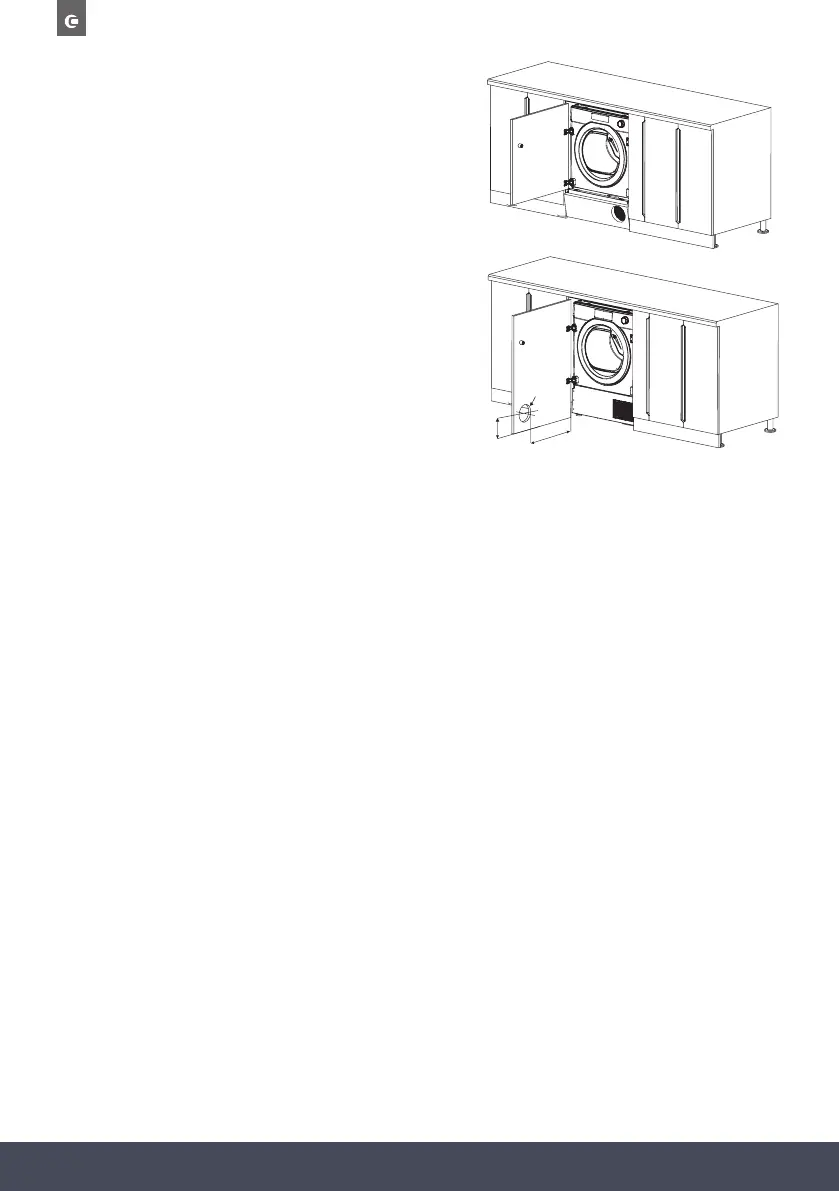

» Fix the kick plate to the dryer.
» When using the full door, the door must have
min Ø127mm hole across the slots of the
kick plate.
WARNING:
Without the airflow ventilation hole in the
furniture door/plinth we can not guarantee the
correct functionality of the appliance.
93mm
Min.
Ø127mm
504mm
J
Min. Ø127mm
105mm
93mm
93mm
Min.
Ø127mm
504mm
ALTERNATIVE INSTALLATION
When the position of the plinth is set back more than 5 mm from the front of the furniture, install
according to the following:
NOTE:
Components not supplied:
» Hinges
» Supports
» Door stop
Firstly, slide the dryer into an opening of the size indicated on page 13.
NOTE:
As soon as the hinges are fixed on the furniture is not possible to slide the dryer in and out.
