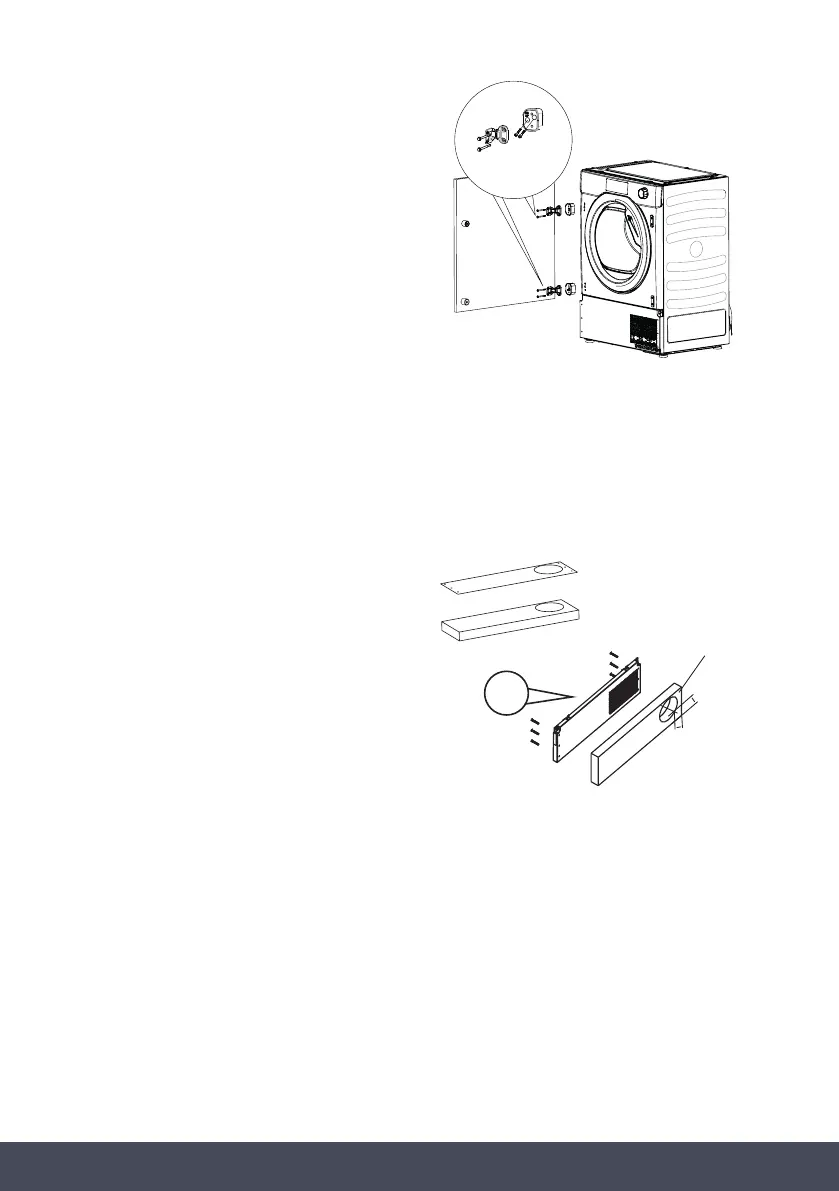

» Mount the furniture door to the front
of the dryer using the hinges.
» Fix the spacers (1) in place with the 2
screws (2) and then fix the hinges with
2 screws (3).
PLINTH VENTILATION
The plinth must have ventilation slots (min side/diameter 127mm hole) according to the
dimensions on the fixing template. If the plinth is not high enough to accommodate the entire
hole, cut only part of it.
» Place the template onto the reverse of the
plinth. Mark the screw hole positions, then
drill them out.
» Fix the plinth to the kick plate using 6
screws provided. (J)
NOTE:
This is only possible with some types of kick plate (e.g. wood or plastic). We suggest to check with
the kitchen suppliers.
J
Min. Ø127mm
105mm
93mm
93mm
Min.
Ø127mm
504mm
