When the holding lugs are in horizontal position, push the direction indi-
cator to the right and tilt it out of the orifice on the left side at the same
time.
Pull lamp holder out of the housing.
Change the faulty bulb.
Insert the lamp holder into the housing again. When doing this, make
sure that the rubber grommet is in correct position.
Let the direction indicator snap into the orifice again.
13.4.2 Rear lights
1 Brake light/rear light
2 Direction indicator/reflectors
3 Fog tail light
4 Reverse light
5 Licence plate light

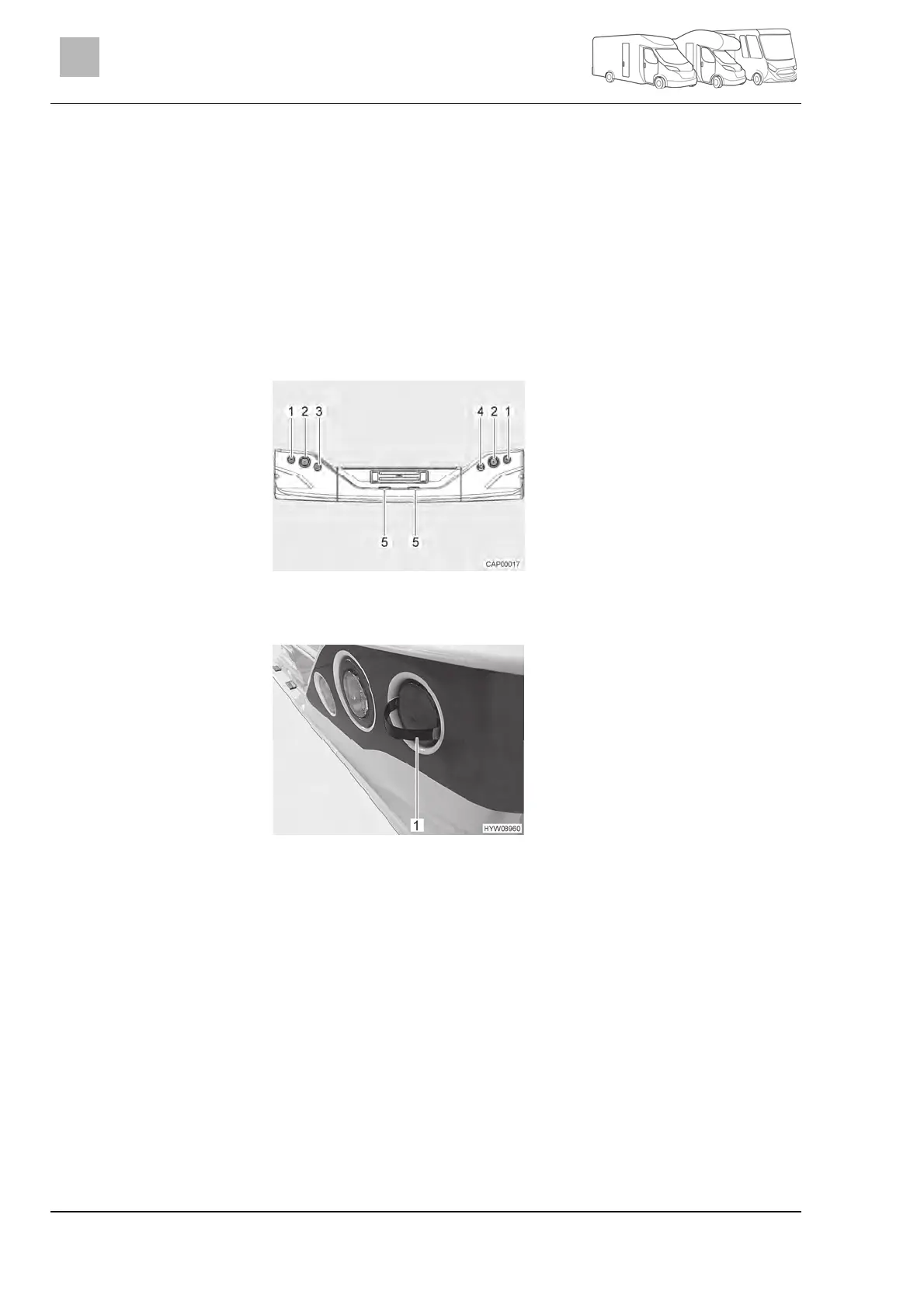

Fig. 152 Rear lights
All the bulbs of the rear lights are changed as described below.
Fig. 153 Remove the cover
Insert the snap-in lugs of the supplied tool (Fig. 153,1) at the sides of the
cover as shown.
Remove the cover with the tool.
Change the bulb.
Applying light pressure, push the cover on the lamp until it snaps into
place.
