Capture CA-SC-20200B - Serial Interface Quick Set; Record Suffix and Data Frame Settings

9

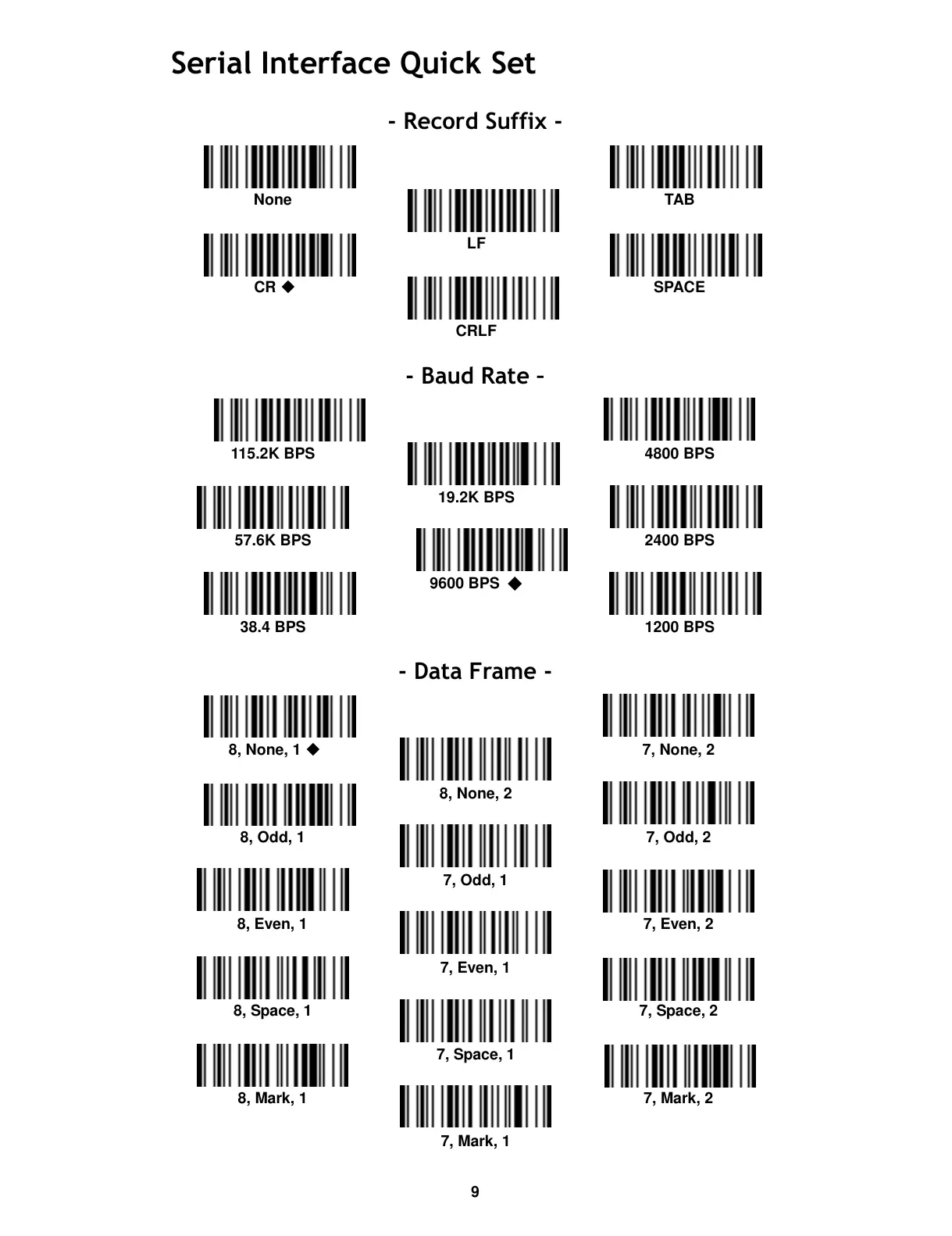

Serial Interface Quick Set
- Record Suffix -
None
TAB
LF
CR ◆
SPACE
CRLF
- Baud Rate –
115.2K BPS
4800 BPS
19.2K BPS
57.6K BPS
2400 BPS
9600 BPS ◆
38.4 BPS
1200 BPS
- Data Frame -
8, None, 1 ◆
7, None, 2
8, None, 2
8, Odd, 1
7, Odd, 2
7, Odd, 1
8, Even, 1
7, Even, 2
7, Even, 1
8, Space, 1
7, Space, 2
7, Space, 1
8, Mark, 1
7, Mark, 2
7, Mark, 1
