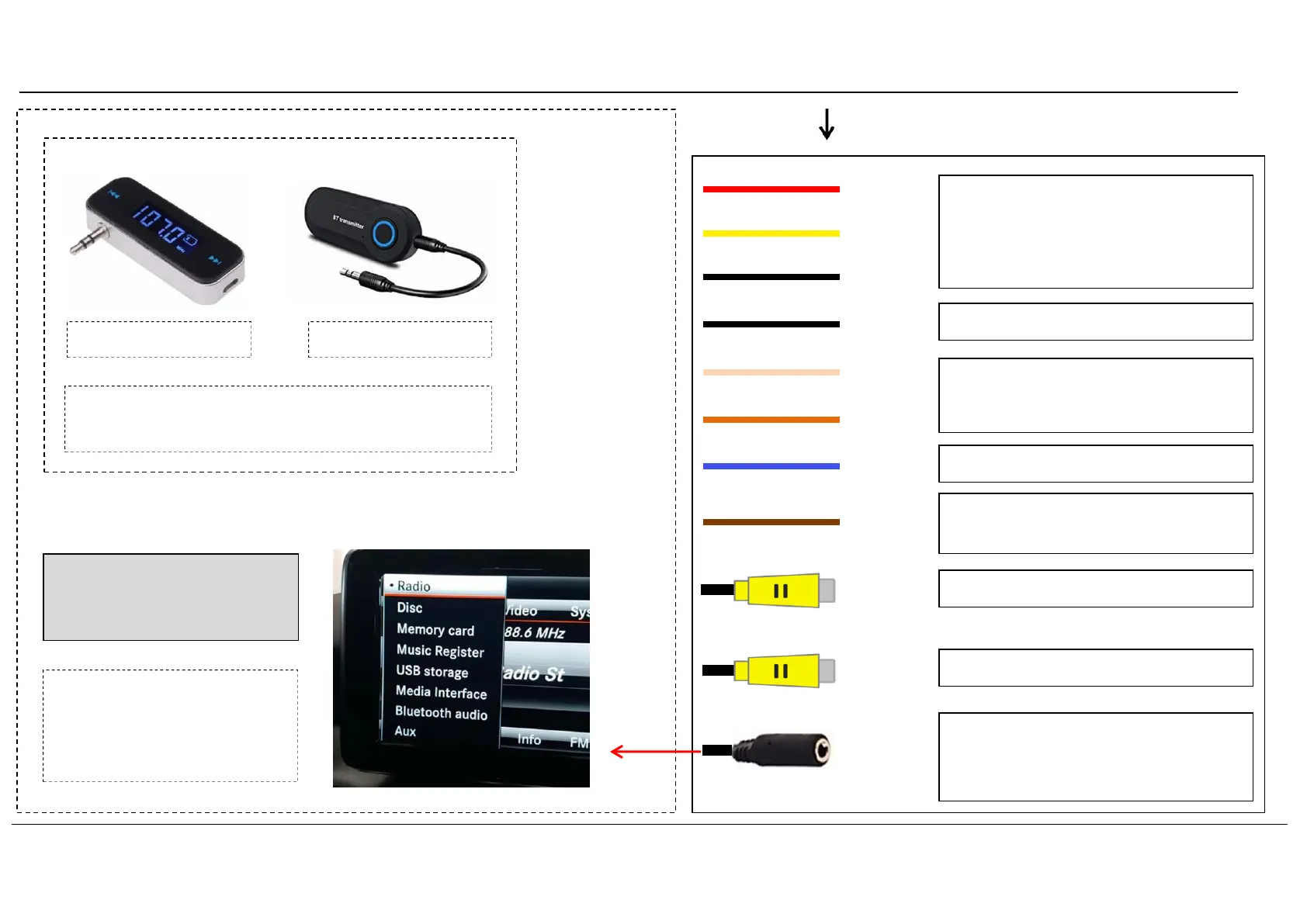

Chart A:
ACC_OUT
B+
GND
Supply power for DVR or other video
devices. Just connect the ACC_OUT (RED)
when use aftermarket front view camera
FM audio transmitter
BT audio transmitter
GND 2
Connect GND if there is any audio noise
NOTE! Other ways like connect to FM/BT audio transmitter
could be also used for audio transmission to factory radio.
LEFT_DET
RIGHT_DET
N/A
N/A
CAM_POWER
Supply 12V power for backup camera
REVERSE
Reverse detect (Connect to reverse light if
CAM_POWER cable does not output 12V)
How to delivering audio to
OEM radio
REAR_CVBS
Rear view camera video input
Connect to AUX interface after
activating OEM AUX function in
the engineering menu.
FRONT_CVBS
AUDIO OUT
Front view camera/DVR video input
AUX audio output (Connect to external
audio adapter kits for sound delivering to
OEM radio)
To Next Page
