Carbolite CTF - Circuit Diagram; Example - CTF 17;-;300 single phase; Example - TZF 17;-;600 Three-phase

1700-1800° Tube

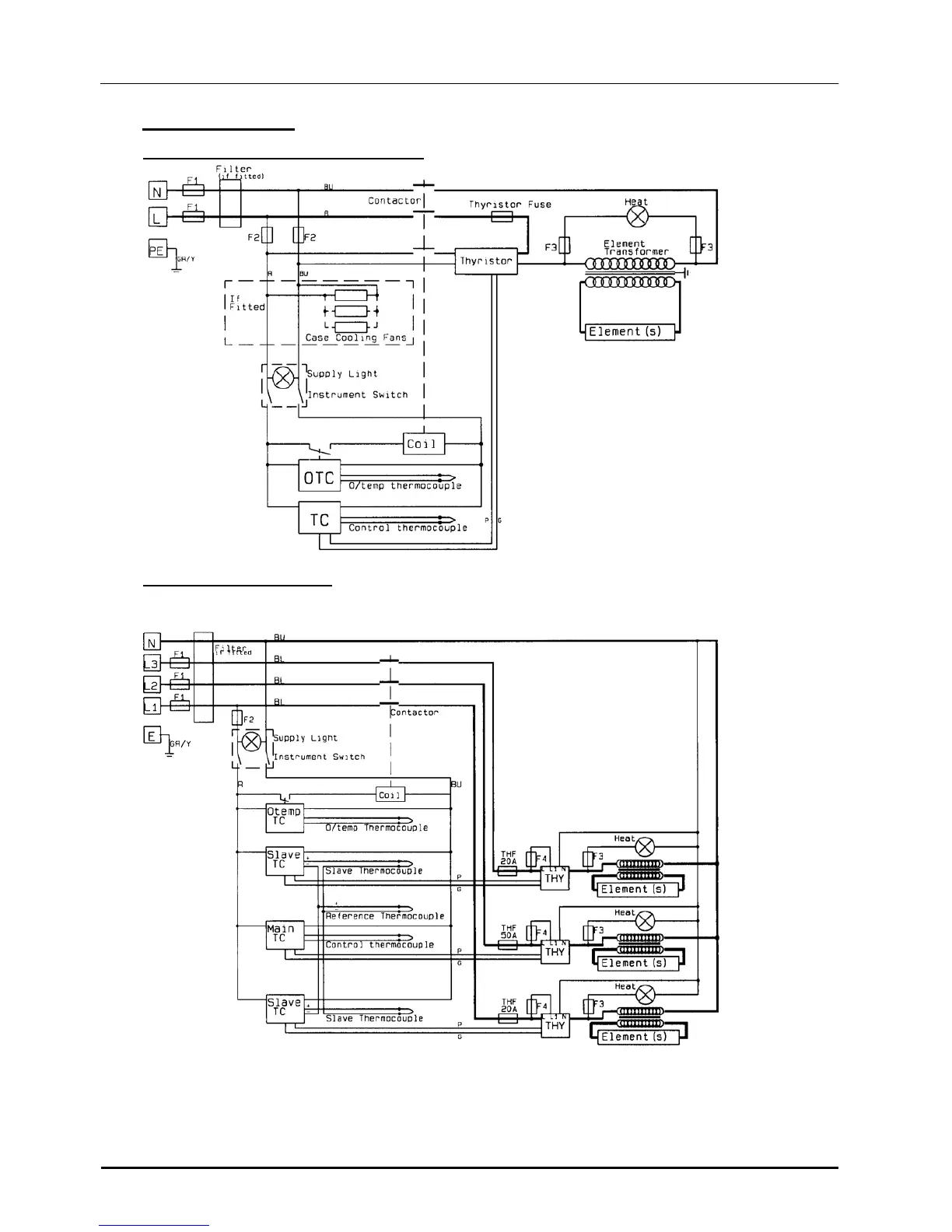

CIRCUIT DIAGRAM
7.1 Example - CTF 17/--/300 single phase
7.2
Example - TZF 17/--/600
Three-phase + Neutral, back-to-back thermocouples
TC temperature
programmer
OTC overtemperature
controller
GR/Y Green/Yellow
R Red
BU Blue
P Pink
G Grey
8.0
MF32 15
