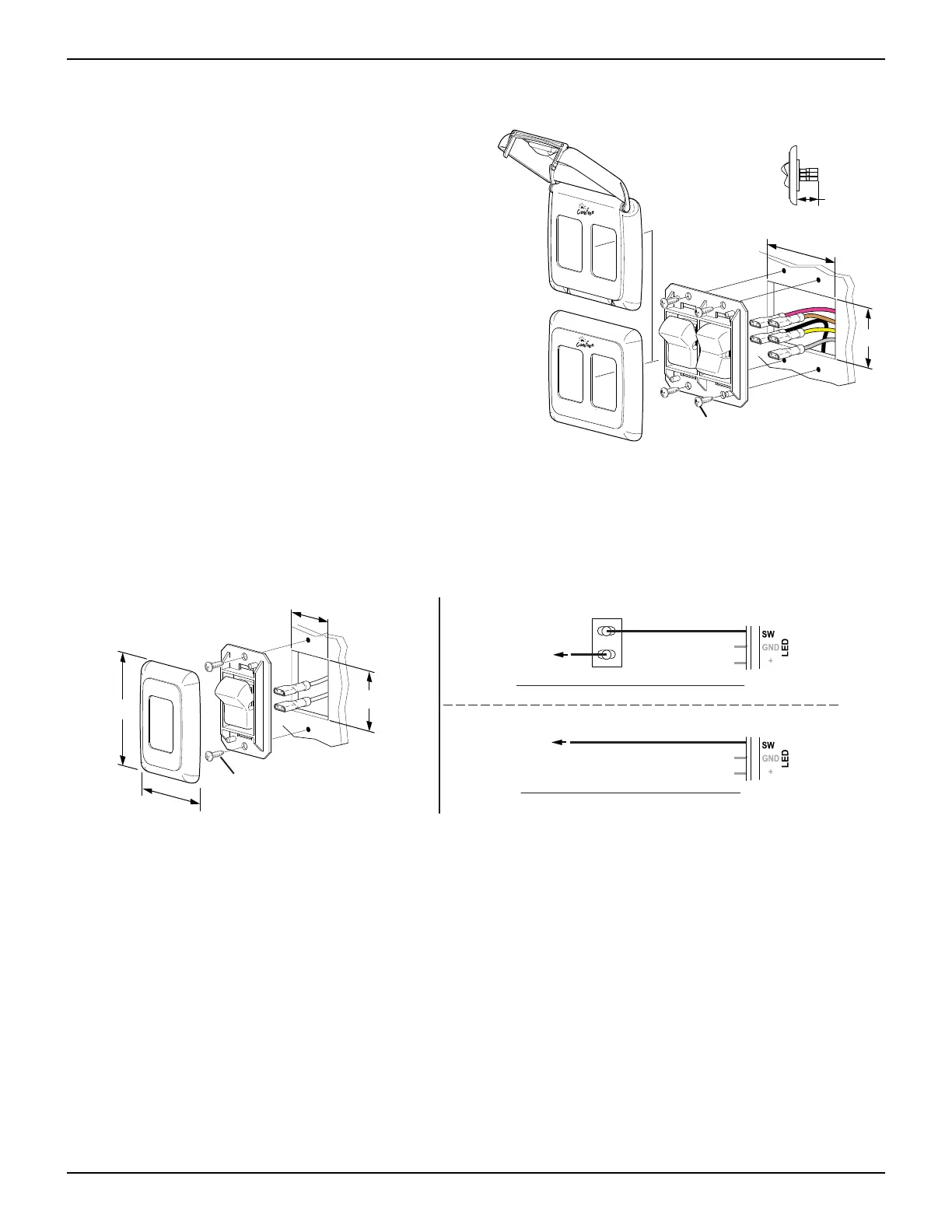

AWNING SWITCH INSTALLATION
(Refer to the wiring diagram on page 11.)
1. At the switch location cut a 2.32" x 1.5" hole.
2. From the module, terminate the three (3) 20awg
wires (Brown, Yellow and Gray) with .187, 18-20
awg female terminals. Attach to the
E
XTEND/RETRACT switch as shown in the wiring
diagram.
3. From the module, terminate the Violet wire with a
.187, 18-20 awg female terminal. Attach to the
ON/OFF switch.
4. Run a minimum 14 awg wire to +12VDC. Terminate
the wire with .187, 14-16 awg female terminal and
connect to the second terminal of the ON/OFF switch.
NOTE: If the wire run is 30 feet or longer, use
12awg wire to prevent voltage drop. Use the
appropriate wire terminals for the wire size.
5. Push the wires and switches into the hole then attach the switch frame using 4 #6 x 1/2" screws.
6. Snap the switch bezel over the switch frame.
AWNING LIGHTS SWITCH INSTALLATION
NOTE: Installers may choose to furnish the control switch or may wire directly to a multiplexing control
center.
1. Determine the location of the switch.
2. At the switch location, cut a 1.13" x 1.5" hole.
3. Wire the switch as shown. Wire terminals at the switch are .187, 18-24 awg female disconnects.
4. Press the wires and switch into the mounting hole. Secure the switch using two (2) #6 x 1/2" screws.
5. Snap the switch bezel over the switch frame.
2.9"
1.13"
1.88"
#6 x 1/2
"
Screw (x2)
BT004d
Single Pole, Single Throw Switch
Multiplexing Control Connection
White/Violet
(20awg)
To +12VDC
White/Violet
(20awg)
To Multiplexing
Controller
ON
OFF
1.5"
1"
BT001
2.32"
1.5"
#6 x 1/2" Screw (x4)
R
ETRACT
ON
E
X
T
E
N
D
O
F
F
A
wnin
g C
ontr
ol
R
ETRACT
ON
EXTEND
A
wn
i
n
g Control
OFF
Optional
Covered Bezel
To Next Page
