Carefree of Colorado Installation Manual FREESTYLE EVOLUTION AWNING
070036-001r1 5

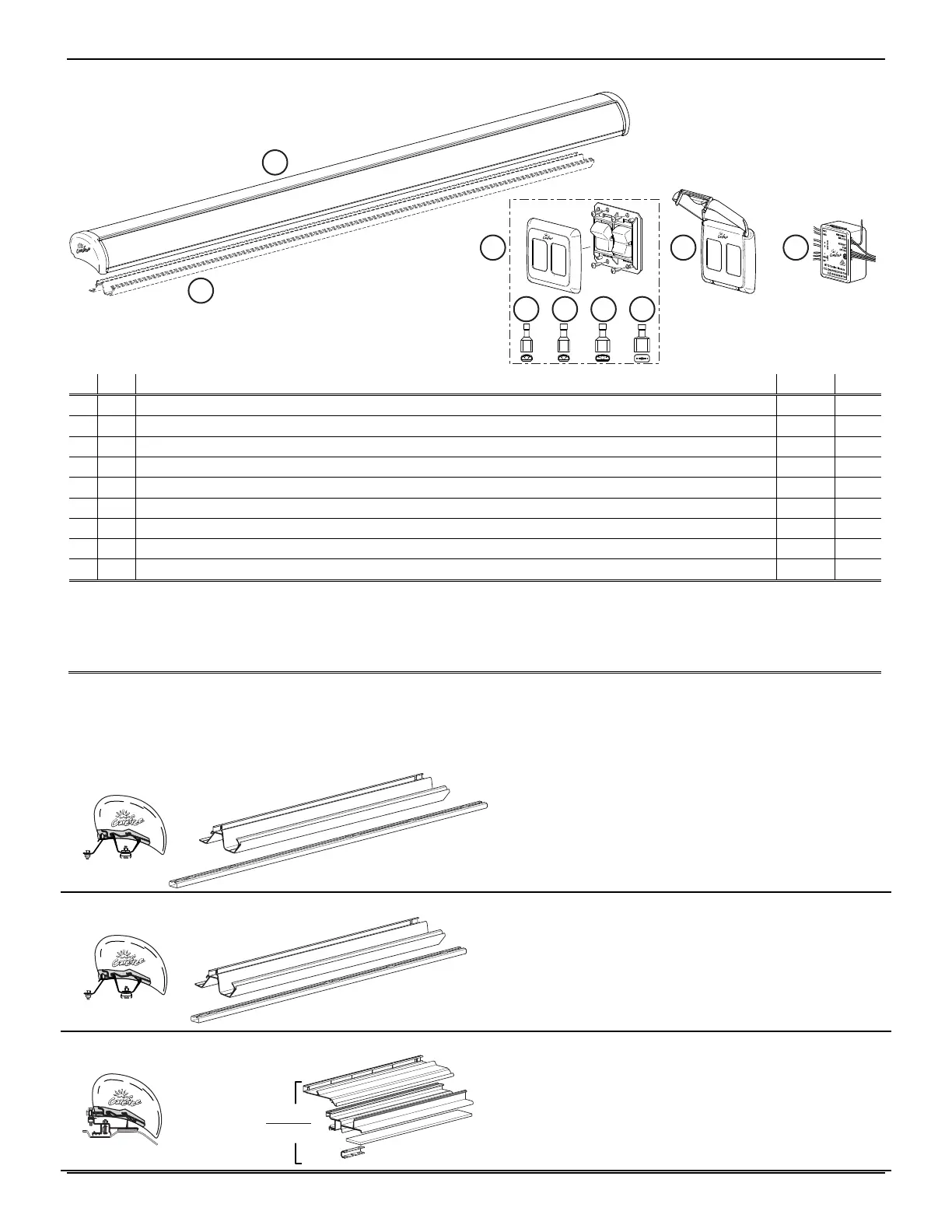

COMPONENT CHECKLIST

I
TEM DESCRIPTION QTY NOTE

1
Awning Assembly, Complete 1

2
Mounting Bracket Ordered Separately, Refer to “Freestyle RM Bracket Kits”

3
Switch Kit 1

3a
Terminal, Female, .187 18-22 awg 3

3b
Terminal, Female, .187 14-16 awg 2

3c
Terminal, Female, .25 14-16 awg 1

3d
Terminal, Male, .25 14-16 awg 1

4
Covered Bezel, 2 Switch 1 2

5
BT12 Control Module 1 3
NOTES: 1. Specific awning configuration is specified at time of order, including awning length, fabric, color etc. check
awning assembly against original purchase order.
2. The covered bezel (item 4) is optional and ordered separately. Refer to page 8 for information about
NFPA 1192 RV Standard, Section 6.4.9 (Switch Installation Requirements).
3. The BT Motion Sensor is factory installed in the lead rail on the motor side.
FREESTYLE RM BRACKET KITS
Bracket kits are ordered separately. Several types are available based on the application installation.
Bracket mounting instructions are separate instructions that supplement this manual.
BS0012 Sprinter
4.5m & 5m
Mill Finish
Bracket and Awning Hardware included
Instruction Supplement: 052570-012
BS0013 Sprinter
4m and less
Mill Finish
Bracket and Awning Hardware included
Instruction Supplement: 052570-013
BS0014 Dodge ProMaster; Fiat Ducato
(-4) 4 Brackets 3.5m
(-5) 5 Brackets 4m
Mill Finish
Bracket and Awning Hardware included
Instruction Supplement: 052570-014
RETR
ACT
ON
E
X
TEND
OFF
Awn
ing C
o
ntrol
1
2
4
5
RE
T
RACT
ON
EXTEN
D
Awnin
g
Co
nt
ro
l
O
F
F
3a 3d3c3b
3
ragm002
(x3)
(x3)
42"
BS0012a
28"
(x2)
(x2)
36"
BS0013a
28"
-4 (x4)
-5 (x5)
BS0014a
