26

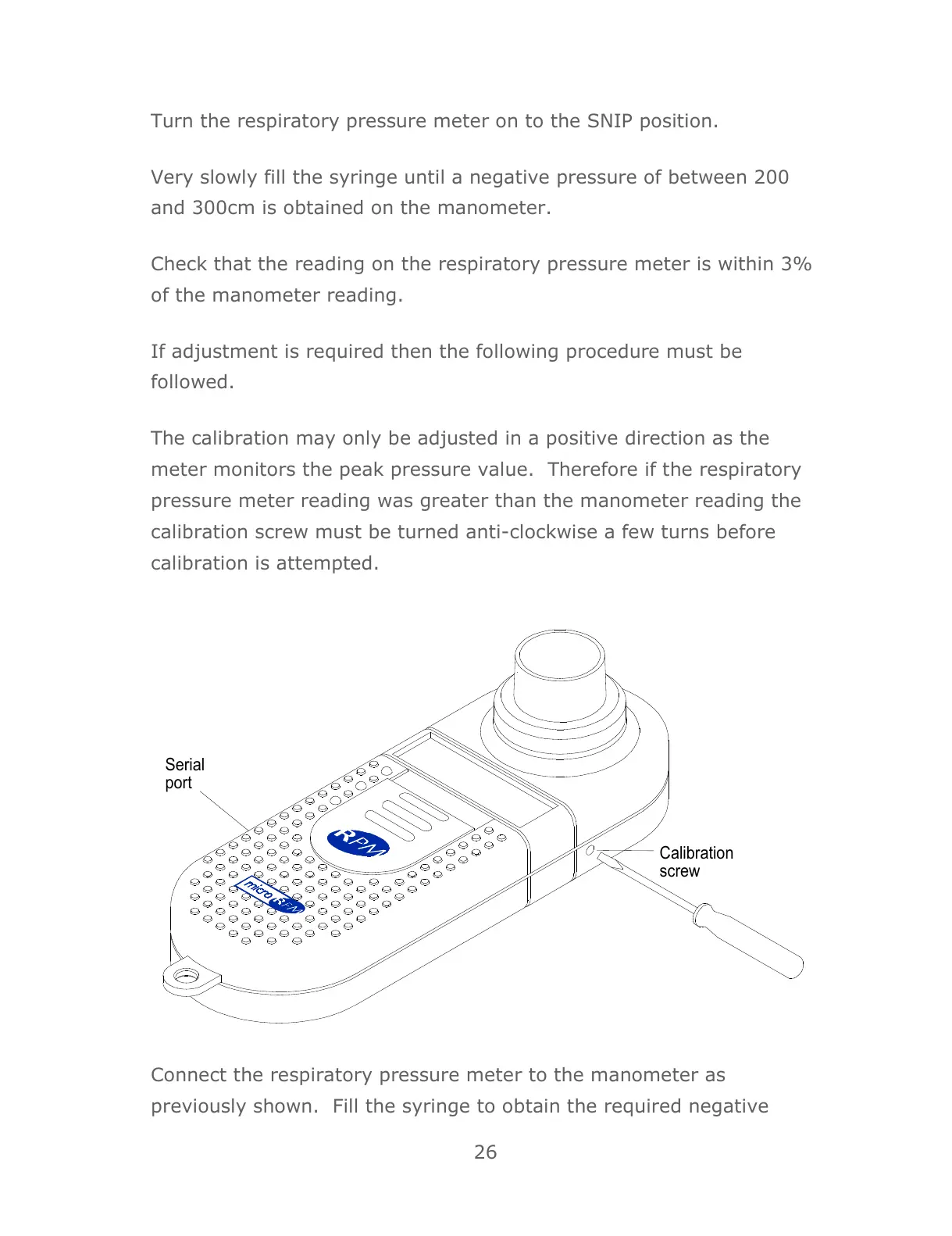

Turn the respiratory pressure meter on to the SNIP position.
Very slowly fill the syringe until a negative pressure of between 200
and 300cm is obtained on the manometer.
Check that the reading on the respiratory pressure meter is within 3%
of the manometer reading.
If adjustment is required then the following procedure must be
followed.
The calibration may only be adjusted in a positive direction as the
meter monitors the peak pressure value. Therefore if the respiratory
pressure meter reading was greater than the manometer reading the
calibration screw must be turned anti-clockwise a few turns before
calibration is attempted.
Serial
port
Calibration
screw
Connect the respiratory pressure meter to the manometer as
previously shown. Fill the syringe to obtain the required negative
