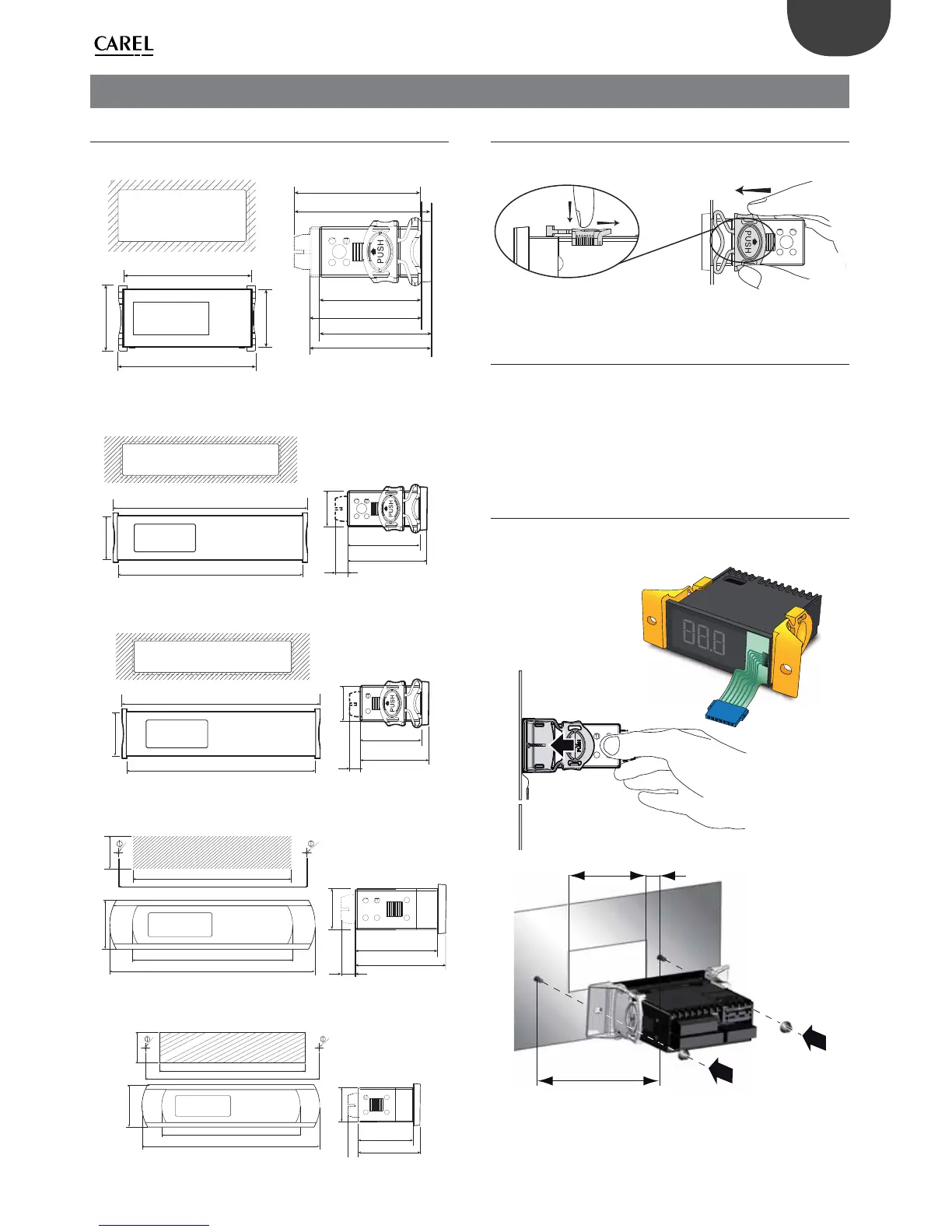

2. INSTALLATION
2.1 Dimensions
ir33+
dima di foratura
drilling template
71x29 mm
34.7
79.5
82
76.2
80.6
38.6
60
64
Version E, A
65
69
Fig. 2.a
ir33+ wide
dima di foratura
drilling template
138.5 x 29 mm
36
143
147
69
73
10
28
Fig. 2.b
ir33+ small wide
44
47.5
28
10
dima di foratura
drilling template
138.5 x 29 mm
36
143
147
Fig. 2.c
Easy wide
182
140
43
69
73
10
28
3
29.2
138.4
165
3
dima di foratura
drilling template
Fig. 2.d
Easy small wide
182
140
43
44
47.5
28
10
3
drilling template
dima di foratura
29.2
138.4
165
3
Fig. 2.e
2.2 Panel mounting
To install the ir33+, ir33+ wide and ir33+ small wide controllers, use the 2
brackets shown in the  gure.
1
2
Fig. 2.f
2.3 Rear panel mounting
The models with separate membrane keypad (e.g. keypad part numbers
62C716A084 and 62C716A085) should be rear panel mounted, with
the membrane keypad  tted from the front; electrical connection
is performed using the ribbon cable, sliding it through the opening
provided. ir33+ and +ir33+ wide models require side brackets, inserting
the fastening screws; easy wide and easy small wide models have holes
on the side, accessible after having removed the frame.
ir33+
STEP 1
Drill the holes (ø 3 mm) with the spacing shown in the  gure and make
the opening for inserting the ribbon cable.
53 mm 14,5 mm
98 mm
Fig. 2.g

Carel ir33+ Specifications

General

Model	ir33+
Category	Controller
Storage Temperature	-20°C to +70°C
Dimensions	74 x 32 x 60 mm
Communication	RS485
Operating Temperature	-10°C to +60°C
Protection Rating	IP65
Power Consumption	5 VA max
Relative Humidity	10% to 90% non-condensing
Number of Relays	3
