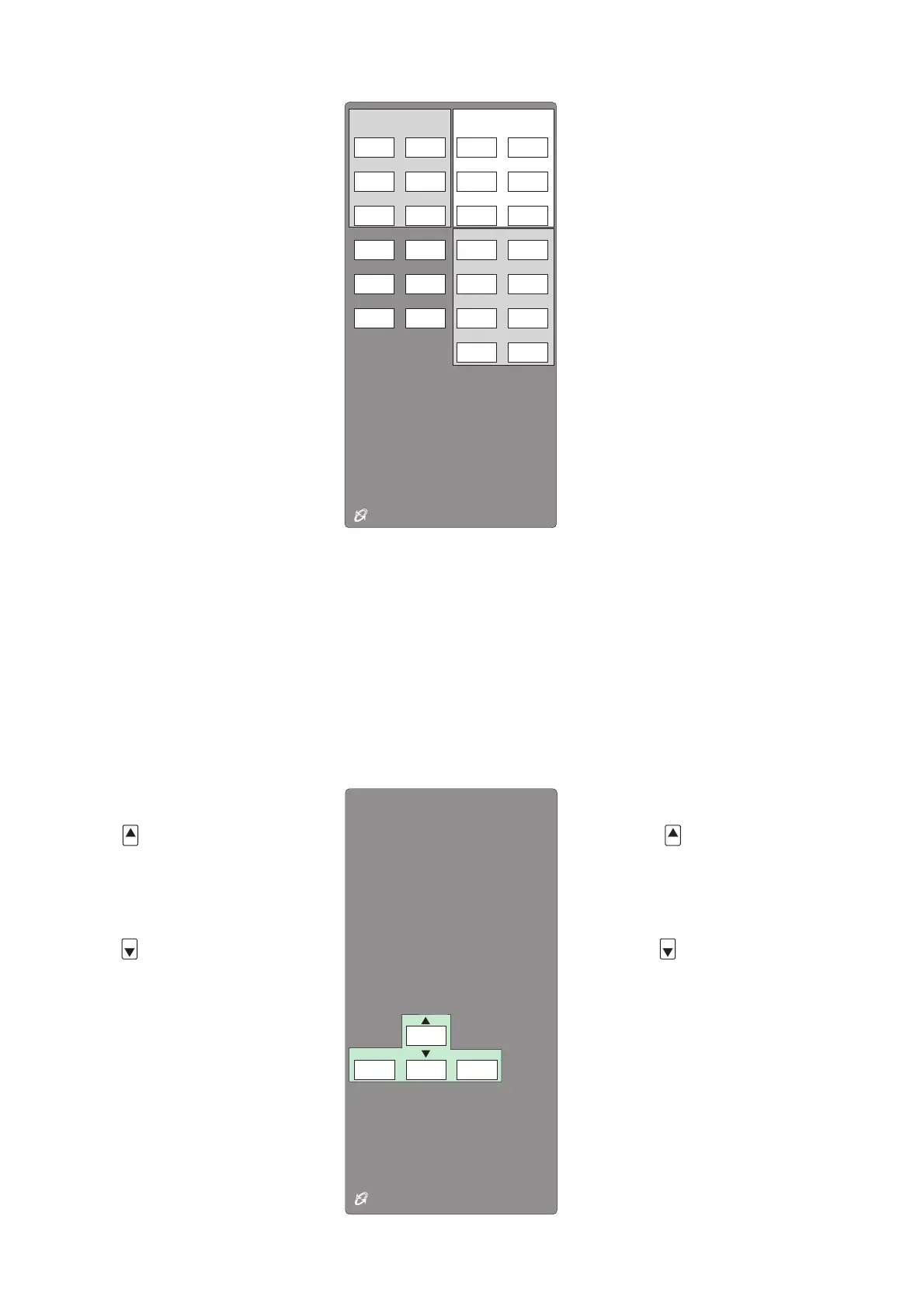

b) buttons used to modify the main parameters
The most frequently used parameters
are directly indicated on the remote
control.
They are grouped in three differently
coloured zones:
• regulation parameters;
“high” and “low” temperature alarm
parameters;
• parameters for the control of each
output in the Special Mode (C33=1).
c) buttons for scrolling/modifying all parameters
The green zone of the remote control indicates the but-
tons that allow you to scroll and modify all parameters.
SEL: alternatively displays the code of the parameter and
its actual value;
BUTTONS :
1) goes to the next parameter;
2) increases the displayed value.
BUTTONS :
1) goes to the previous parameter;
2) decreases the displayed value.
b) tasti per la modifica diretta dei parametri principali
I parametri di uso più frequente sono
stati riportati direttamente sul teleco-
mando.
Le zone con sfondo diverso identifica-
no:
parametri relativi alla regolazione;
parametri relativi alla gestione allarme
“Alta” e “Bassa”;
parametri caratteristici delle singole
uscite in Modo speciale (C33=1).
c) tasti per la scansione/modifica di tutti i parametri
La parte evidenziata, che sul telecomando è in verde,
riproduce i tasti dello strumento che consentono di
scorrere e visualizzare tutti i parametri.
SEL: commuta la visualizzazione del codice parametro al
corrispondente valore e viceversa;
TASTO :
1) consente di passare
da un parametro al successivo;
2) nella visualizzazione del parametro ne
aumenta il valore;
TASTO :
1) consente di passare da un
parametro al precedente;
2) nella visualizzazione del parametro ne
diminuisce il valore.
14
set point
__
+
differential
__
+
calibration
__
+
high alarm
low alarm
alarm delay
setting
ir
2^ set point
2^ different.
neutral zone
__
+
__
+
__
+
out 1 out 2
out 4out 3
insertion
__
+
__
+
hysteresis
_
+
_
+
_
+
SEL
setting
ir
Fig.12
Fig.13
