Aluminum Hitch-Mounted
Bike Carrier Item# 9029869
Folding Status

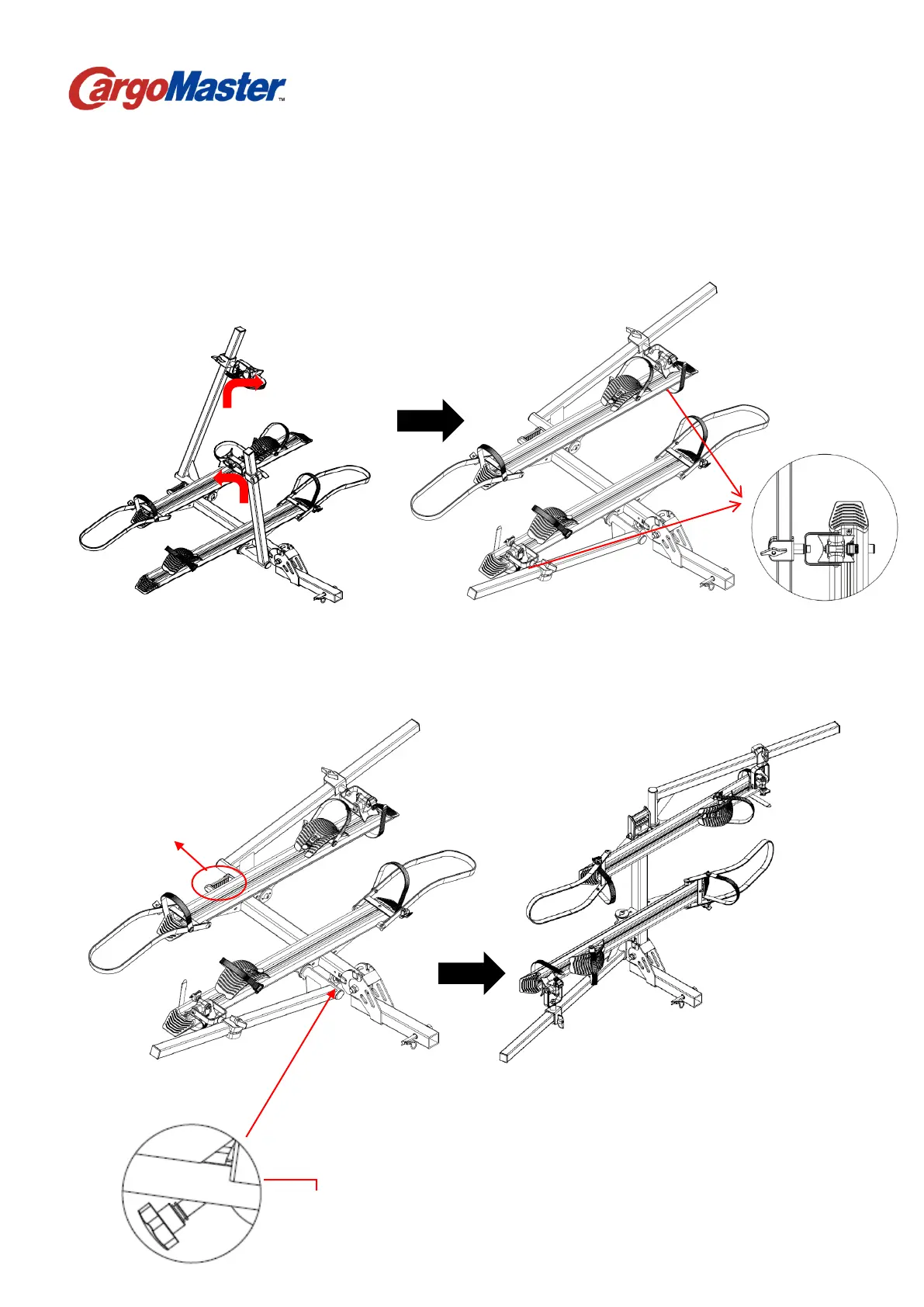

STEP 1: First rotate the adjusting tube assemblies on both sides of the bicycle frame horizontally (as
shown in Figure 1), and then fix the adjusting support assembly on the beam assembly with a tension
strap (as shown in Figure 2).
STEP 2: First unscrew the M10 hand wheel with screw, then pull the handle at the position shown in
Figure 3 to fold the bicycle frame, as shown in Figure 4.
FIG 1 FIG 2
Note: M10 hand wheel with screw shall be rotated
out before manual folding.
FIG 3
To Next Page
