CargoMaster 9029869 - Parts List

Aluminum Hitch-Mounted
Bike Carrier Item# 9029869
2

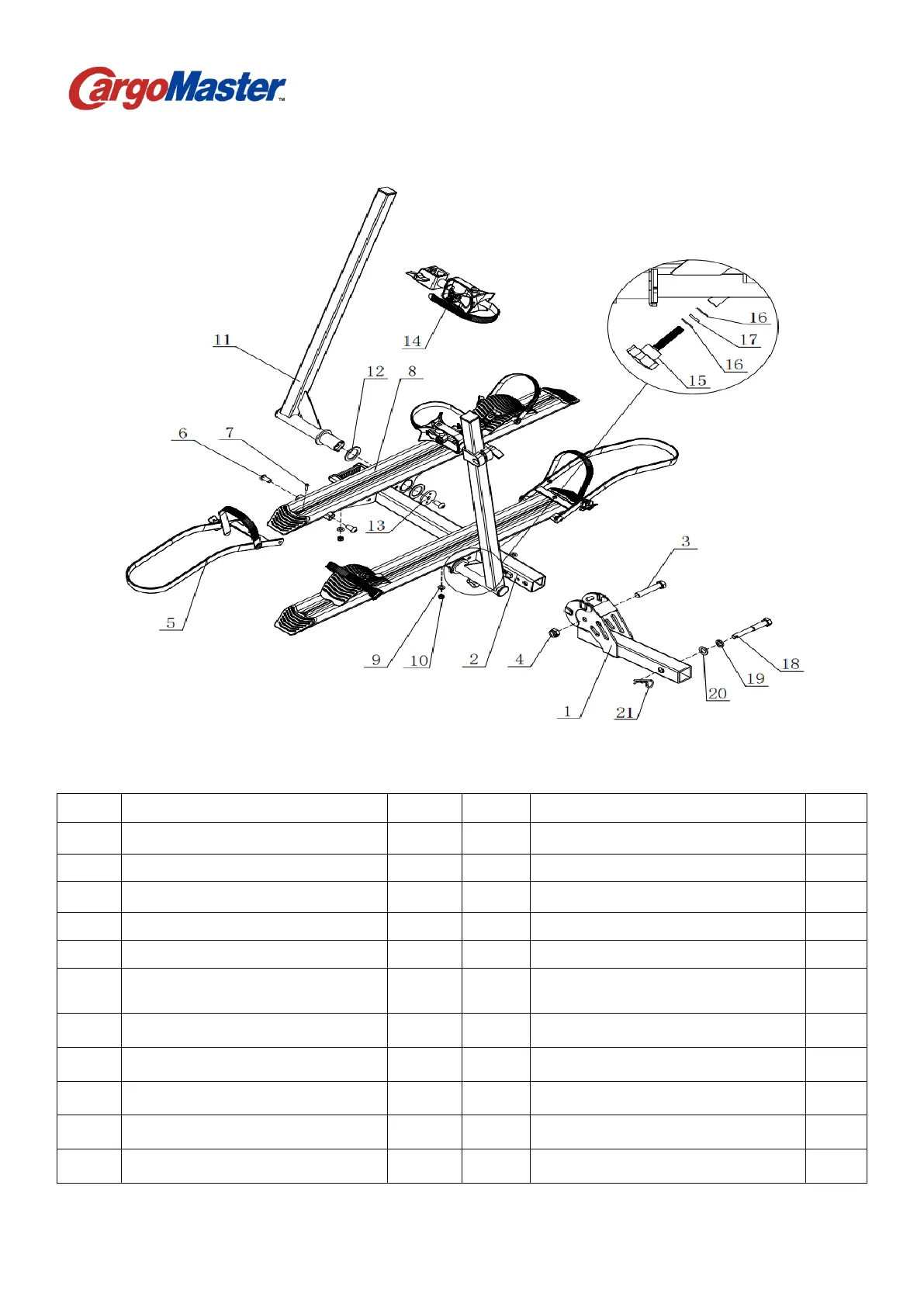

Diagram
Parts List
Part #
Description
Qty
Part #
Description
Qty
1
Folding Connector
1
12
Plastic Gasket
4
2
Supporting Tube
1
13
Circular Gasket
2
3
M16x85 Hexagon Bolt
1
14
Adjusting Support Assembly
2
4
M16 Lock Nut
1
15
M10 Hand Wheel
1
5
Front Wheel Fixing Base
2
16
10 Flat Washer
2
6 M12x30 Screw 6 17 10 Spring Washer 1
7
M6x20
Screw
2
18
M16 Shockproof Bolt
1
8
crossbeam
2
19
φ16 Spring Washer
1
9
M8
Flat Washer
4
20
φ16 Flat Washer
1
10
M8
Lock Nut
4
21
φ3.8 Pin
1
11
Vertical Bar
2
