Carlton 2015 - FRAME AND TANKS PARTS

Revised 3.15.05
SERIAL NUMBERS
OWNER DOMAIN
J.P. CARLTON COMPANY DIV. DAF INC.
BUINESS LINE
FUCTION GROUP
CHIPPERS
1 FRAME AND TANKS
Carlton
PROFESSIONAL
TREE EQUIPMENT
1
DESCRIPTION
ISSUE
R1
AXLE, TIRES AND RIMS
1J9XF011X81167139
DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
11
12
9
8
1
3
6
14
15

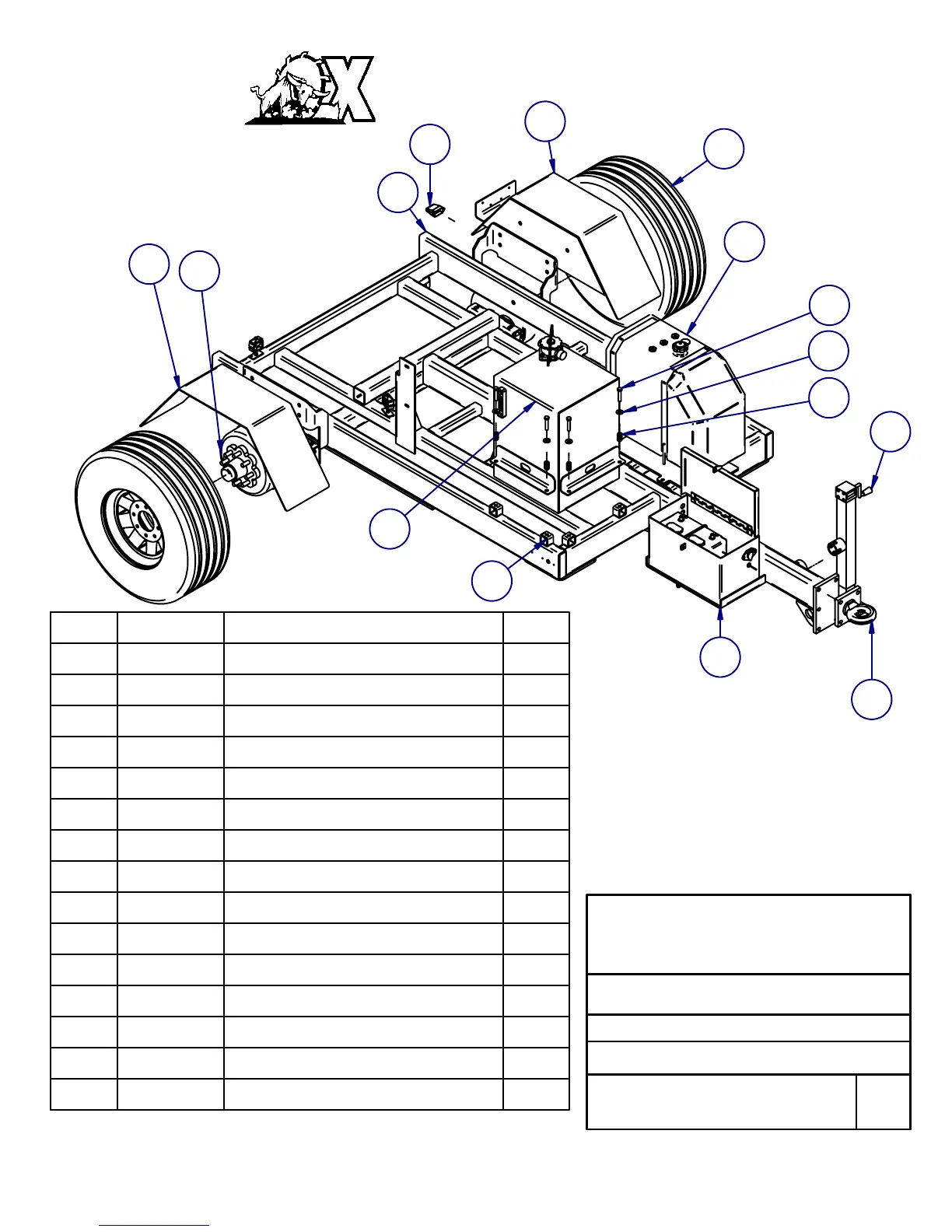

PART ITEM DESCRIPTION QTY
1 0350008B TAG LIGHT 1
2 0550001B PINTLE, 2 1/2" W/4 HOLE BRKT 1
3 0550006 TRAILER JACK- 18" CHIPPER 1
4 0550250G1 #13 TORFLEX - 2012/2512 CHIPPER 1
5 0550254 215/75R 17.5 TIRE - 12" CHIPPER 2
6 12A-0820ZI HEX C/S 1/2-13 x 2 1/2 UNC GR 8 4
7 17510002 ASSY,FUEL TANK 1
8 21220044 INST,BATTERY,FRONT MOUNT 1
9 21510001 WELDMENT,FRAME 1
10 21510003 ASSY,HYDRAULIC TANK 1
11 21610053 WELDMENT,FENDER,WIDE,RH 1
12 21610054 WELDMENT,FENDER,WIDE,LH 1
13 21840064 SPRING,FEED CONTROL LINKAGE 4
14 29A-08 NUT,STOVER LOCK, 1/2-13 UNC GR8 4
15 31A-08ZI FLAT WASHER 1/2 USS GR 8 Z&Y 4
2
5
7
13
10
4
