15” DRUM MACHINE OPERATION
45

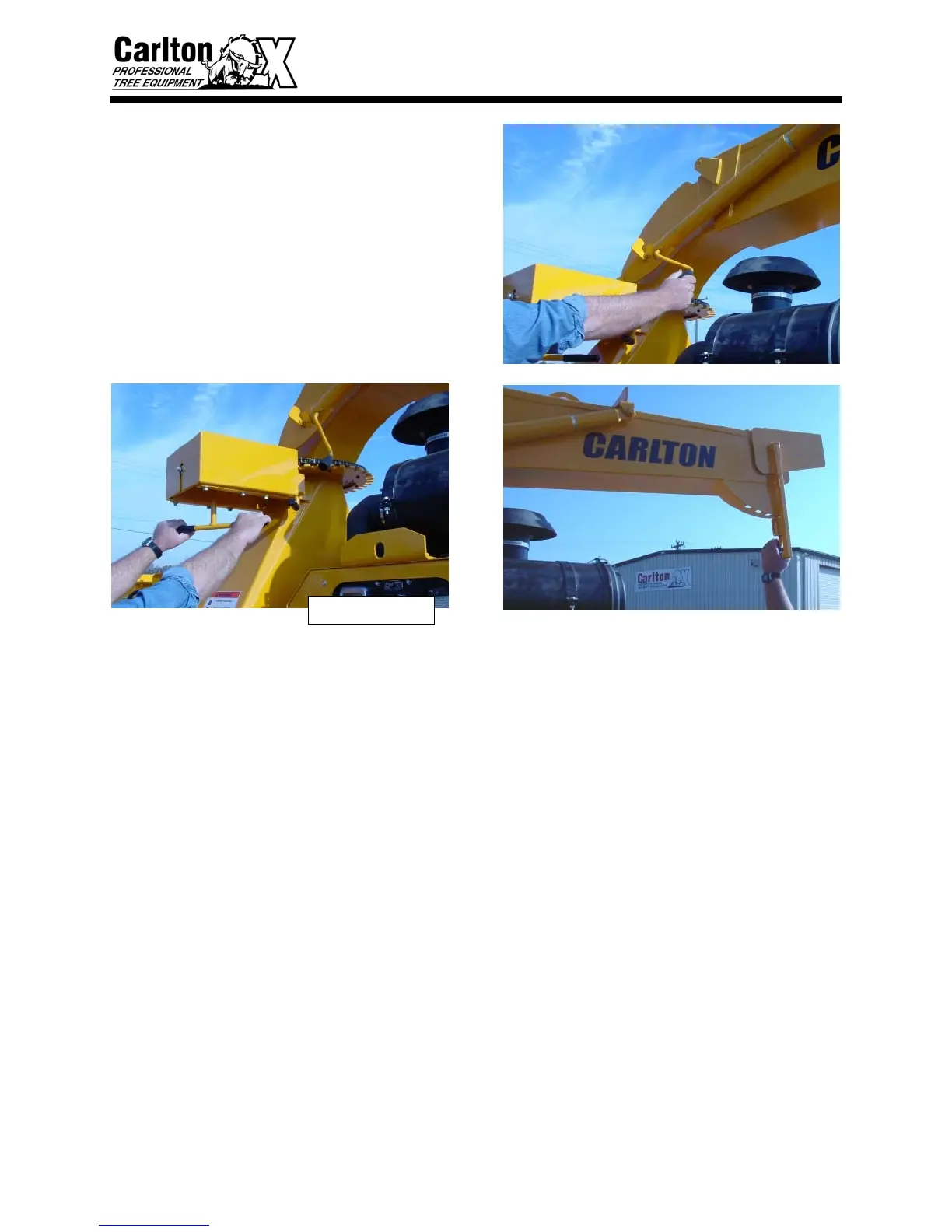

• Secure the discharge chute. Rotate the
discharge chute back over the chipper
and lock the swivel releasing the lock
pin into one of the lock grooves. Make
sure the height adjustment is at the
lowest position so that the chute will not
be high enough to hit any overhead
obstructions and secure the handle. The
flap on the end of the discharge chute
needs to be lowered as far as possible so
that no debris comes out during travel.
Remove the wheel chocks before moving the chipper.
ROTATE CHUTE
To Next Page
