50
1.25
CAPSCREW
3/8—16 x 1.50 LG
COMPRESSOR END FOOT
MOTOR END FOOT
CAPSCREW
3/8—16 x 7/8 LG
= CUSTOMER
SUPPLIED
PLATEWASHERLOCKWASHER
WELD
(TYP)
.623
.627
DIA.
(TYP.)
.19
1.31
*
*
*
*
*

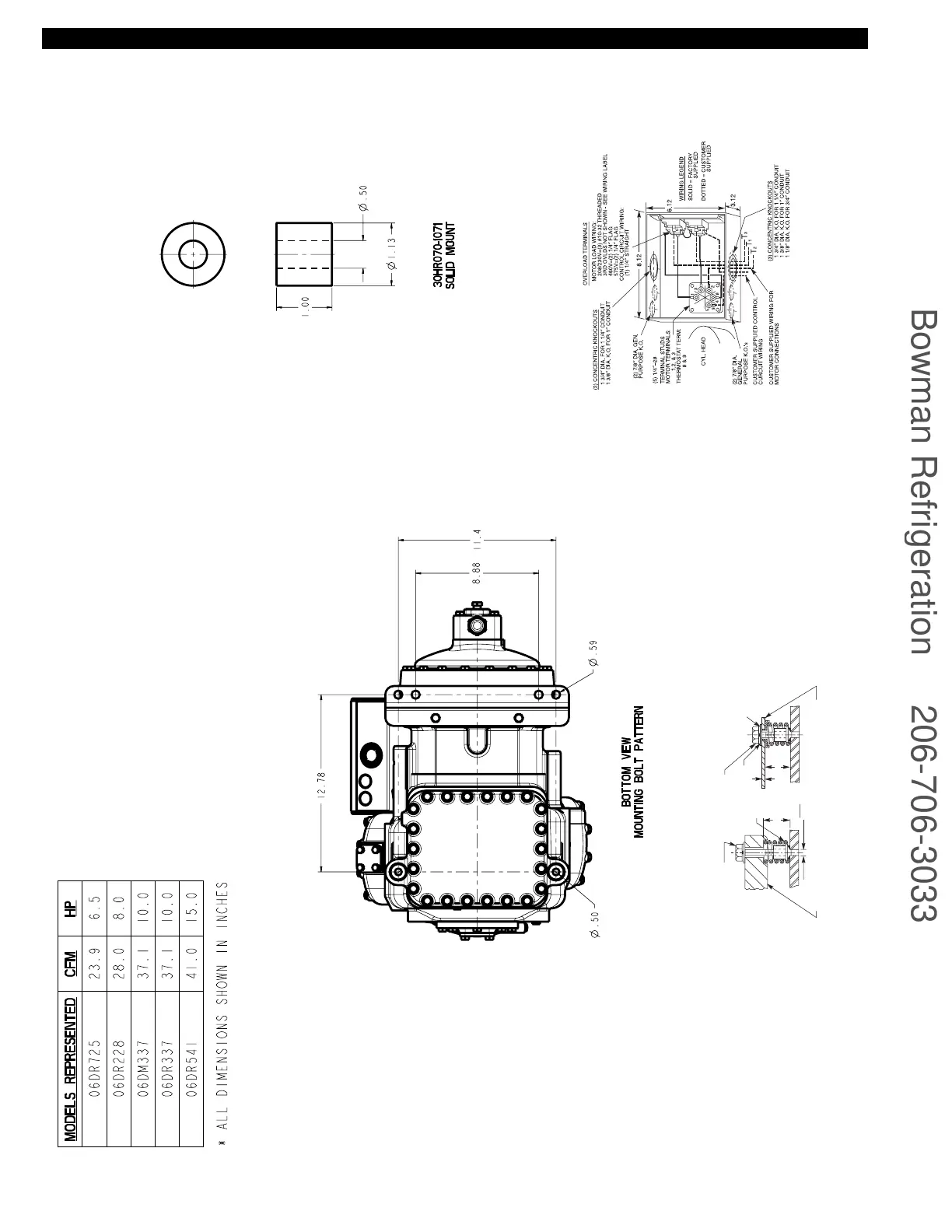

SPRING MOUNTING ARRANGEMENT
NOTE: 10 Hp, 208/230v models use 3 overloads.
