54

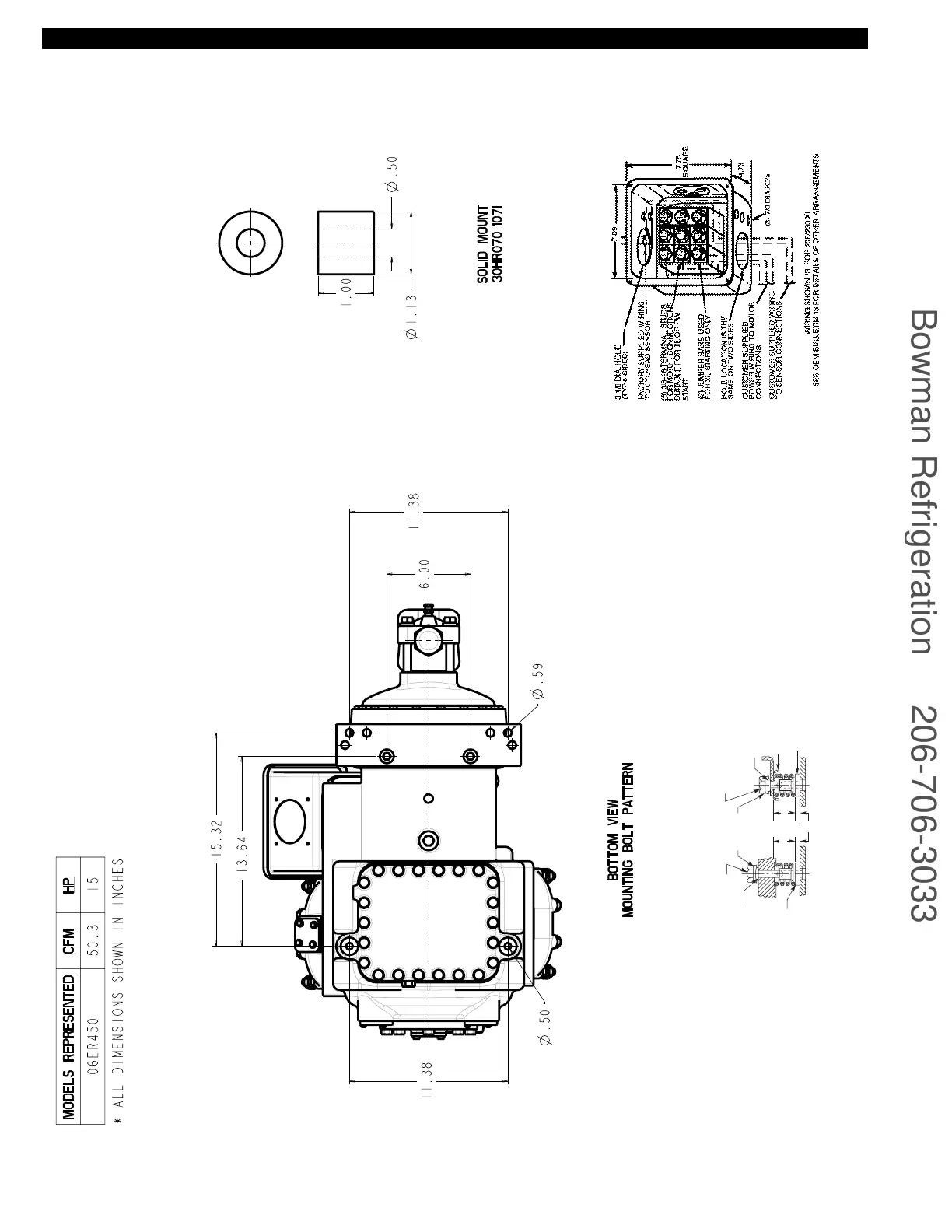

MOUNTING
WASHER
NYLOK CAPSCREW
3/8-16 x 1.75 LONG
1.38
PUMP END FOOT
MOTOR END FOOT
SPRING
GUIDE
SNUBBER
SPRING
GUIDE
SPRING
CUP
SNUBBER
NYLOK CAPSCREW
3/8-16 x 2.00 LONG
1.31
.25
SPRING MOUNTING ARRANGEMENT
TERMINAL BOX DATA
