Carlyle 06DA824 - Page 55

54
MOUNTING
WASHER
NYLOK CAPSCREW 3/8-16 x 1.75 LONG
1.38
PUMP END FOOT
MOTOR END FOOT
SPRING GUIDE
SNUBBER
SPRING GUIDE
SPRING CUP
SNUBBER
NYLOK CAPSCREW 3/8-16 x 2.00 LONG
1.31
.25

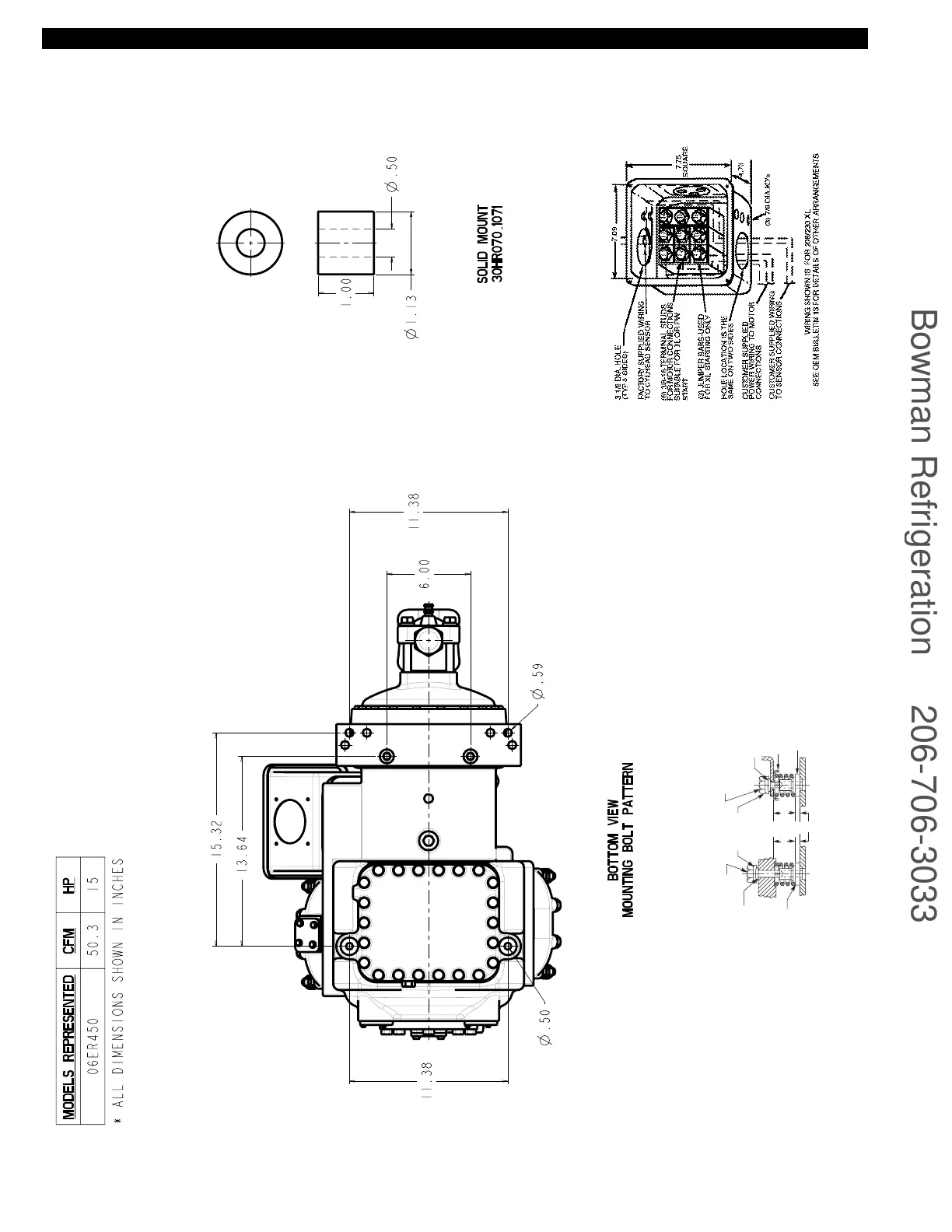

SPRING MOUNTING ARRANGEMENT
