Carpigiani K 3 User’s guide
This manual is for the exclusive use of licensees and employees of McDonald’s Systems Inc Page 35 of 63
Version 5: October 2012

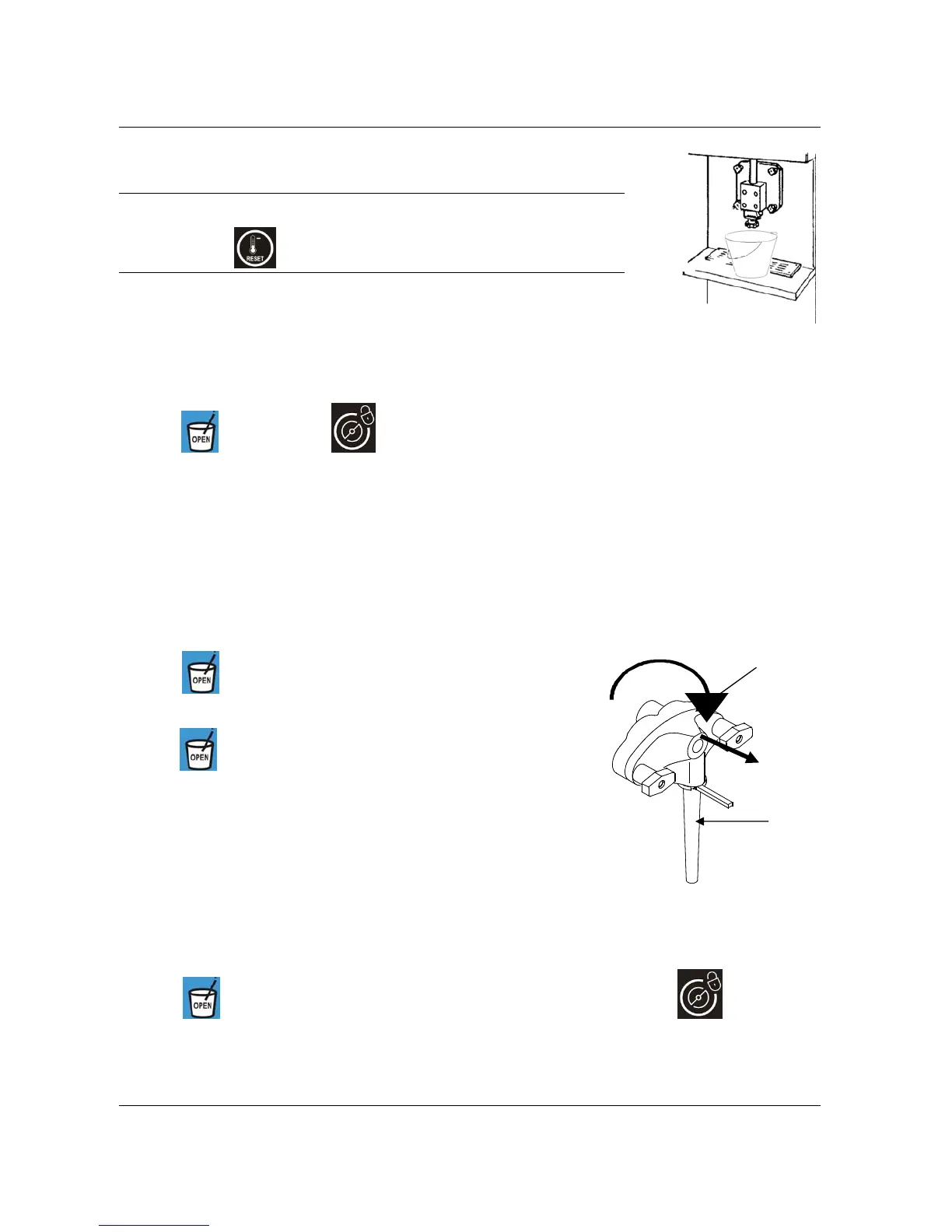

6.1.2 DRAINING AND CLEANING THE MILK SHAKE SIDE
WARNING
Every time the display shows “WASH TODAY” alarm, you have to push
once the
button in order to reset the alarm message.
Drain the Milk Shake
step 1
Put an empty pail under dispensing spout.
step 2
Push the “STOP” button.
step 3
Push the
button then push button to allow the milk shake to flow out until it becomes liquid.
step 4
Push the “STOP” button to close the piston, stop the beater motor and the mix pump.
step 5
Remove the pressure tube:
In the hopper, disconnect the pressure tube from the pump, turn it sideways and remove it by pulling it up
from its seat.
Remove the mix pump:
Grasp the pump and turn it in a clockwise direction of 45° then pull it out towards you. Make sure that the
pump drive shaft and seal are taken out with the pump.
Remove the mix agitator:
Remove the agitator from the hopper by pulling it upwards.
step 6
Push the
button in order to open the piston and drain the rest of
the liquid mix.
step 7
Use the
button to open and close the piston when necessary
while still in STOP. Drain the hopper completely. To close the piston,
press the “STOP” button.
step 8
Rinse the machine
Pour 2,5 gallons (9.5 liters) of cool, clean water into the mix hopper.
Use the white hopper brush to scrub the mix hopper, mix level sensor
and the outside the agitator shaft.
Use the small brush to clean the mix inlet hole and the drive hub of the
mix pump.
step 9
Drain rinse water from hopper and cylinder
Place an empty pail under the milk shake spout.
Push the
button to open the spigot piston and let the water drain out. Press the button and
let the beater run for about 10 seconds. Press the “STOP” button to stop the beater; the piston closes
automatically.
Pump body
Feeding
tube
