CARPOINT 0635863 - Equipment and Controls; LED Indicators and Symbols

6

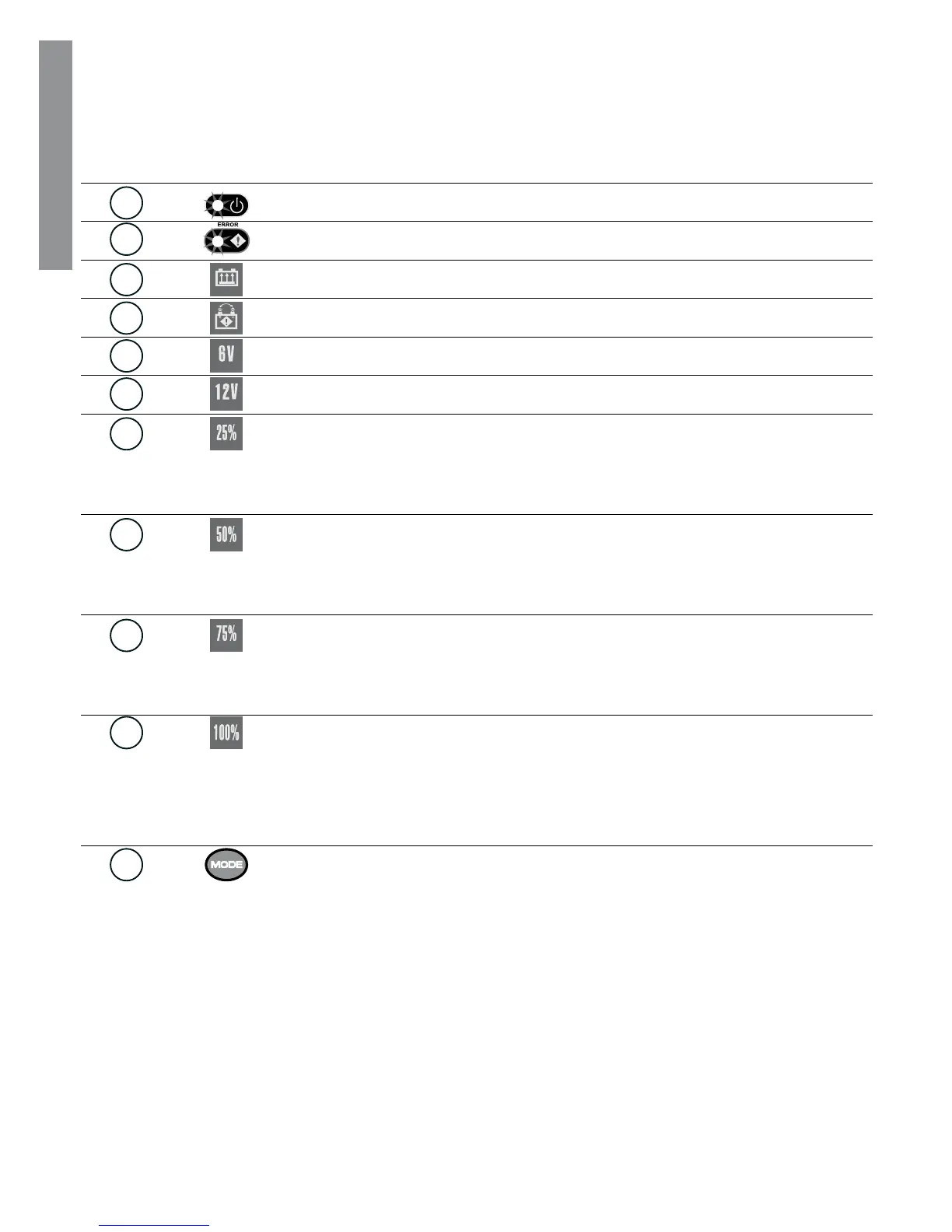

EQUIPMENT DESCRIPTION
a) Indication:
Indication Symbol Description
Yellow LED for “Power”
Red LED displays “Incorrect polarity/fault”
Red LED displays “Recovering”
Red LED displays “Reverse connection”
Red LED on for “Mode 1” Charging 6V battery
Red LED on for “Mode 2” Charging 12V battery
Red LED on (below 25% charging) “Bulk”
Battery voltage 5.1~6.5V (for 6V battery)
Battery voltage 10.2~13.0V (for 12V battery)
Red LED on (below 50% charging) “Bulk”
Battery voltage 6.4~6.8V (for 6V battery)
Battery voltage 12.8~13.6V (for 12V battery)
Red LED on (below 75% charging) “Absorption”
Battery voltage 6.8~7.2V (for 6V battery)
Battery voltage 13.6~14.4V (for 12V battery)
Green LED displays “Fully charged”
“Maintenance”
Battery Voltage ≥ 6.8-0.15V (for 6V battery) (Charger off 30 minutes)
Battery Voltage ≥ 13.6-0.3V (for 12V battery) (Charger off 30 minutes)
“Mode” selection button
1
2
3
4
5
6
7
8
9
10
11
POWER
