DIMENSIONS -- OUTDOOR (CONTINUED)
3.0
(76)
17.7 (450)
3.9
(99)
40.0 (1015)
43.4 (1103)
42.8 (1087)
7.5
(191)
24.8 (631)
17.3 (440)
15.8 (401)
14.3 (362)
4.8
(121)
Unit: in. (mm)
A12555

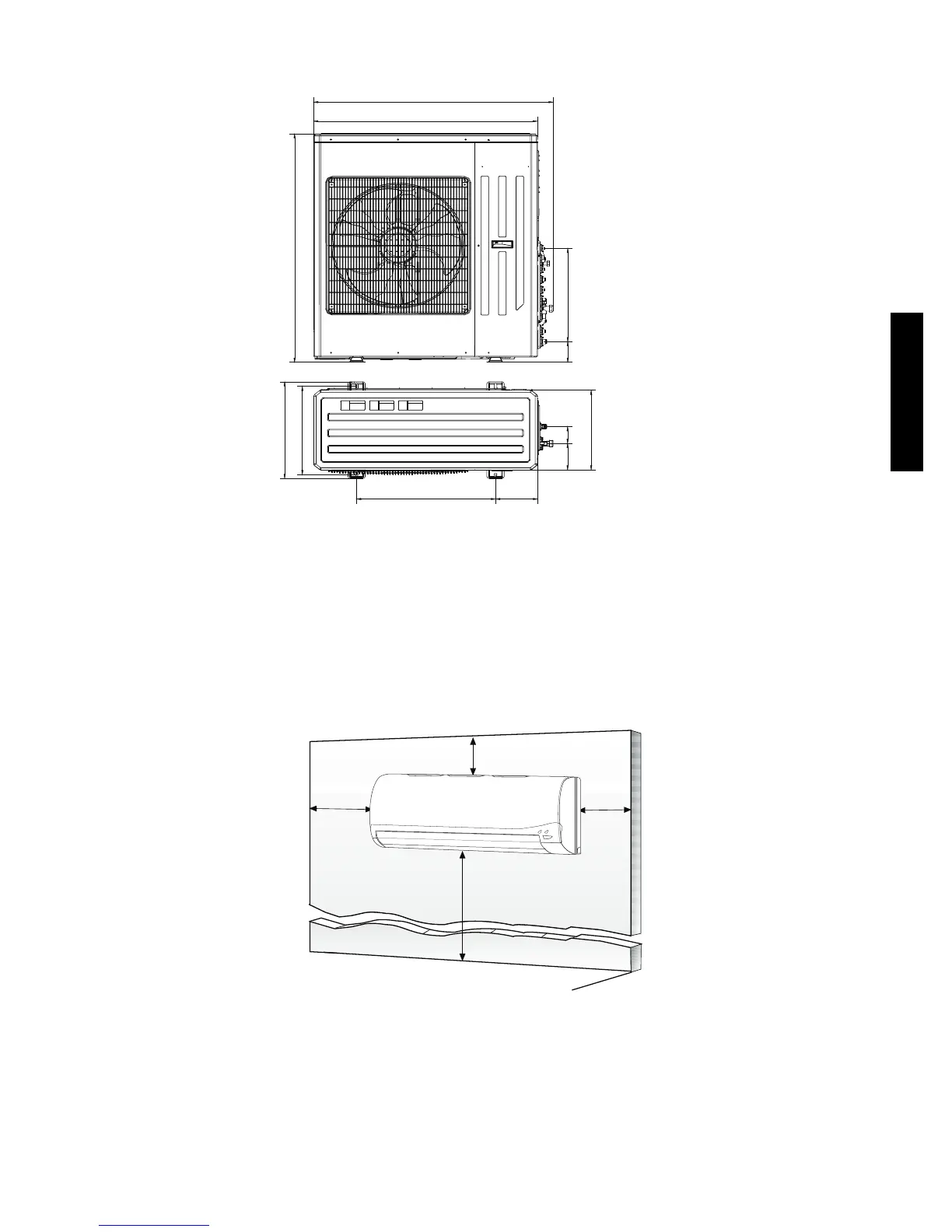

Fig. 6 --- 38GVM042
Weight, lb (kg): Gross -- 247 (112.3) / Net -- 225 (102.3)
CLEARANCES -- INDOOR
6
"
(0.15m
)
min.
5
"
(0.13m)
min.
6'
5
"
(0.13m)
min.
(1.8m)
CEILING
FLOOR
A07891
Fig. 7 --- Indoor unit clearance
