DIMENSIONS (CONT)

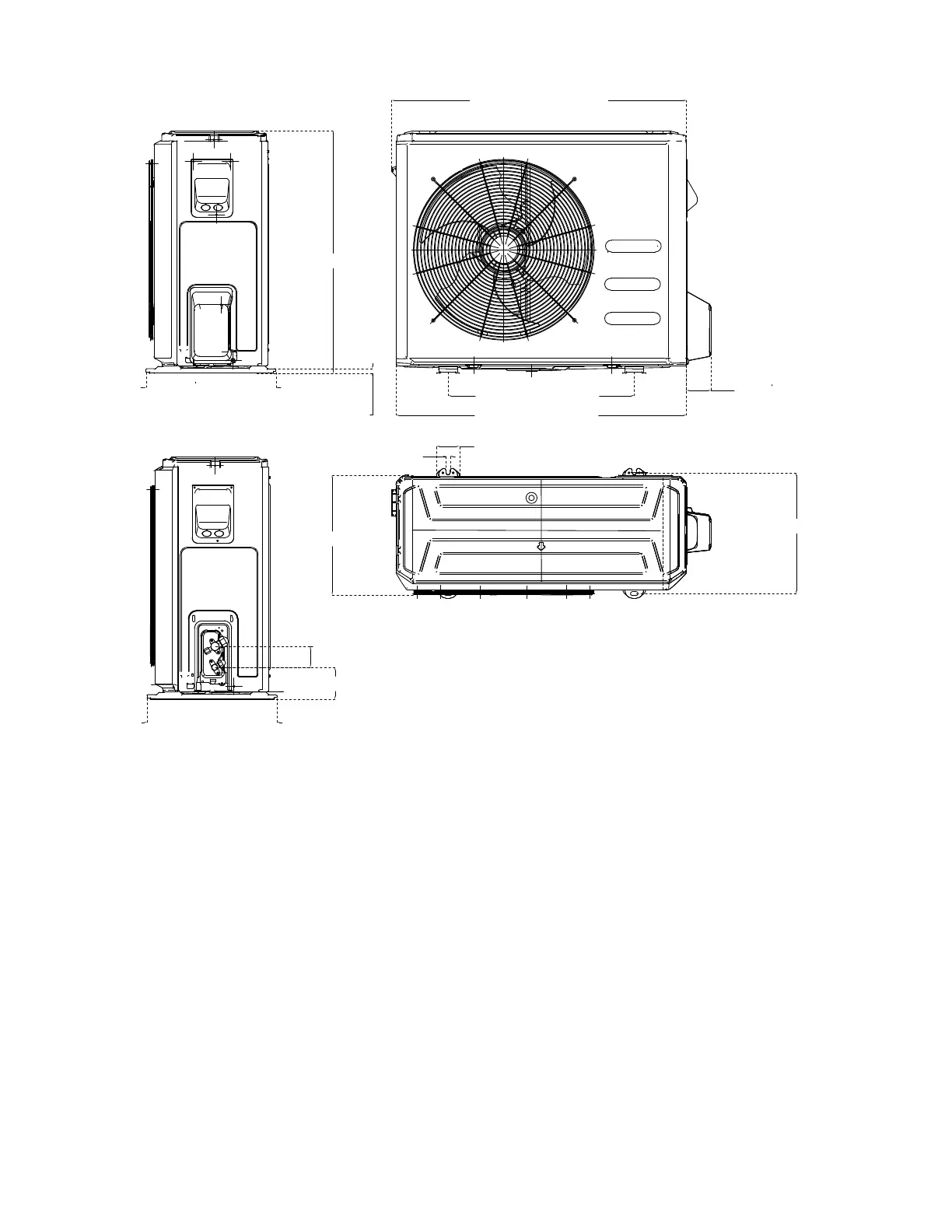

Fig. 5 — Size 18K
33.69 in (856mm)
21.28 in (540mm)
33.19 in (843mm)
2.61 in (66mm)
2.80 in (71mm)
13.80 in (351mm)
0.47 in (12mm)
0.51 in (13mm)
13.69 in (348mm)
2.39 in (61mm)
3.64 in (92mm)
14.84 in (377mm)
14.84 in (377mm)
27.68 in (703mm)
