DISASSEMBLY INSTRUCTIONS SIZE 36 (CONT)

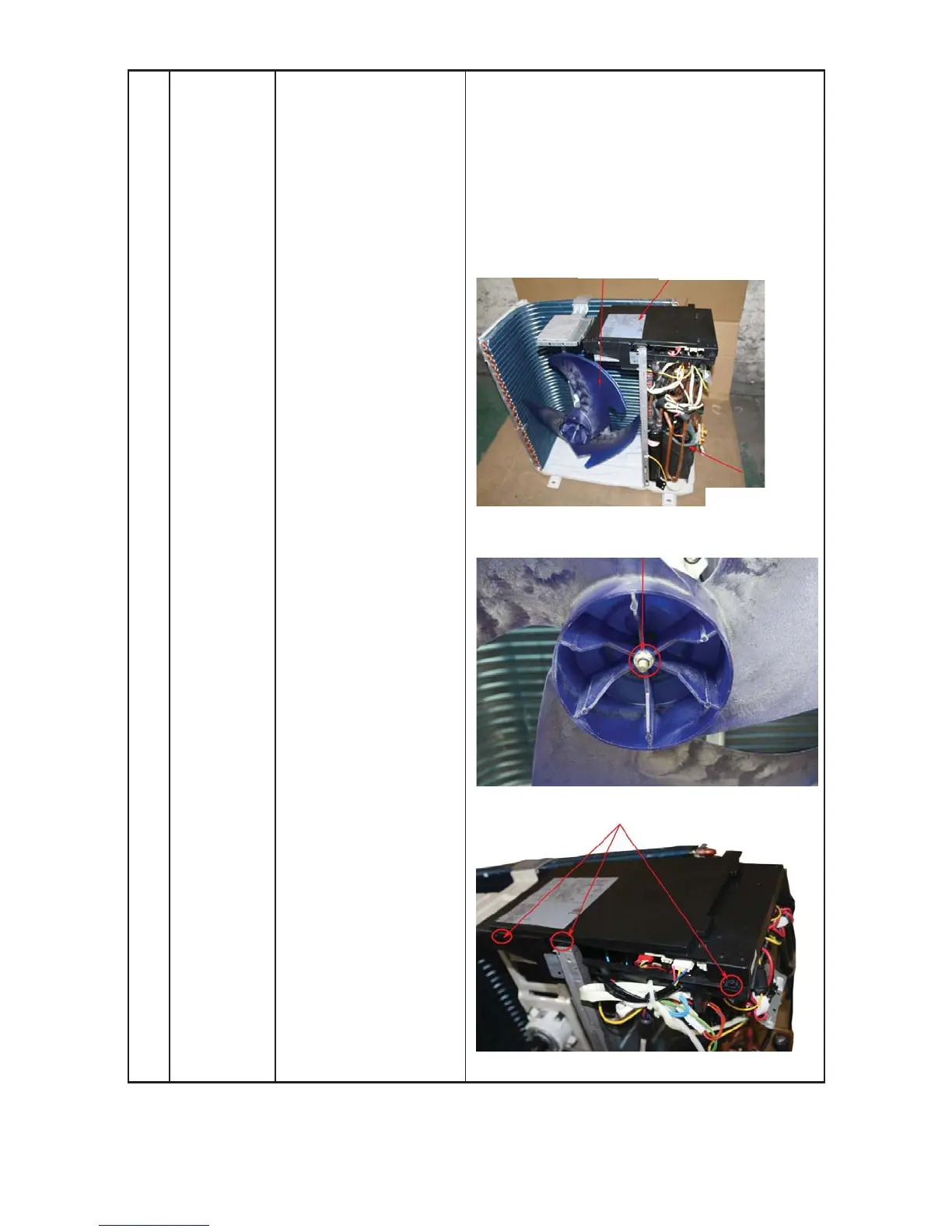

1) Use procedure 1 to
remove the panel plate.
2) Remove the nut securing
the fan, then remove the
fan.
3) Unfix the hooks and
remove the screws. Next,
open the electronic control
box cover.
ƻ
2
ƻ
3
fan
Electronic control box
compressor
How to remove the fan ass’y 2 Fan ass’y
