DISASSEMBLY INSTRUCTIONS SIZE 48 (CONT)

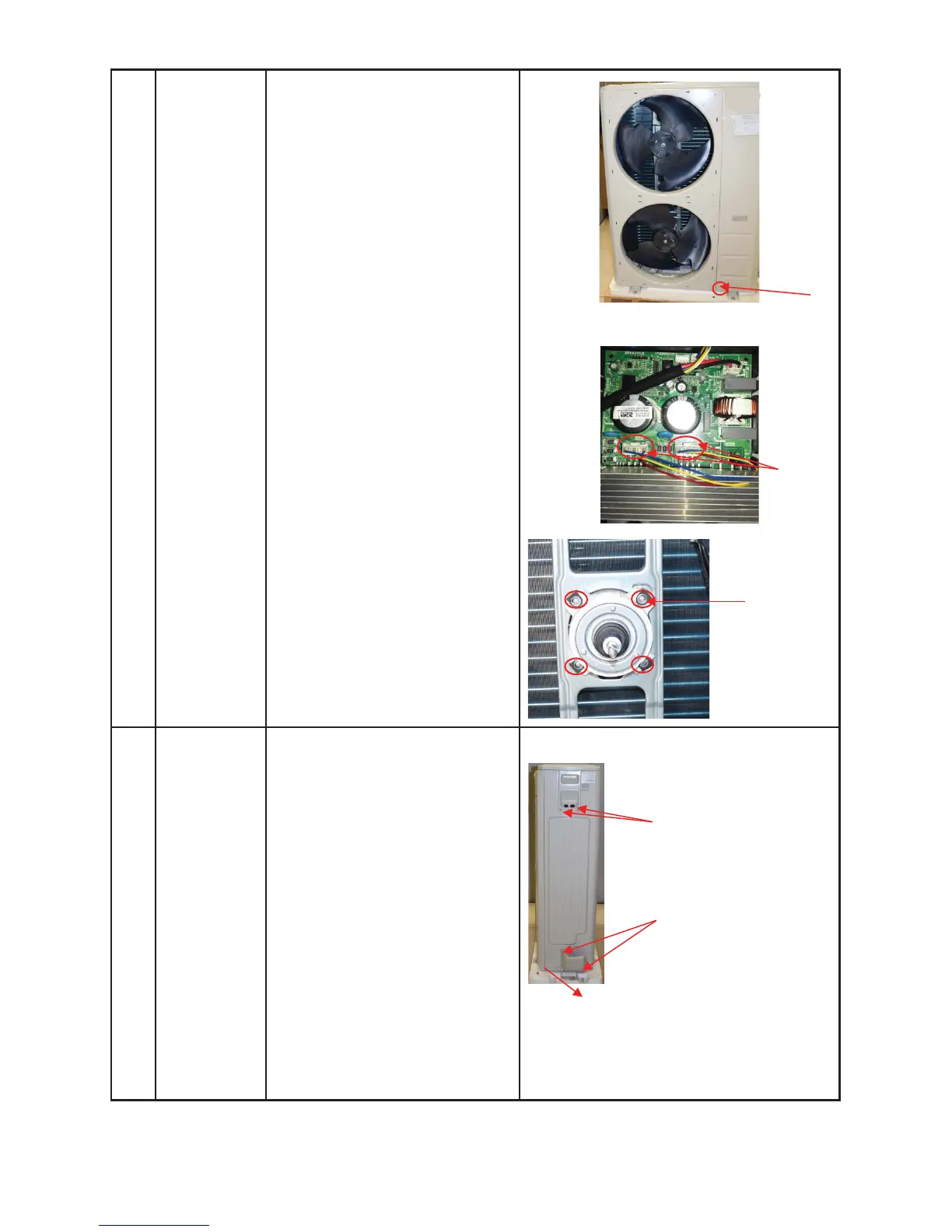

7) Disconnect the fan motor
connectors FAN (3p, white)
and FAN2 (3p, white) from
the DC motor driver board.
8) Remove the fan motor after
unfastening the securing
screws.
2 Panel plate How to remove the panel plate.
1) Remove the big handle
(2 screws) and the water
collector (2 screws).
2) Remove the terminal board
screws (2) and the right-rear
panel screws (7) and remove
the right-rear panel.
Screws of
Water collector
Screws
of big
handle
ľ
ľ
Ľ
Ľ
Screws of
right-rear panel
ļ
ļ
6) Remove the right front side
screws and the right front
side panel (1 screw).
