5
DIMENSIONS − OUTDOOR (CONT)
L1
L2

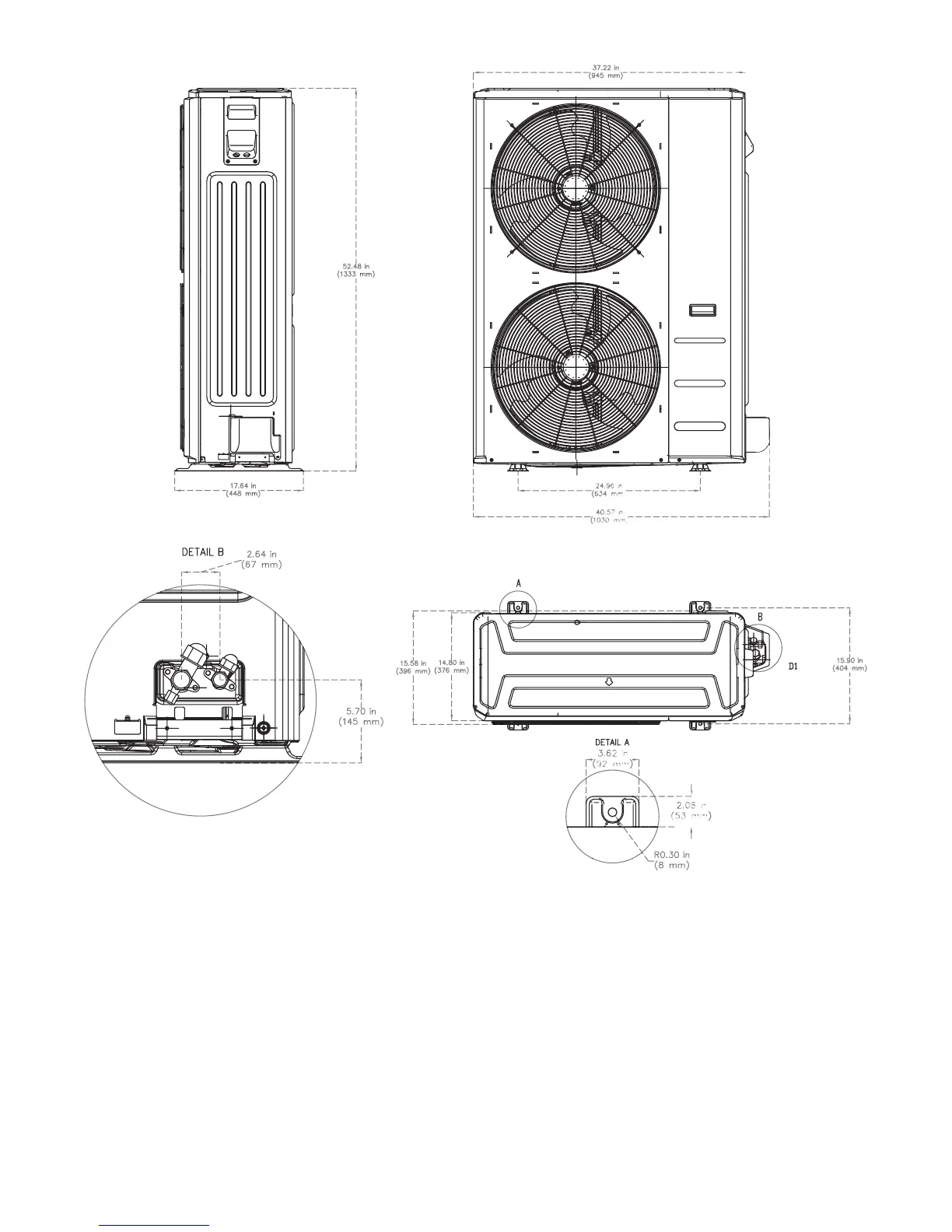

Fig. 2 – Sizes 48K
Table 4—Dimensions
UNIT SIZE WIDTH in (mm) DEPTH in (mm) HEIGHT in (mm) L1 in (mm) L2 in (mm)
OPERATING
WEIGHT lb (kg)
48K 37.22 (945) 15.58 (396) 52.48 (1333) 24.96 (634) 15.90 (404) 217.4 (98.6)
