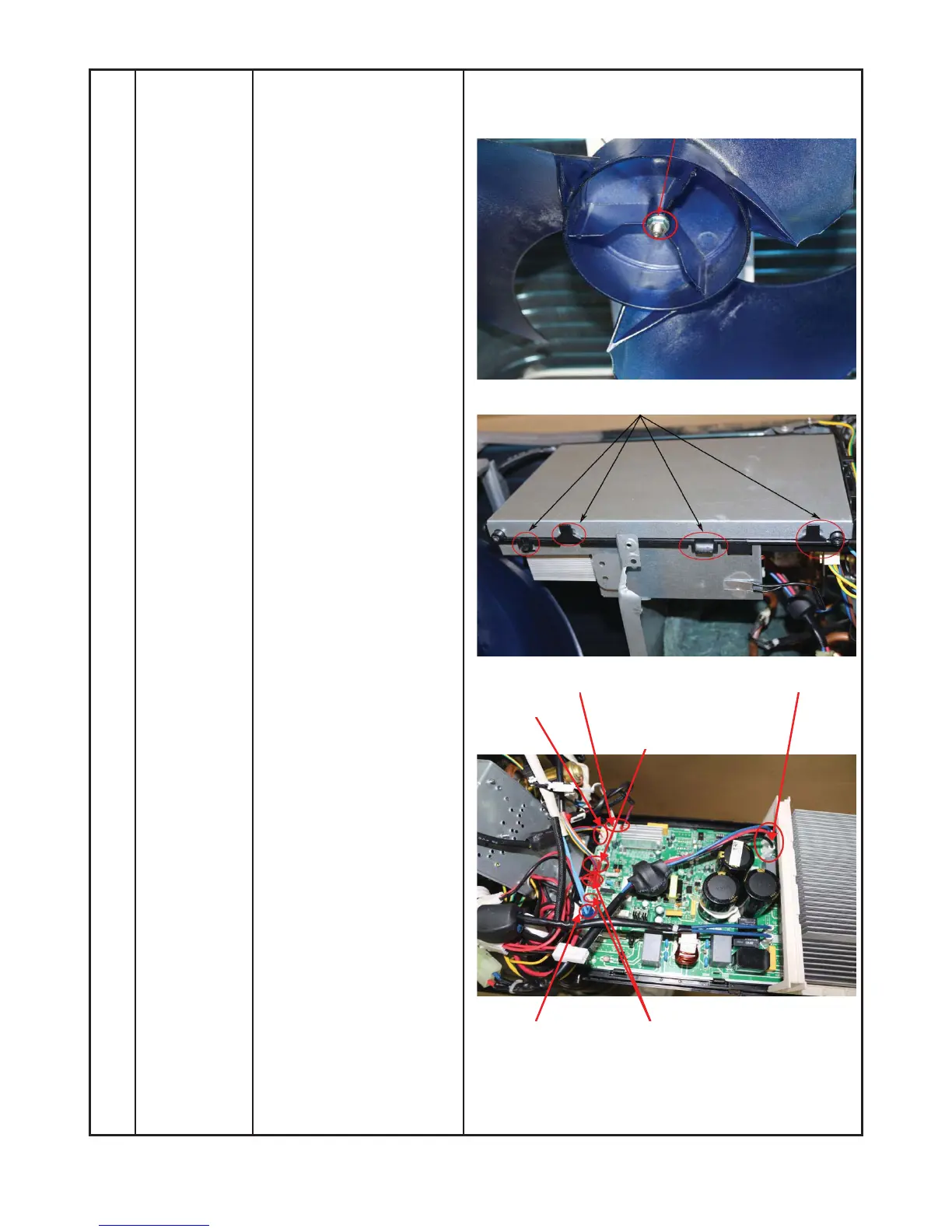

DISASSEMBLY INSTRUCTIONS SIZES 18K (208−230V) (CONT)

2 Fan

assembly

How to remove the fan

assembly.

1) After removing the

panel plate using

section 1, remove the

hex nut securing the

fan then remove the

fan.

2) After removing the top

cover, release the

hooks then open the

electronic control box

cover.

T5 sensor

Motor wire Electronic

expansion valve

Compressor wire

4 way valve wire

Electric pipe heater and Crankcase

electric heater
