Carrier 38MVC - Unit Clearances; Indoor Unit Clearances; Outdoor Unit Clearances

6

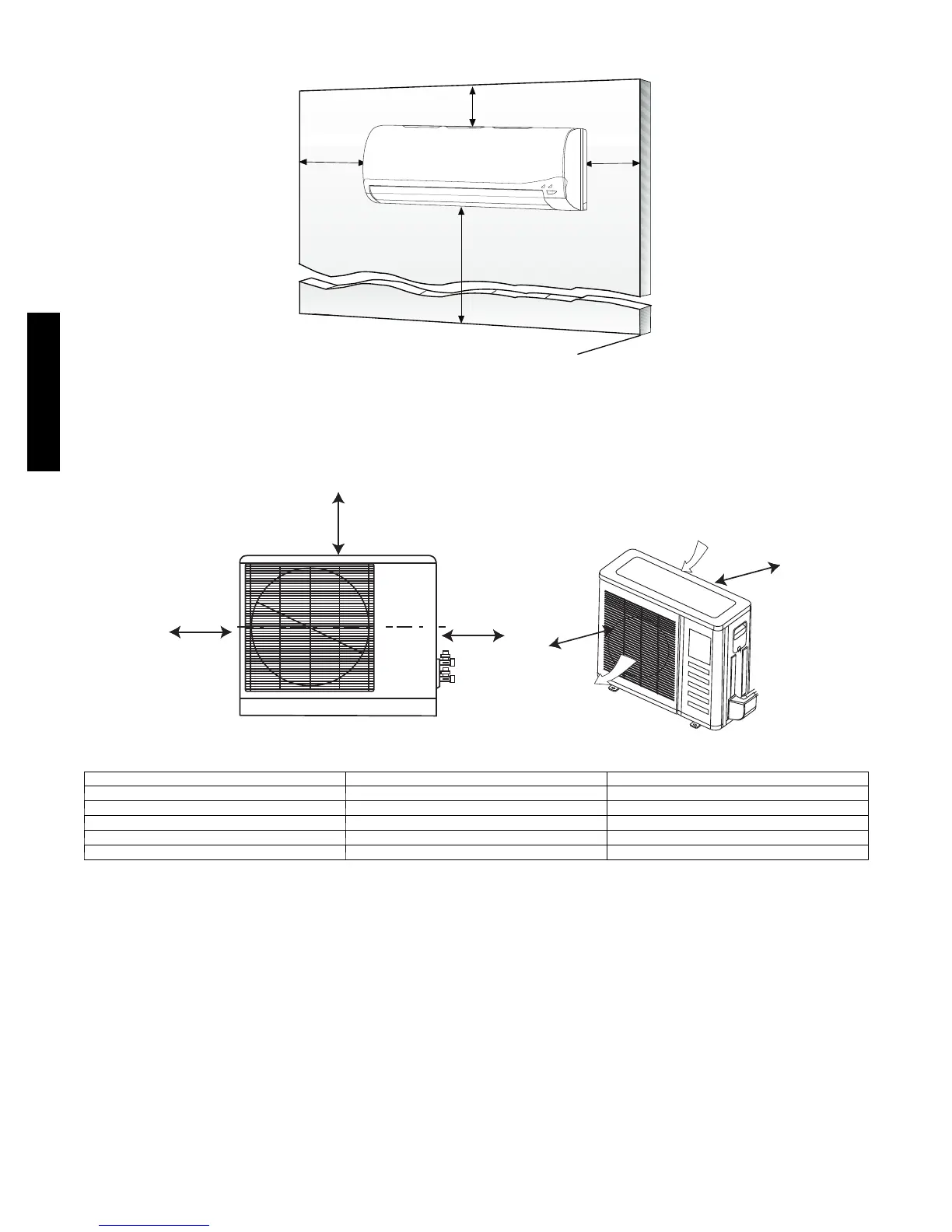

CLEARANCES -- INDOOR
6 " (0.15m ) min.
5
"
(0.13m)
min.
6'
5 "
(0.13m)
min.
(1.8m)
A07891
Fig. 2 – Indoor unit clearance
CLEARANCES -- OUTDOOR
A
D
B
Air-outlet
Air-inlet
C
E
A07894
UNIT 9k and 12k in. (mm)
18k and 24k in. (mm)
A 24 (610)
24 (610)
B 24 (610)
36 (914)
C 24 (610)
24 (610)
D 6 (152)
6 (152)
E 12 (305)
12 (305)
Fig. 3 – Outdoor Unit Clearance
38/40MVC, MVQ
