Carrier 39LA - Page 7

7
FAN OFF
TRAP CONDITION WHEN FAN STARTS
FAN RUNNING AND CONDENSATE DRAINING
DIFFERENTIAL
1
DRAIN NIPPLE
DIFFERENTIAL
2
COOLING COIL
DRAIN PAN
H

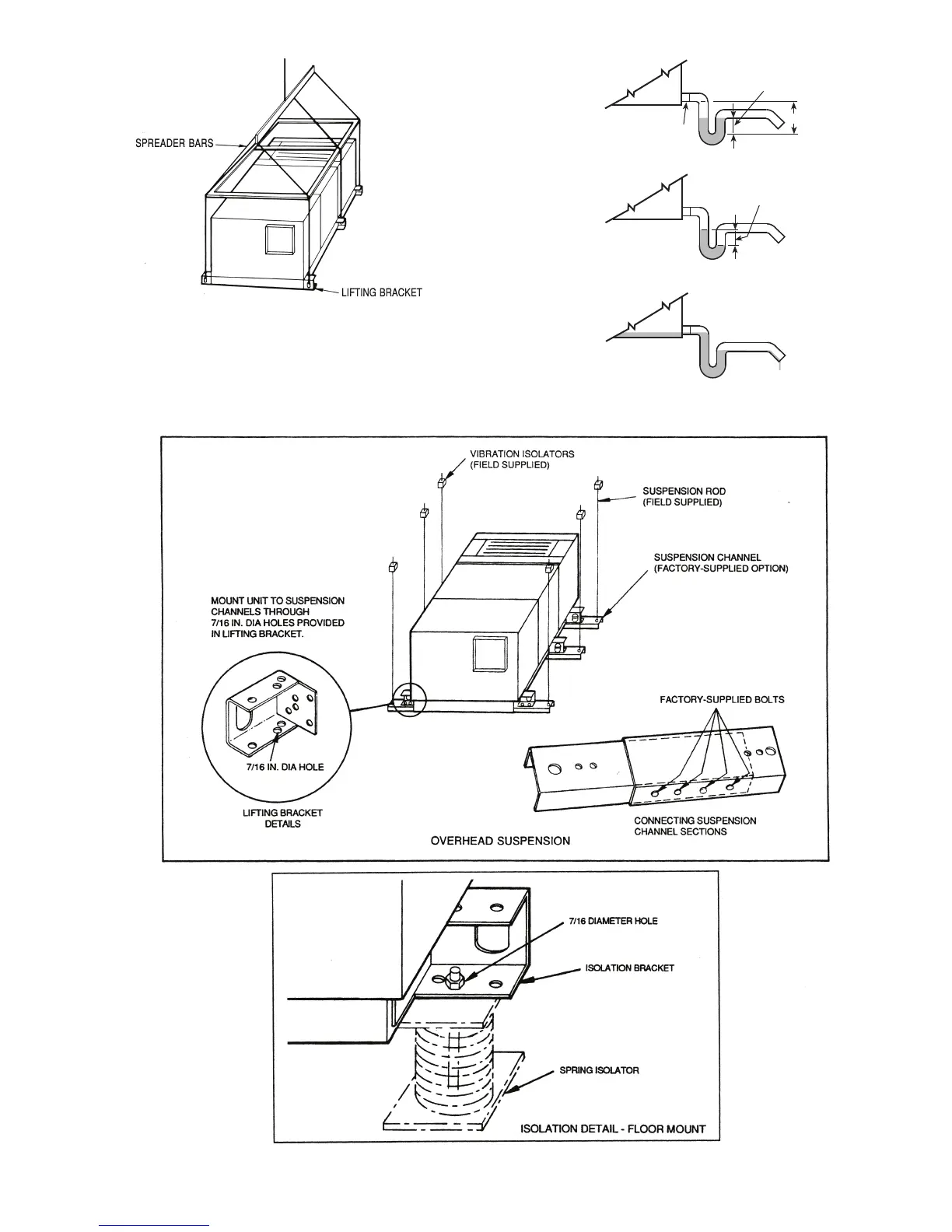

NOTE: Lift in one piece. Use slings and spreader bars at each lifting
bracket.
Fig. 5 — Unit Rigging Details
Fig. 7 — Condensate Drain
Fig. 6 — Unit Support Details
